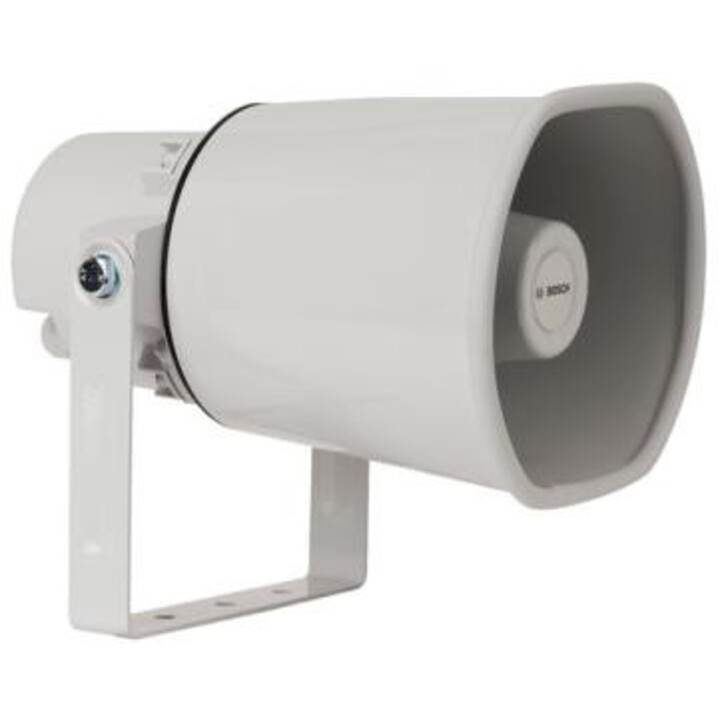

Bosch Lh1-10m10e Horn Speaker, 10w, 7x8"
- Power: 10W RMS (100V line)
- Impedance: 8 ohm (low impedance) / 100V line taps: 10W, 5W, 2.5W, 1.25W
- Frequency range: 200 Hz - 12 kHz
- Sound pressure level: 105 dB (1W/1m)
- Dimensions: 7 x 8 inches (178 x 203 mm)
Bosch Lh1-10m10e Horn Speaker, 10w, 7x8"
The Bosch LH1-10M10E is a professional horn speaker designed for clear voice reproduction in outdoor and industrial environments. With a power handling of 10W RMS on 100V line systems, it delivers a high sound pressure level of 105 dB (1W/1m), ensuring audibility over long distances. The speaker features a rugged ABS enclosure with an IP65 rating, making it resistant to dust and water jets.
This model offers multiple power taps (10W, 5W, 2.5W, 1.25W) for flexible installation, as well as low-impedance 8 ohm operation. The frequency response of 200 Hz to 12 kHz is optimized for speech intelligibility. Its compact 7x8 inch size allows for easy mounting on walls or ceilings using the included bracket. Ideal for paging, public address, and background music in warehouses, factories, parking lots, and sports facilities.
| Brand | Bosch |
| Model | LH1-10M10E |
| Type | Horn Speaker |
| Power (RMS) | 10W (100V line) |
| Impedance | 8 ohm (low impedance) / 100V line taps: 10W, 5W, 2.5W, 1.25W |
| Frequency Range | 200 Hz - 12 kHz |
| Sound Pressure Level | 105 dB (1W/1m) |
| Dimensions (W x H x D) | 7 x 8 x 6.5 inches (178 x 203 x 165 mm) |
| Weight | 1.5 kg (3.3 lbs) |
| Enclosure Material | ABS, UV-stabilized |
| Ingress Protection | IP65 |
| Color | White (RAL 9010) |
| Mounting | Wall or ceiling bracket included |
| Connector | Screw terminals |
| EAN | 8717332329649 |
