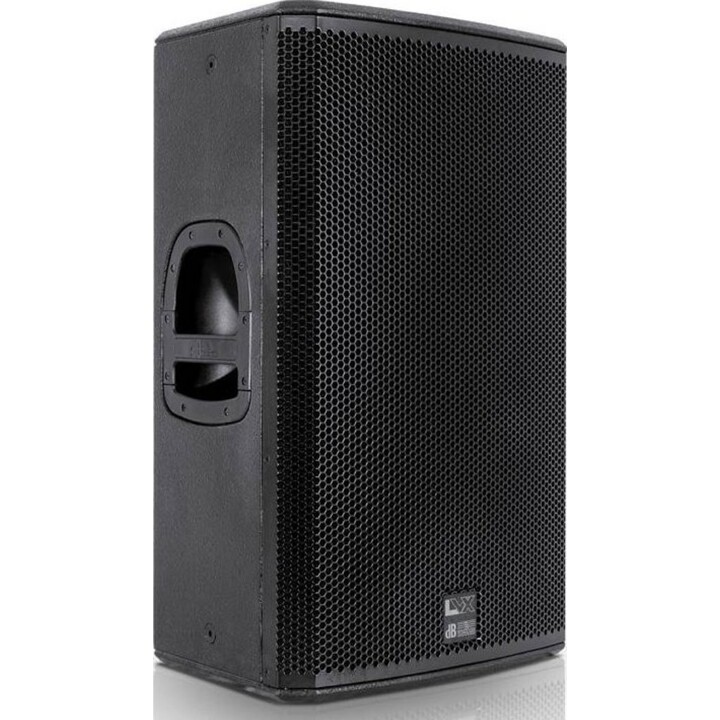

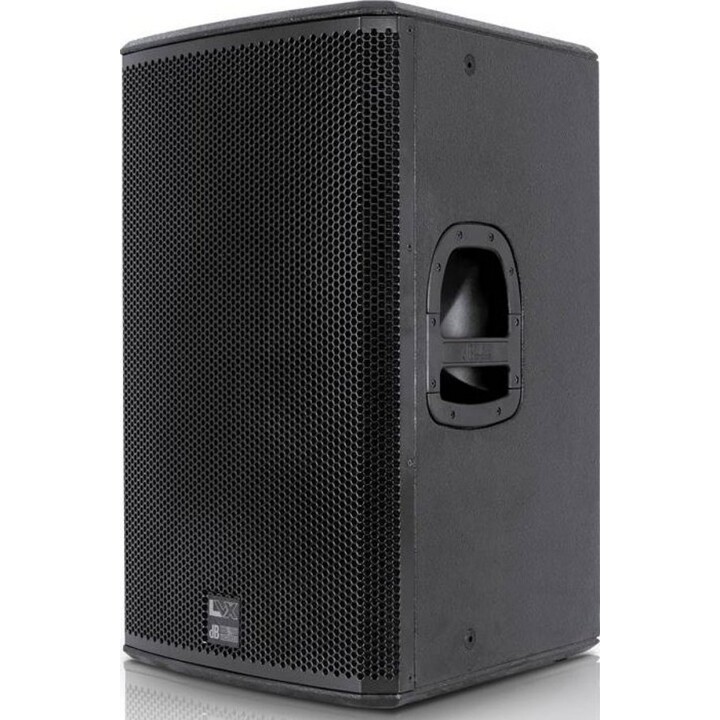

The dBTechnologies LVX-15 is a high-performance active loudspeaker designed for professional sound reinforcement. Featuring a 15" neodymium woofer and a 1" compression driver, it delivers powerful, clear audio across a wide frequency range. The built-in 700W RMS Class-D amplifier ensures efficient operation and high output, reaching a maximum SPL of 130 dB. The rotatable 90° x 60° horn allows flexible coverage patterns, making it suitable for both vertical and horizontal mounting.
Equipped with a versatile DSP section, the LVX-15 offers preset equalization curves for different applications, including music, speech, and monitor use. The lightweight plywood cabinet with a durable polyurea coating ensures portability and longevity. Connectivity includes XLR input and link output, along with a volume control and LED indicators for power and signal status. Ideal for live sound, DJ setups, and installed systems, the LVX-15 combines power, clarity, and reliability.
| Type | Active 2-way loudspeaker |
| Woofer | 15" neodymium, 2.5" voice coil |
| HF Driver | 1" neodymium compression driver, 1.4" exit |
| Amplifier | Class-D, 700W RMS / 1400W peak |
| Frequency Response | 55 Hz - 20 kHz (-10 dB) |
| Max SPL | 130 dB |
| Dispersion | 90° x 60° rotatable horn |
| Crossover | Active, 1.8 kHz |
| DSP | Presets: Music, Speech, Monitor, Sub |
| Input | XLR female |
| Output | XLR male link |
| Controls | Volume knob, DSP preset selector |
| Indicators | Power, Signal, Limit, Protect |
| Enclosure | Plywood with polyurea coating |
| Dimensions (WxHxD) | 440 x 700 x 420 mm |
| Weight | 22.5 kg |
| Brand | dBTechnologies |
|---|---|
| Country | Italy |
| Address of origin | Via Brodolini, 8, Loc. Crespellano, 40053 Valsamoggia (BO), Italy |
| EU responsible person | AEB INDUSTRIALE s.r.l. |
| Address | Via Brodolini, 8, Loc.Crespellano, 40053 Valsamoggia (BO) |
| [email protected] | |
| Phone | +39 051 96 98 70 |
