Extralink Qsfp28 Module, 100gb/s, 10km, Singlemode, LC Duplex

Extralink Qsfp28 Module, 100gb/s, 10km, Singlemode, LC Duplex

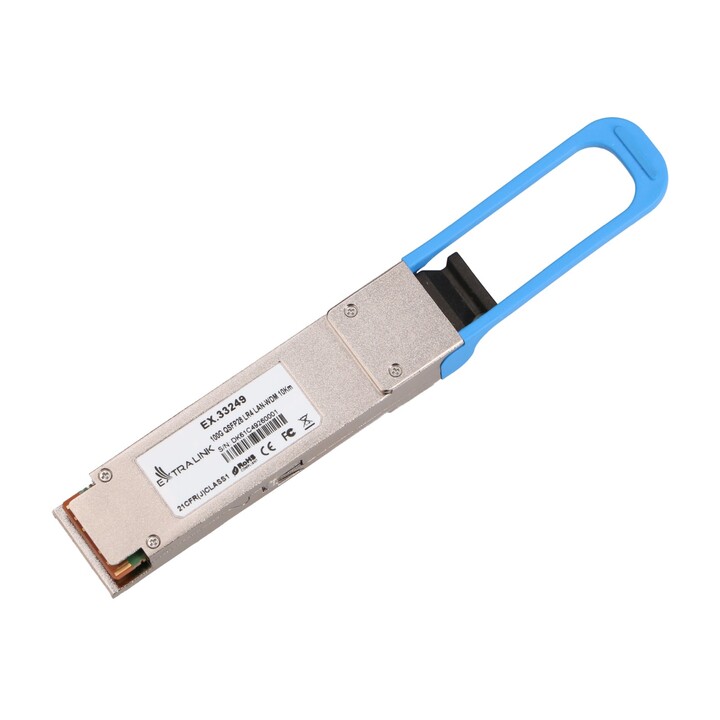

The ExtraLink EX.33249 is a high-performance QSFP28 optical transceiver module designed for 100 Gigabit Ethernet applications. It supports data rates up to 100 Gb/s using 4x25G NRZ modulation and provides a reach of 10 kilometers over standard singlemode fiber (SMF) with a 1310 nm wavelength. The module features an LC duplex connector and is compliant with IEEE 802.3bm and SFF-8665 standards, ensuring interoperability with a wide range of networking equipment.

This hot-pluggable module is engineered for low power consumption and high reliability, making it ideal for data center, enterprise networking, and telecommunications environments. It supports digital diagnostics monitoring (DDM) via I2C interface, allowing real-time access to operating parameters such as temperature, voltage, and optical power levels. The EX.33249 is a cost-effective solution for upgrading network infrastructure to 100G speeds.
