Switch 28x GE IGS-2128 4xSFP. 24xRJ45 Ports sw

Product Description

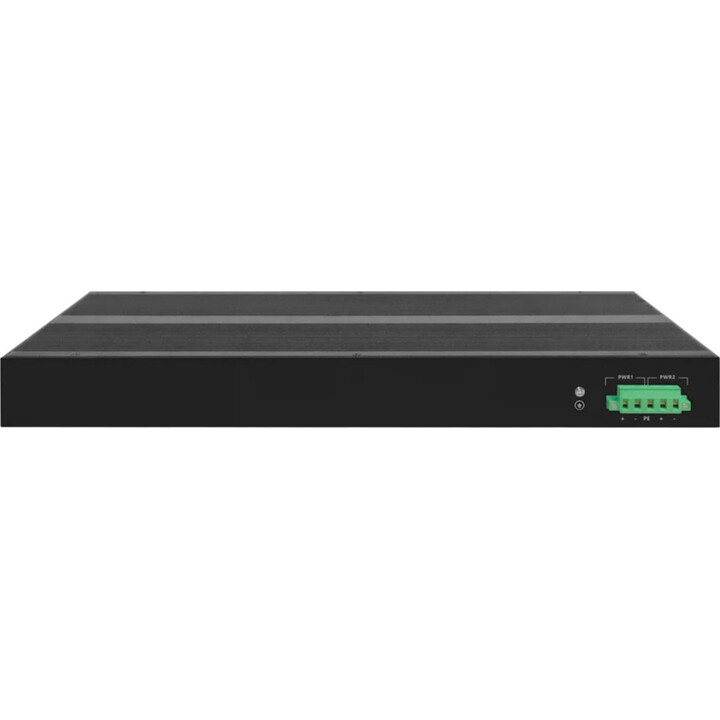

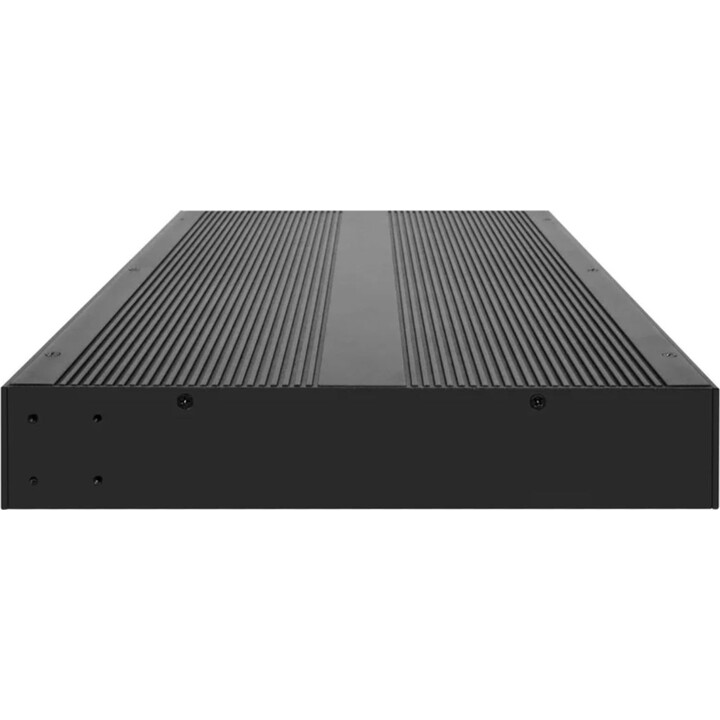

LevelOne IGS-2128 Managed L2 Gigabit Ethernet Switch (10/100/1000) Black

LevelOne IGS-2128, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack-mountable

Key Product Features

Web-based L2 management

Quality of Service (QoS) support

Number of basic Ethernet RJ-45 switching ports: 28

10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

MAC address table: 8000 entries Switching capacity: 56 Gbit/s

Rack-mountable

DC powered

Management Features

Switch type: Managed

Switching layer: L2

Quality of Service (QoS) support: Yes

Web-based management: Yes

Ports and Interfaces

Number of basic Ethernet RJ-45 switching ports: 28

Basic Ethernet RJ-45 switching ports: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper), number of ports: 24

Combo SFP ports: 4

Connectivity

Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support: No

Ethernet copper wiring technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X

Port mirroring: Yes

Full duplex: Yes

Flow control support: Yes

Link aggregation: Yes

Storm control: Yes

Rate limiting: Yes

MAC address auto-learning support: Yes

MAC address auto-aging support: Yes

Virtual LAN (VLAN) support: Yes

Virtual LAN features: Port-based VLAN, Tagged VLAN

Number of VLANs: 32

Data Transmission

Switching capacity: 56 Gbit/s

MAC address table: 8000 entries

Jumbo frame support: Yes

Jumbo Frames: 9000

Packet buffer: 4.1 MB

Security

IGMP: Yes

Queue scheduling algorithms: Priority Queue (PQ)

Multicast Functions

Multicast support: Yes

Design

Rack mountable: Yes

Product color: Black

LED indicators: Power, Link, Activity

International Protection (IP) code: IP30

Performance

Flash memory: 2 MB

Noise level: 0 dB

Fanless: Yes

Mean time between failures: 43,800 h

Power Management

Power source: DC

Power supply included: No

Redundant power supply (RPS) support: Yes

DC input voltage: 12 - 57 V

Power consumption: 20 W

Overload protection: Yes

Surge protection voltage: 4 kV

Power protection features: Surge suppressor

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operating Conditions

Operating temperature: -40 - 75°C

Storage temperature: -40 - 85 °C

Operating relative humidity range: 10 - 90%

Storage relative humidity: 5 - 95%

Heat dissipation: 68.24 BTU/h

Weight and Dimensions

Width: 440 mm

Depth: 244 mm

Height: 45 mm

Weight: 3.4 kg

Package Contents

Quick installation guide: Yes

Mounting bracket: Yes

Packaging

Terminal block included: Yes

Packaging type: Box

Package width: 510 mm

Package depth: 375 mm

Package height: 93 mm

Package weight: 4 kg

Sustainability

Sustainability compliance: Yes

Technical Details

Number of layers per pallet (floor): 16 pcs

Pallet length: 80 cm

Pallet width: 120 cm

Regulatory Approvals

Compliance certificates: CE, US Federal Communications Commission (FCC), RoHS, UKCA
