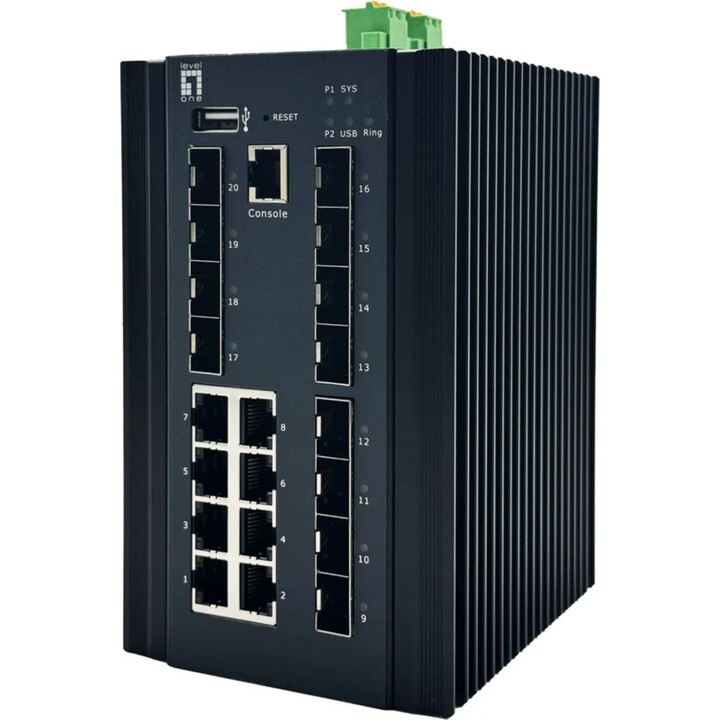

Switch 20x GE IGU-2072 8x 1GbE.8x 2.5GbE SFP sw

Product Description

LevelOne IGU-2072 Managed L2+ Gigabit Ethernet Switch (10/100/1000) Black

LevelOne IGU-2072, Managed, L2+, Gigabit Ethernet (10/100/1000)

Key Product Features

Web-based L2+ management

Quality of Service (QoS) support Location parameter configuration (CLI)

Number of basic RJ-45 Ethernet switching ports: 8 Console port: RJ-45

10G support

MAC address table: 16,000 entries Switching capacity: 52 Gbps

Access Control List (ACL)

DC power

Management Features

Switch type: Managed

Switching layer: L2+

Quality of Service (QoS) support: Yes

Web-based management: Yes

ARP inspection: Yes

Location parameter configuration (CLI): Yes

System event log: Yes

Ports and Interfaces

Number of basic RJ-45 Ethernet switching ports: 8

Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper), number of ports: 8

Number of SFP module slots: 8

Number of SFP+ module slots: 4

Number of USB Type A ports: 1

Console port: RJ-45

Connectivity

Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support: Yes

Port mirroring: Yes

Flow control support: Yes

Storm control: Yes

Rate limiting: Yes

Spanning Tree Protocol: Yes

Cable length detection: Yes

Ethernet Ring Protection Switching (ERPS): Yes

Virtual Local Area Network (VLAN) support: Yes

VLAN features: IP subnet-based VLAN, MAC address-based VLAN, protocol-based VLAN, stacked VLAN, VLAN mapping

Data Transmission

Switching capacity: 52 Gbps

MAC address table: 16,000 entries

Static routing: Yes

Jumbo frame support: Yes

Jumbo frames: 10,000

Packet buffer: 12 MB

Security

DHCP features: DHCP server

Access Control List (ACL): Yes

IGMP: Yes

Supported security algorithms: HTTPS

MAC address filtering: Yes

Loop protection: Yes

IP-MAC binding: Yes

Password protection: Yes

Authentication type: IEEE 802.1x

Queue scheduling algorithms: SP, Weighted Round Robin (WRR)

Multicast Features

Multicast support: Yes

Protocols

GARP VLAN Registration Protocol (GVRP): Yes

IP Source Guard (IPSG): Yes

Design

Stackable: No

Product color: Black

LED indicators: Power, alarm, system, USB

IP rating (International Protection): IP40

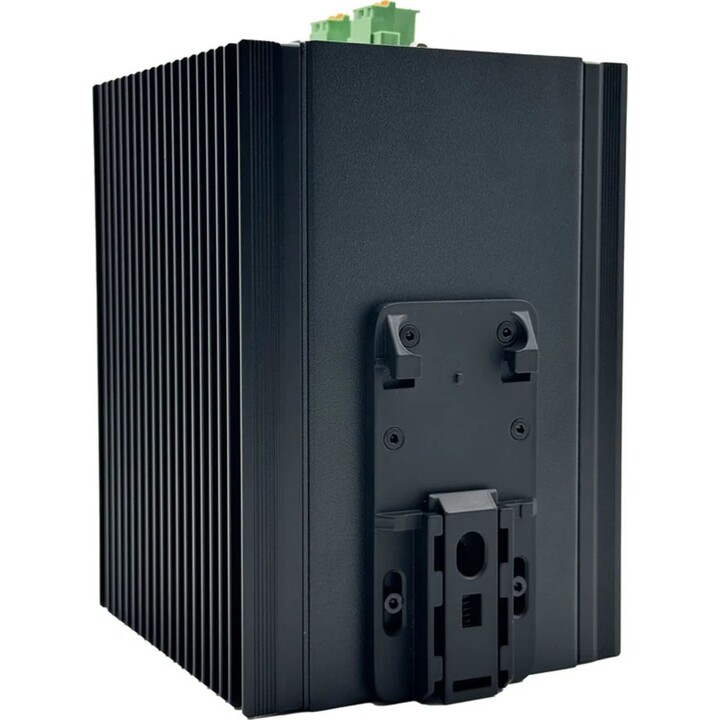

DIN rail mounting: Yes

Performance

Firmware upgrade: Yes

Telnet: Yes

Last call: Yes

Fanless: Yes

Mean time between failures: 200,000 h

Power Control

Power supply: DC

Redundant power supply (RPS) support: Yes

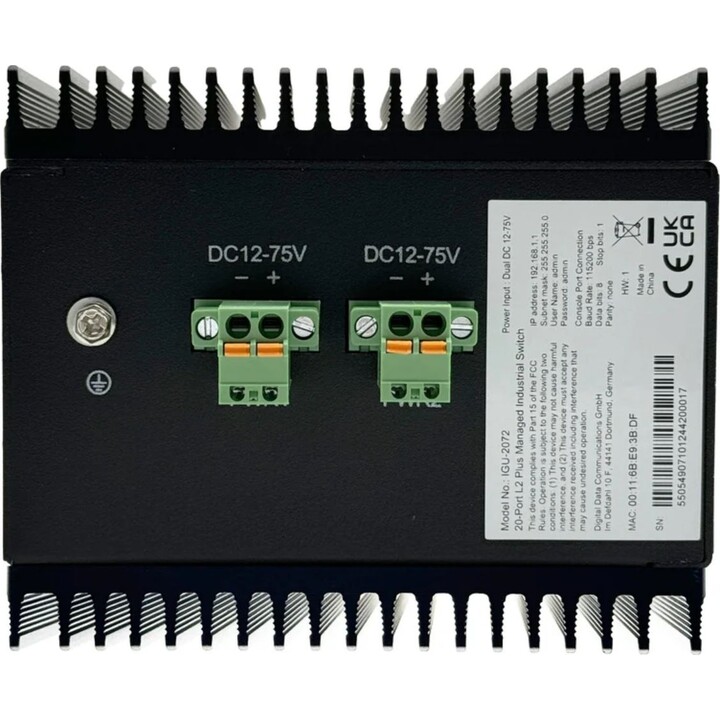

Input voltage: 12 - 75 V

Maximum power consumption: 25 W

Overload protection: Yes

Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Other Features

Terminal block port: Yes

Operating Conditions

Operating temperature: -40 - 80 °C

Storage temperature: -40 - 85 °C

Operating relative humidity range: 10 - 90%

Storage relative humidity: 5 - 95%

Weight and Dimensions

Width: 110 mm

Depth: 115 mm

Height: 158 mm

Weight: 1.79 kg
