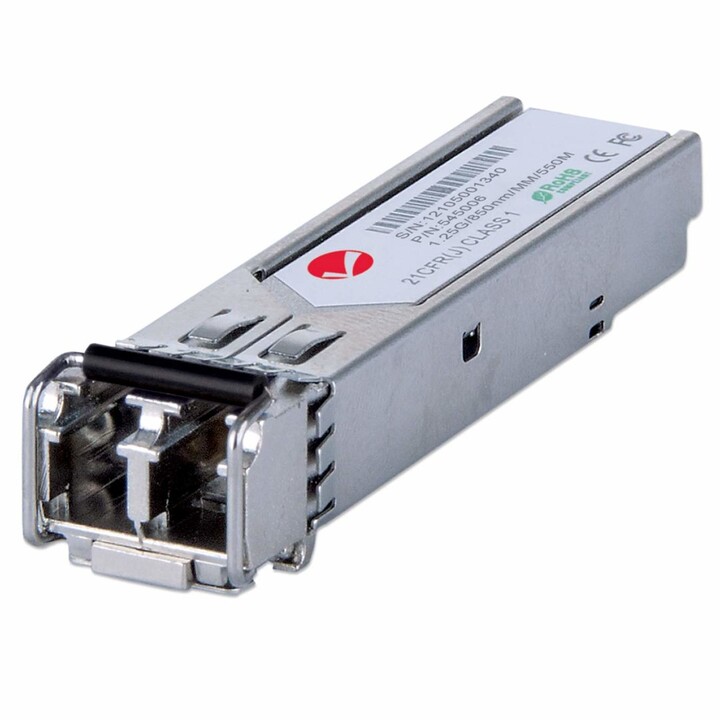

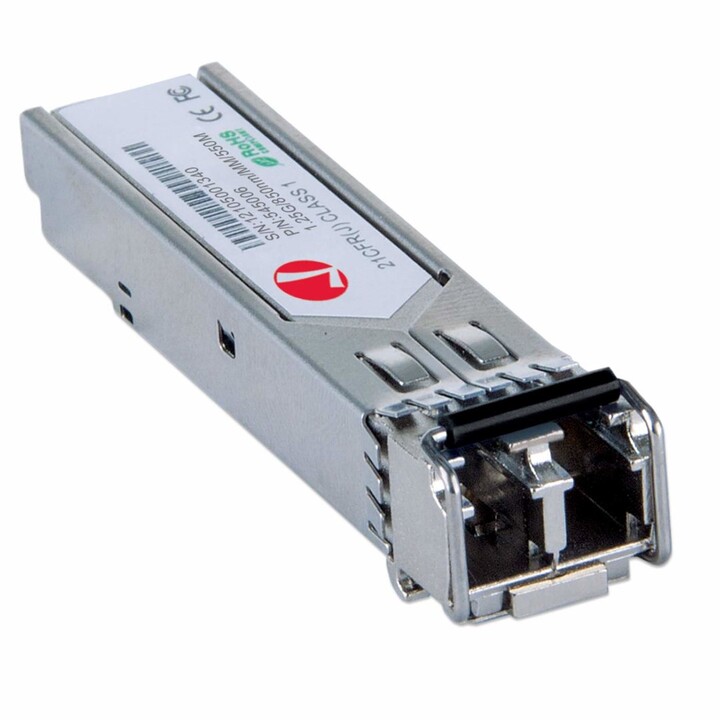

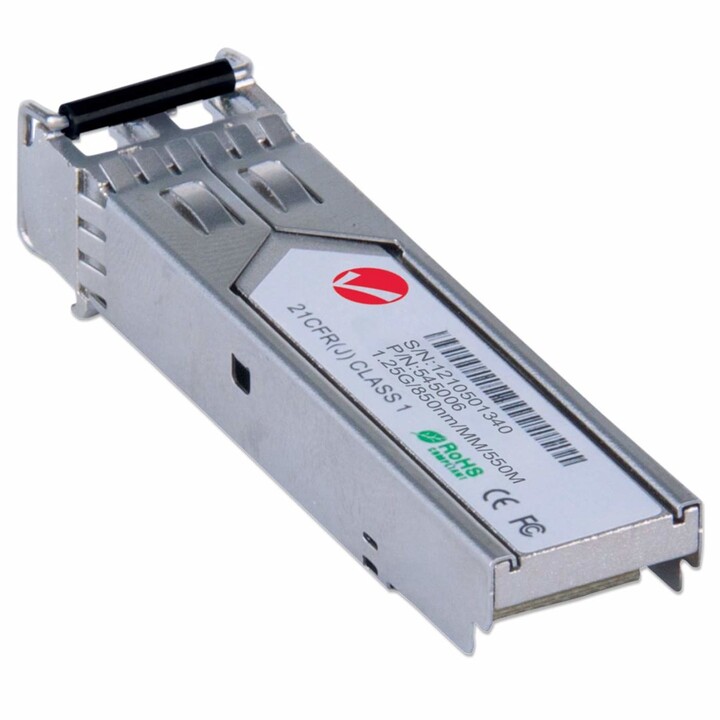

Intellinet Gigabit Fiber Optic SFP Transceiver Module
Reference:
545006
EAN:
0766623545006
Condition:
New
Price:
€20.68
VAT included
Without tax:
€17.10
The Intellinet Gigabit Fiber Optic SFP Transceiver Module offers high-speed 1000 Mbit/s data transfer with IEEE 802.3z compliance. Featuring an optical fiber SFP type, LC connector, and multi-mode fiber compatibility, it supports distances up to 550 meters. Designed for reliable performance with hot-plug compatibility, aluminum casing, and low energy consumption of 1W at 3.3V input voltage.
Regulatory approvals
Certification
FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA
Environmental conditions
Relative humidity range for operation
5 - 95%
Operating temperature range
0 - 70 °C
Storage temperature range
-40 - 85 °C
Characteristics
Product color
Aluminum
Hot-Plug Compatibility
Yeah
Package contents
Quantity per package
1 piece(s)
Performance
Network standards
IEEE 802.3z
Maximum data transfer rate
1000 Mbit/s
Budget link
8 dB
Tx Power (max.)
-3 dBmW
Ethernet cabling fiber technology
1000BASE
Duplex system
Complete
SFP Transceiver Type
Optical fiber
Ethernet interface type
Gigabit Ethernet
Supported cable fiber diameters
62.5/125 ?m, 50/125
Multi-mode fiber (MMF) compatible
Yeah
Fiber optic connector
LC
Maximum transfer distance
550 m
Tx Power (min)
-8 dBmW
Interface type
SFP
Wavelength
850 nm
Weight and dimensions
Broad
13 mm
Depth
55 mm
Height
12 mm
Weight
15 g
Energy control
Energy consumption
1 W
Input voltage
3.3 V
-
Brand
-
Reference545006
-
In stock5 Items
-
ConditionNew
-
EAN130766623545006
-
MPN545006
| Brand | Intellinet |
|---|---|
| Country | Germany |
| Address of origin | Löhbacher Str. 7, 58553 Halver |
| EU responsible person | Intellinet Network Solutions |
| Address | Löhbacher Str. 7, 58553 Halver |
| [email protected] | |
| Phone | +49 (0) 2353 / 7007-0 |
