At-splx10a Network

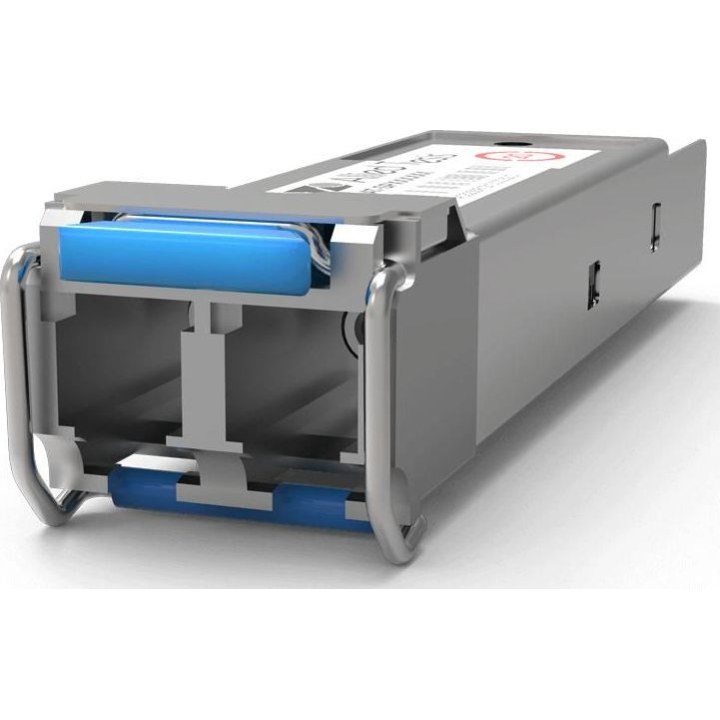

The Allied Telesis AT-SPLX10A is an SFP optical transceiver designed for reliable 1000 Mbit/s data transfer over single-mode fiber (SMF). It uses an LC optical connector and operates at a wavelength of 1310 nm, supporting a maximum transfer distance of up to 10,000 m (10 km). This makes it suitable for network segments that require stable, medium-range fiber connectivity.

Built with a silver metal housing, the AT-SPLX10A is engineered for durability and efficient heat dissipation. It supports hot-swap and Plug and Play, allowing installation or replacement without powering down the host device. The transceiver operates within a temperature range of 0 °C to 70 °C, making it appropriate for typical indoor networking environments.

Each package contains one AT-SPLX10A transceiver. The product is classified under Harmonized System code 85369010. Whether you are expanding an existing fiber network or setting up a new link, this SFP module provides a straightforward solution for 1000 Mbit/s single-mode fiber connections.

Características principales

• SFP transceiver type: Optical fiber
• Maximum data transfer rate: 1000 Mbit/s
• Interface type: SFP
• Single-mode fiber (SMF) compatible: Yes
• Multi-mode fiber (MMF) compatible: No
• Optical fiber connector: LC
• Maximum transfer distance: 10,000 m
• Wavelength: 1310 nm
• Tx power (min): -9 dBmW
• Tx power (max): -3 dBmW
• Product color: Silver
• Housing material: Metal
• Plug and Play: Yes
• Hot-swap: Yes
• Operating temperature range: 0 - 70 °C
• Quantity per package: 1 piece(s)
• Harmonized System (HS) code: 85369010

Especificaciones técnicas

Preguntas frecuentes

What type of fiber is compatible with the AT-SPLX10A?

The AT-SPLX10A is compatible with single-mode fiber (SMF). It is not compatible with multi-mode fiber (MMF).

What is the maximum distance supported?

The maximum transfer distance is 10,000 meters (10 km) over single-mode fiber.

Does this transceiver support hot-swap?

Yes, the AT-SPLX10A supports hot-swap, allowing you to replace it without shutting down the system.

What is the operating temperature range?

The operating temperature range is 0 °C to 70 °C.

Es para ti si...

• Necesitas un transceptor SFP para fibra óptica monomodo a 1000 Mbit/s.
• Requieres una distancia de hasta 10 km con conector LC y longitud de onda de 1310 nm.
• Valoras la función hot-swap y Plug and Play para un mantenimiento sencillo.
• Buscas una carcasa metálica de color plata para una mayor durabilidad.
