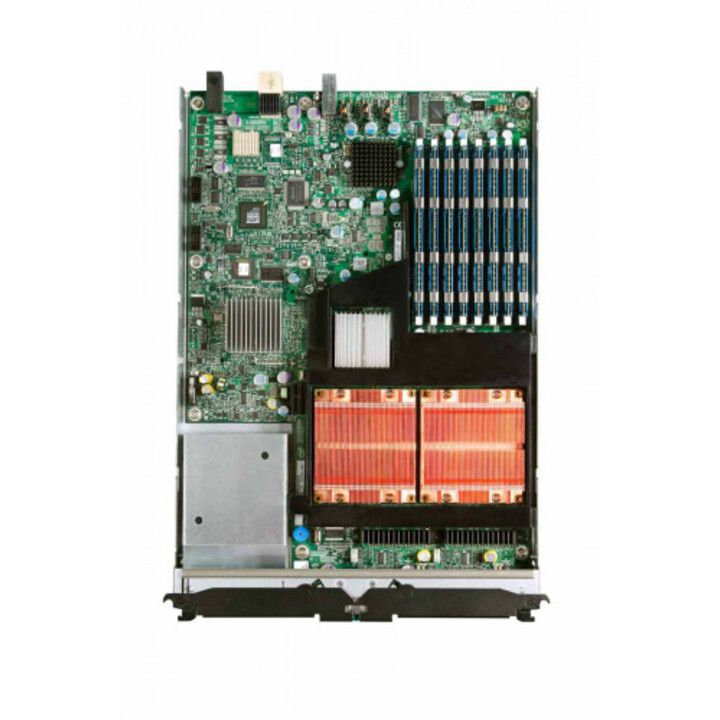

Intel Mfs5000si Barebone Server Intel® 5000p Rack (1u)

(LAST UNITS) INTEL SERVER SYSTEM SERVER MODULE MFS5000SI 892778 (FOR MFSYS25)

Specifications:

- Chipset: Intel® 5000P
- ECC supported by the processor: Yes
- FSB processor, support: 1333 MHz
- Number of DIMM slots: 8
- supported memory types: DDR-SDRAM
- Maximum internal memory: 32GB
- ECC: Yes
- Memory channels: 2
- Ethernet LAN ports (RJ-45): 2
- Number of USB ports: 2
- USB version: 2.0
- Graphic production: Front Panel 15-pin
- Thermal Design Power (TDP): 80 W
- LAN Controller: Intel® 82563EB
- Ethernet: Yes
- Ethernet interface type: Gigabit Ethernet
- Storage controller: LSI SAS1064E
- Software included: Intel Modular Server Control,\nIntel System Management Software 2.0
- x8 PCI Express slots: 1
- CPU configuration (maximum): 2
- Built-in graphics adapter: Yes
- Product type: Server/Workstation Board
- Expected interruption date: Q2'10
- Release date: Q4'08
- Maximum memory: 31.25 GB
- Product family: Intel compute module
- Product series: Intel MFS5000SI
- Product code name: Sauvie Island
- Graphic adapter: ES1000
- Status: Discontinued
- Chassis type: Rack (1U)
- Maximum memory of graphics adapter: 16 MB
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G135162
- Harmonization System Code (SA): 8473301180
-ARK ID: 48000
- Integrated options available: No
