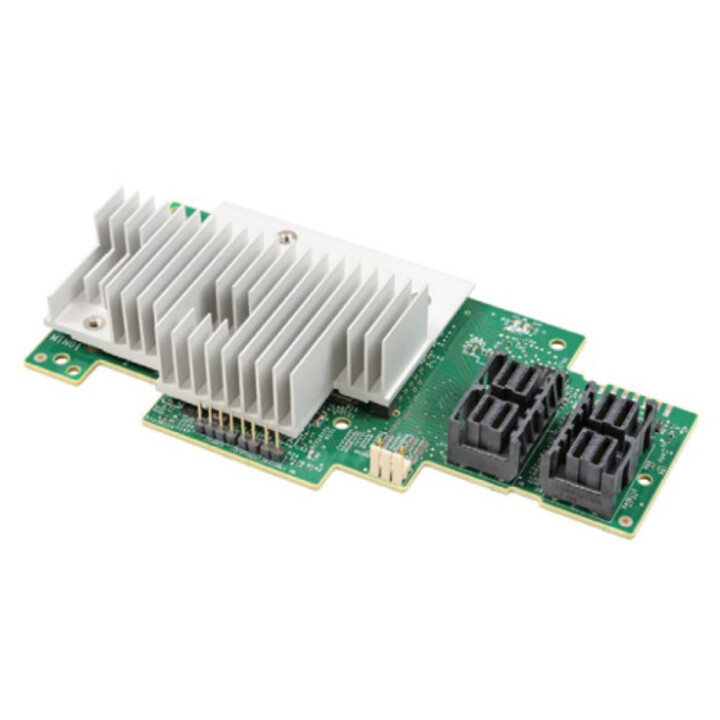

Intel Integrated Raid Module Rms3vc160 946902 , Single
Intel Integrated Raid Module Rms3vc160 946902 , Single
The Intel Integrated RAID Module RMS3VC160 is a high-performance RAID controller designed for enterprise servers and storage systems. It features a PCI Express 3.0 x8 interface, delivering up to 12 Gbit/s per port for SAS and SATA drives. This module supports a wide range of RAID levels including 0, 1, 10, 5, 6, 50, and 60, providing flexibility for data protection and performance optimization. With two SFF-8643 internal connectors, it offers eight internal ports for direct connection to drives or backplanes.
Built on the Intel RAID architecture, the RMS3VC160 includes advanced features such as online capacity expansion, RAID level migration, and patrol read for data integrity. It is compatible with Intel server boards and systems, making it an ideal choice for building reliable and scalable storage solutions. The low-profile form factor allows installation in space-constrained environments without compromising performance.
| Brand | Intel |
| Model | RMS3VC160 |
| Form Factor | Low Profile MD2 |
| Interface | PCI Express 3.0 x8 |
| Data Transfer Rate | 12 Gbit/s per port |
| Supported Drives | SAS (12/6/3 Gbit/s) and SATA (6/3 Gbit/s) |
| RAID Levels | 0, 1, 10, 5, 6, 50, 60 |
| Internal Connectors | 2 x SFF-8643 (8 ports) |
| Cache Memory | 1 GB DDR3 |
| Operating Temperature | 0°C to 55°C |
| Compatibility | Intel Server Boards and Systems |
-
Brand
-
ReferenceRMS3VC160
-
In stock3 Items
-
ConditionNew
-
EAN130735858308595
-
MPNRMS3VC160
| Brand | INTEL |
|---|---|
| Country | USA |
| Address of origin | 2200 Mission College Blvd., Santa Clara, CA 95052 |
| EU responsible person | Intel Corporation |
| Address | Am Campeon 10-12, Neubiberg, Germany, 85579 |
| [email protected] | |
| Phone | 498999140 |
