ZE-500 Electromagnetic Lock
- Holding force: 500kg (1100 lbs)
- Dual voltage: 12V DC / 24V DC
- Current draw: 500mA @ 12V, 250mA @ 24V
- LED status indicator (red/green)
- Dimensions: 250 x 48 x 28 mm (lock body)

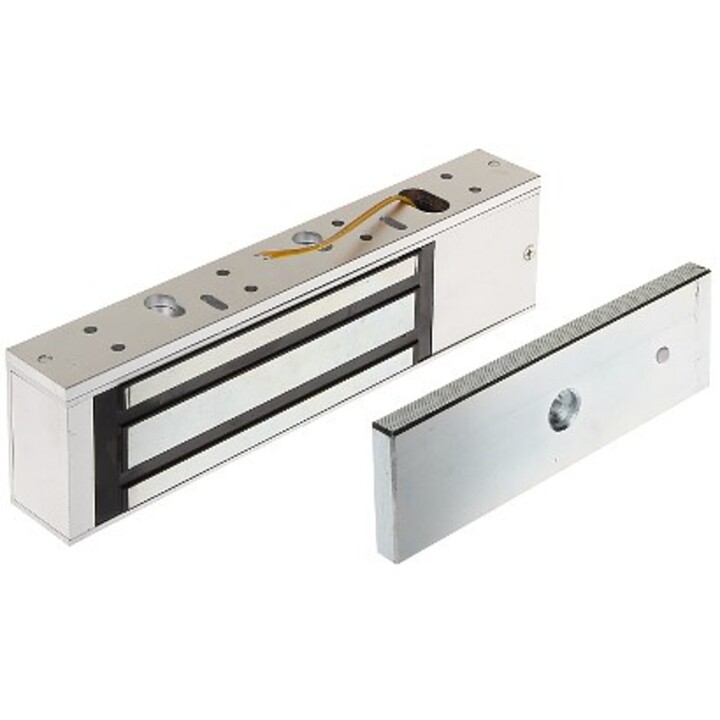

ZE-500 Electromagnetic Lock
The INNE ZE-500 is a high-performance electromagnetic lock designed for secure access control in commercial and industrial applications. With a holding force of 500kg (1100 lbs), it provides reliable door security for single doors, glass doors, and emergency exits. The lock features dual voltage operation (12V/24V DC) and includes a built-in LED indicator for quick status verification.
Constructed with a robust zinc alloy housing and a stainless steel armature plate, the ZE-500 ensures durability and resistance to tampering. The lock supports fail-safe operation (power-to-lock) and includes surge protection for long-term reliability. Easy to install with included mounting brackets, it is compatible with most access control systems and door types.
| Holding Force | 500 kg (1100 lbs) |
| Voltage | 12V DC / 24V DC (selectable) |
| Current Draw | 500mA @ 12V, 250mA @ 24V |
| LED Indicator | Red (locked), Green (unlocked) |
| Lock Body Dimensions | 250 x 48 x 28 mm |
| Armature Plate Dimensions | 185 x 38 x 11 mm |
| Material | Zinc alloy (lock), Stainless steel (armature) |
| Operation | Fail-safe (power-to-lock) |
| Surge Protection | Yes |
| Operating Temperature | -10°C to +55°C |
| Certifications | CE, RoHS |
-
Brand
-
ReferenceZE-500
-
In stock13 Items
-
ConditionNew
-
EAN135902887013331
-
MPNZE-500
| Brand | INNE |
|---|---|
| Country | Poland |
| Address of origin | Dipol Sp.j., ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| EU responsible person | Dipol Sp.j. |
| Address | ul. Ciepłownicza 40, 31-587 Kraków, Poland |
| [email protected] | |
| Phone | +48 12 644 29 13 |
