DT-1200AZ Electromagnetic Lock

Reference: DT-1200AZ
EAN: 5902887074189
Condition: New
Price: €129.05
VAT included
€104.92 Without tax
  • Holding Force: 1200lbs (600kg)
  • Voltage: 12V/24V DC selectable
  • Current: 500mA @ 12V, 250mA @ 24V
  • Material: Zinc alloy body with stainless steel armature
  • LED Status Indicator: Red (locked) / Green (unlocked)

Buy it now and receive it between Monday 7 December and Friday 11 December with GLS o Correos Express España €20.23

from €23.51 shipping

Product availability: In stock
Share
Spotted a mistake on this page? Tell us

Tell us what is wrong and we will check it. No details needed.

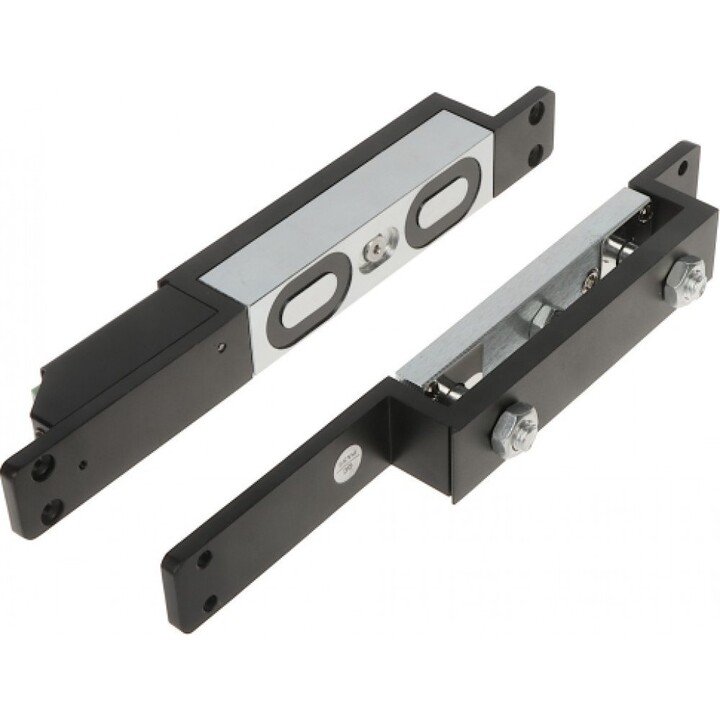

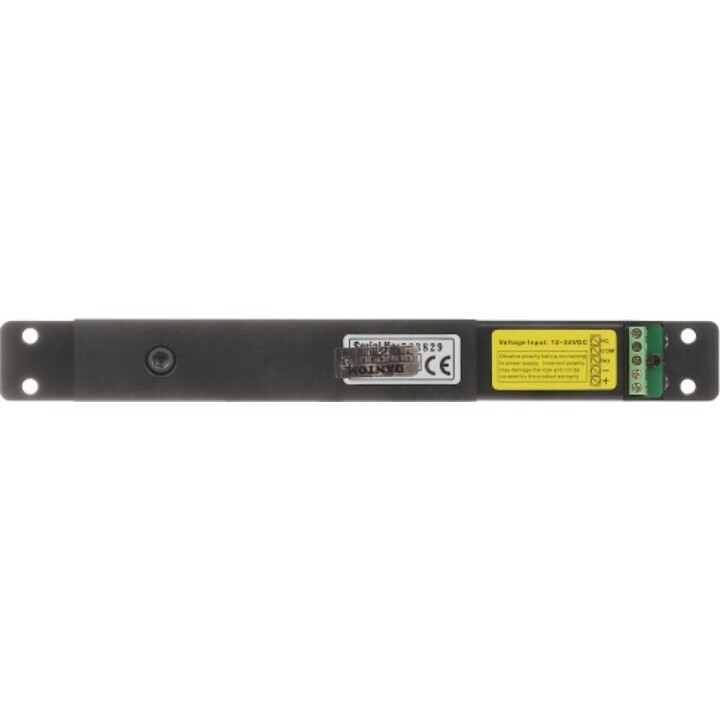

DT-1200AZ Electromagnetic Lock

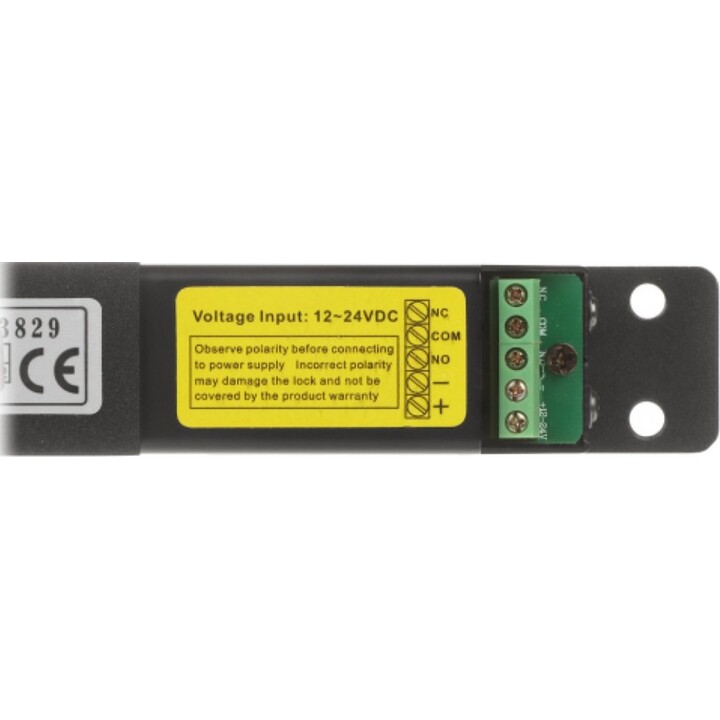

The DT-1200AZ is a high-holding electromagnetic lock designed for secure access control applications. With a holding force of 1200lbs (600kg), it provides reliable security for doors in commercial and industrial settings. The lock operates on 12V or 24V DC, selectable via a jumper, and features a built-in LED indicator that shows lock status at a glance.

Constructed with a zinc alloy body and a stainless steel armature, the DT-1200AZ offers durability and resistance to corrosion. It includes a surge suppressor for protection against voltage spikes and is compatible with most access control systems. The lock is easy to install with included mounting brackets and hardware.

Holding Force1200lbs (600kg)
Voltage12V/24V DC selectable
Current Draw500mA @ 12V, 250mA @ 24V
MaterialZinc alloy body, stainless steel armature
LED IndicatorRed (locked), Green (unlocked)
Operating Temperature-10°C to 60°C
Dimensions250 x 48 x 28 mm (lock body)
Weight2.0 kg
CertificationsCE, RoHS
