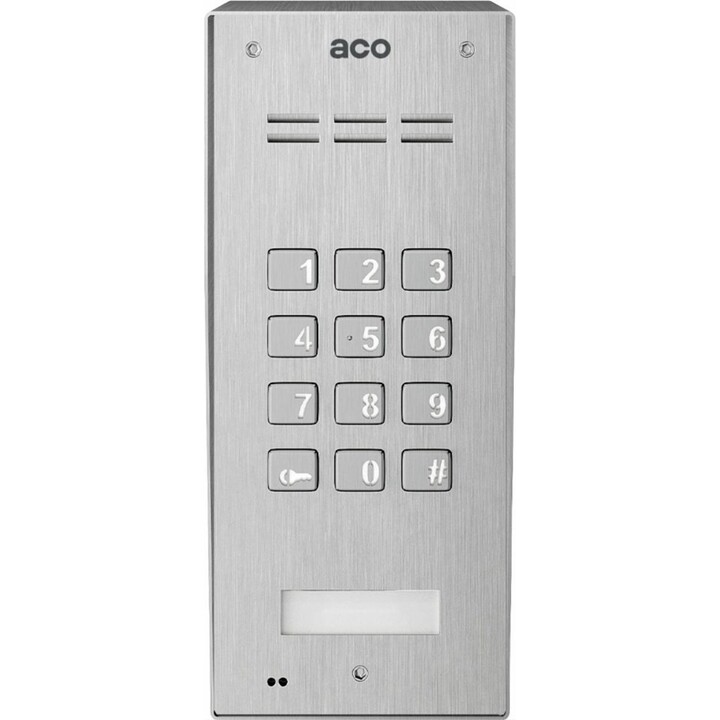

ACO FAM-P-ZSACC NT surface-mounted panel with combination lock

The ACO Archiv 15276 is a high-quality surface-mounted digital intercom panel designed for multi-family residential buildings. Featuring a robust combination lock with a readable key combination, this panel ensures secure and convenient access control. It supports up to 10 subscribers by default, with the possibility to expand up to 150 using dedicated software.

Constructed with a durable 2 mm thick panel, it withstands harsh weather conditions ranging from -20 to 50°C, making it suitable for various climates. The installation is straightforward with a 2-wire digital system allowing a maximum line length of 300 meters, extendable up to 1000 meters with thicker cables.

Designed with accessibility in mind, the panel includes illuminated buttons and both acoustic and optical signaling to assist users with disabilities. Power supply options include 11.5V AC or 15V DC with low power consumption (~1.3W in standby mode).

Additional features include multiple screw terminal outputs for electric lock control and audio signals, ensuring compatibility with various door systems. The panel dimensions are 174.8 x 67.8 mm, with a mounting box size of 177.1 x 70 x 41/30 mm.

Overall, the ACO Archiv 15276 offers a reliable, secure, and user-friendly solution for managing access in multi-family buildings.
