Code Lock Smart/ASI3203E Dahua

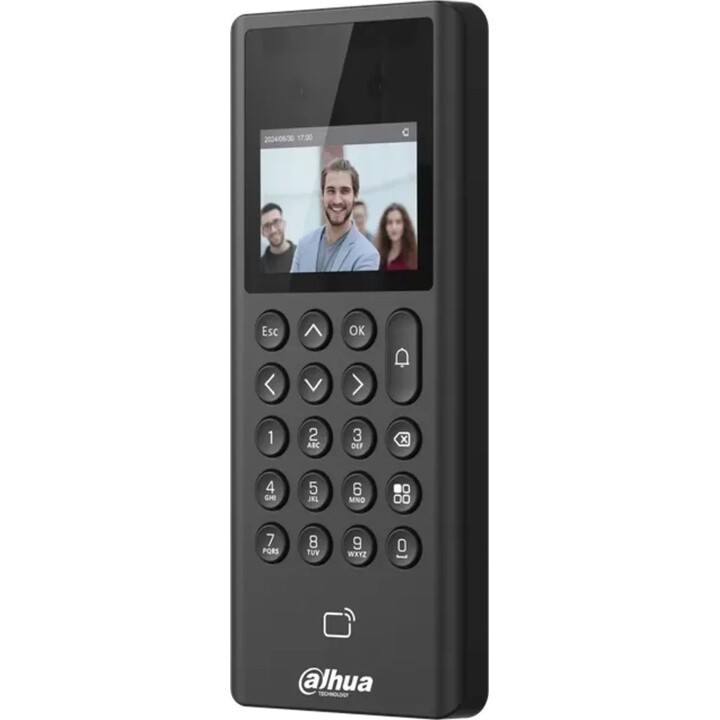

2.4 inch LCD touch screen (320x240 pixels): Intuitive interface for local configuration, user registration and event display without the need for a PC or external app.

99.9% accurate face recognition: 2 MP dual CMOS camera with IR illumination and DWDR, distance 0.3-1.5 m, speed 0.2s per face (1:N matching) even with mask.

Multiple unlocking methods: Facial, Mifare IC card (3,000), password (1,000), programmable combinations and 50 administrators with differentiated privileges.

Robust capacity: 1,000 users/traces/passwords + 100,000 records, ideal for families, small offices or shared access with temporary guests.

TCP/IP + RS-485 connectivity: 10/100 Mbps Ethernet port, USB and RTSP/UDP/P2P protocols for integration with Dahua NVR or third-party software.

Advanced security: Intrusion/duress/tamper alarms, anti-passback, programmable schedules and multiple verification for controlled access.

Rugged construction: ABS/PC body (184.9x76.2x20.5 mm, 600g), IP65 front, operation -10°C to +45°C, humidity 0-90% RH non-condensing.

Power supply 12V DC / 2A: Consumption ≤12W, wall mounting bracket with kit included and altitude up to 1,300 m.

Autonomous management: Exportable logs via USB, audible buzzer and firmware upgradeable for future functions such as holiday schedules.

CE/FCC certifications: Global regulatory compliance, slim design for standard doors without structural modifications.
