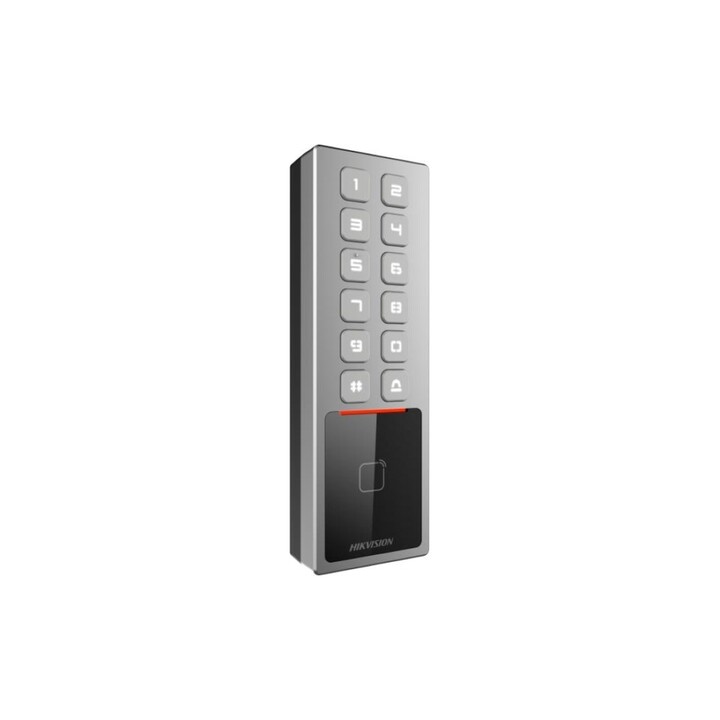

The HikVision 302920249 access control terminal offers a robust and reliable solution for managing secure access points. Featuring a surface mount design compatible with DS-KAB01 or DS-KAB02, this terminal supports Mifare 1K card technology and multilingual operation, including French. It connects via a 1x RJ-45 10/100 Mbps Ethernet interface and includes an RS485 serial interface for remote card reader integration.
Equipped with 2 alarm inputs, 1 alarm output, and 1 relay output for strike plate control, it supports configurable access schedules and multiple simultaneous authentications. The device is compatible with supervision software such as HIK-Connect, HIK-Partner PRO, HikCentral, and iVMS-4200, providing flexible management options.
Constructed from aluminium and acrylic, the terminal is designed to withstand harsh environments with an IP65 weatherproof rating and IK9 shock resistance. It operates reliably within a temperature range from -40°C to 70°C and humidity from 10% to 90%. The silver finish and tamper-resistant back contact enhance both aesthetics and security.
Additional features include a keypad, Wiegand interface output, and compatibility with K2601, K2602, K2604, and K2700 series controllers. The device supports network protocols such as DHCP, HTTP, HTTPS, ISAPI, SNMP, and TCP/IP, and allows web browser access for ease of use. Power consumption is 12W with a 12VDC power supply.
This HikVision terminal is an ideal choice for organizations requiring a durable, feature-rich access control system with extensive software compatibility and secure network integration.
