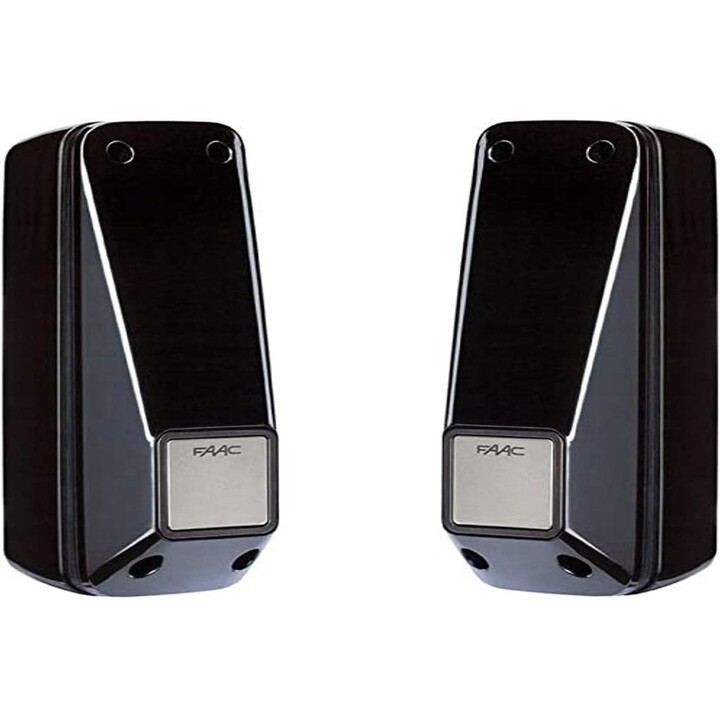

FAAC XP20D "Eye Controlled" Photocells

The FAAC XP20D "Augengesteuerte" light barriers, model E-6525, are designed for reliable gate automation and security applications. Featuring a wired connection and a photocell viewing angle of 180°, these light barriers offer a detection range of up to 15 meters. The device is protected with an IP54 rating, ensuring resistance against dust and water splashes, making it suitable for outdoor use.

Installation is versatile, allowing for mounted installation on walls or dedicated columns. The compact dimensions of 41 x 130 x 42 mm and horizontal adjustment angle from -90° to +90° provide flexible positioning to suit various gate setups. The device operates within a temperature range of -20°C to +55°C, ensuring performance in diverse climates.

With a maximum contact capacity of 60VA/24W and a quick obstacle detection time of 13 ms, the FAAC XP20D light barriers ensure efficient and safe operation. The current consumption is low, with Rx at 30 mA and Tx at 20 mA, contributing to energy efficiency.

Manufactured in Italy by FAAC, a trusted brand in automation solutions, this product is ideal for enhancing the safety and functionality of gates and access points.
