Xiaomi Electric Precision Screwdriver Kit/ 24 Precision Bits

Xiaomi Precision Electric Screwdriver

Precise two-speed torque control, discover limitless possibilities

• Adjustable torque speeds
• magnetic storage container
• 24 S2 steel precision screwdriver bits
• Over 400 precision screws with a full load

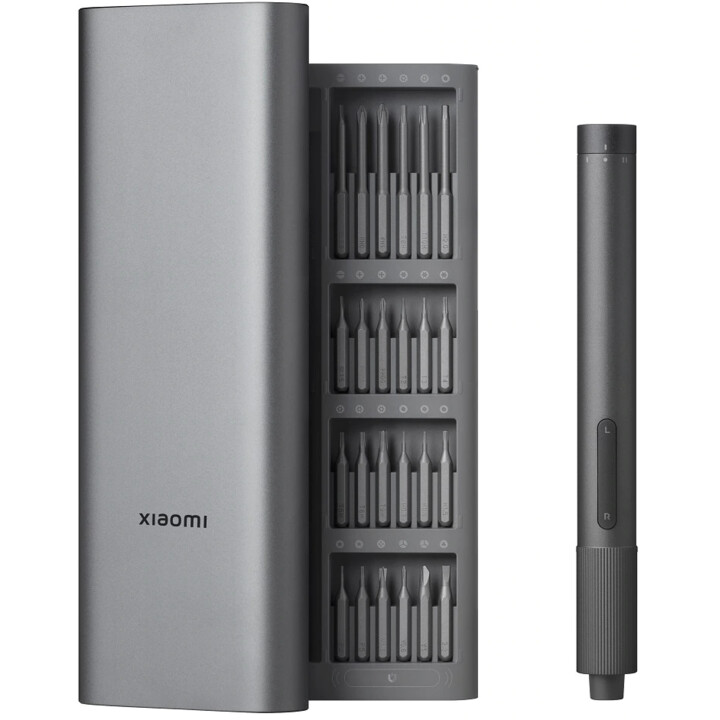

Push pop-up, Magnetic storage

Award winning classic design

The Mi Precision Screwdriver has won five international design awards; namely the iF, Red Dot, Japan Good Design, IDEA and Chicago Good Design Awards. The Xiaomi Precision Electric Screwdriver uses the same pop-up design, with a convenient push-to-release mechanism.

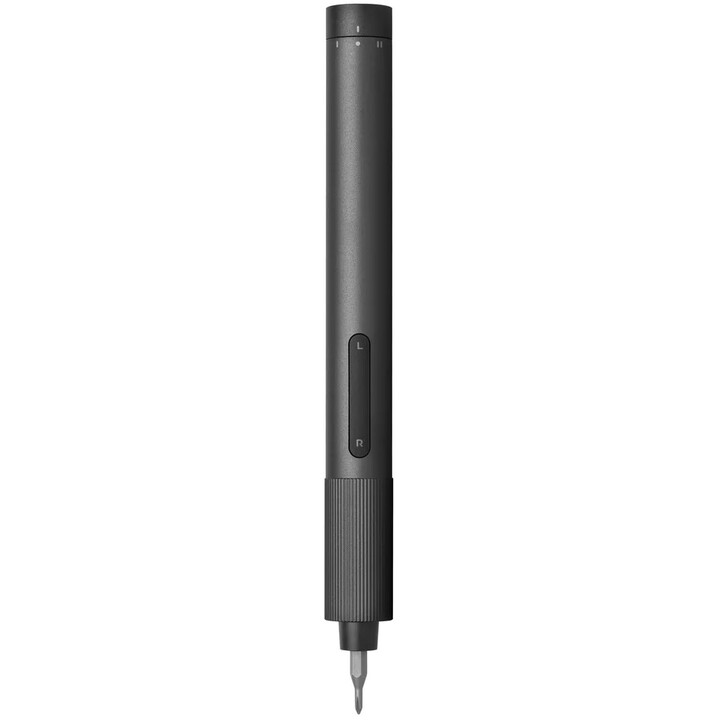

Precision electric screwdriver

Improved precision efficiency

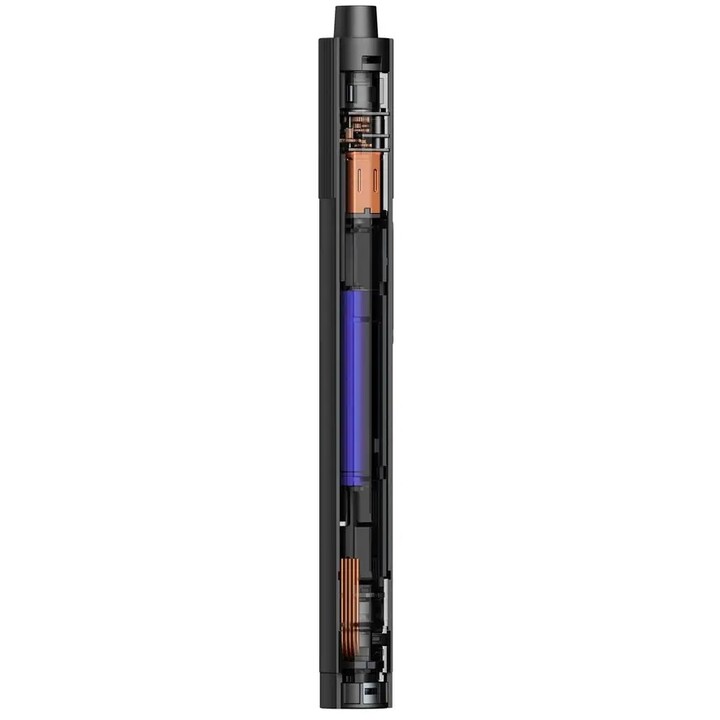

Thanks to the powerful magnetic motor with a speed of up to 170 rpm*. and the all-metal gear case, the screwdriver has a screwdriver tip concentricity of no more than 0.2mm* when rotating, for higher precision efficiency.

Compact design with long battery life

Over 400 precision screws with a full load

The screwdriver has a shaft diameter of just 16.4mm*. The built-in rechargeable lithium battery is powerful and long-lasting and can process more than 400 precision screws on a full charge*.

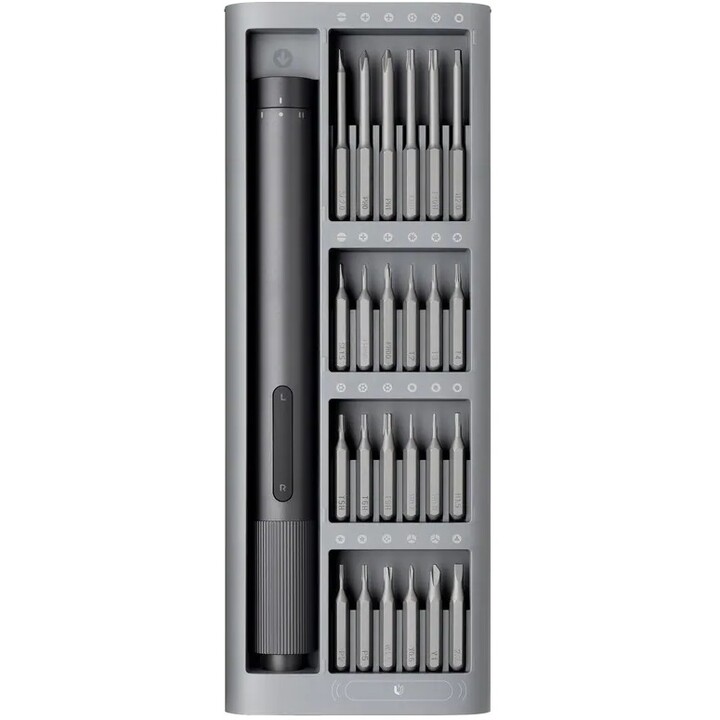

24 S2 steel precision screwdriver bits in 9 main types

The 24 high-quality S2 tool steel screwdriver bits are durable and strong and have a hardness of up to 60HRC*.

The 24 types of precision screw driver bits are ideal for removing and mounting most standard electronics and newer small appliances.

6 commonly used 45mm long screwdriver bits for complex deep hole applications

Of the 24, 6 commonly used screwdriver bits are 45mm in length for use in a wide range of complex applications, such as deep holes and tight spaces.

Precise two-speed torque adjustment

Precision screw protection

• 0.05 Nm* for precision objects such as smartphones, watches and glasses
• 0.2 Nm* for electronic products such as smart speakers and laptops
• Turning off the power prevents accidental operation and makes manual screwdriving easier

Intuitive button layout

Smooth touch with effortless pressure.

Learn how to use it in no time: just press the front button R to screw and the back button L to unscrew. The button is made of soft TPU rubber and requires gentle finger pressure, which conserves its energy when operated for a long time.

Low center of gravity for more control

Non-slip texture for easy grip.

The internal structure of the main body of the screwdriver has been adjusted over and over again to provide a balanced center of gravity and improved handling. 3D non-slip texture on the grip increases friction for a more secure hold of the screwdriver during use.

One-piece aluminum alloy case

Aluminum alloy anodizing process.

The storage case and the body of the screwdriver are made of high-quality aluminum alloy, which makes them comfortable to hold. The anodized surface finish is anti-slip and sweat-resistant, and is less prone to rust.

Universal Type-C charging port

Worry-free charging alert indicator

Type-C charging port is compatible with popular electronics charging cables, making charging more convenient. Indicators next to the charging port instantly alert you when the battery is low and show the charging status.

13 battery safety tests and 3 charging safety protection functions for added safety*

• External short circuit test at room temperature
• overload test
• temperature cycling test
• Forced discharge test
• low pressure test
• Thermal abuse test
• High temperature external short circuit test
• vibration test
• crush test
• Fall test
• acceleration impact test
• Heavy weight impact test
• combustion test
• Overheat charging protection
• Overvoltage charging protection
• Overcurrent charging protection

• Specifications
• Maximum Torque at level I
• 0.05Nm
• Maximum Torque at level II
• 0.2Nm
• Maximum Torque at level III
• 3Nm
• product color
• Gray
• product dimensions
• 201.8x74.2x25.2mm
• Product net weight
• 353g
• load specifications
• 5V?0.14A
• screwdriver dimensions
• 159 x °16.4mm
• Nominal voltage
• 3.7 Ω
• Screwdriver Net Weight
• 59g
• Lithium battery
• 350mAh
• Loading time
• 160°200 min
• no upload speed
• 170rpm

• Screwdriver bits parameters

• Screwdriver Bit Specifications
• C4x28mm, C4x45mm
• Screwdriver bit material
• S2 steel
• phillips head
• PH000/PH00/PH0/PH1
• Pentagonal
• P2/P5
• hex
• H0.7/H0.9/H1.5/H2.0
• W-type
• W1.5
• slotted
• SL1.5/SL2.0
• Y-type
• Y0.6/Y1
• torx
• T2/T3/T4
• tri-wing
• 23
• Torx with pin hole
• TH5/T6H/T8H/T9H/T10H
• Note
• C4 x 45mm for PH0/PH1/SL2.0/T8H/T10H/H2.0, C4 x 28mm for all other types
• Package Contents
• Storage container x1
• Xiaomi Precision Electric Screwdriver x1
• Screwdriver bit x24
• Type-C charging cable x1
• User manual x1
