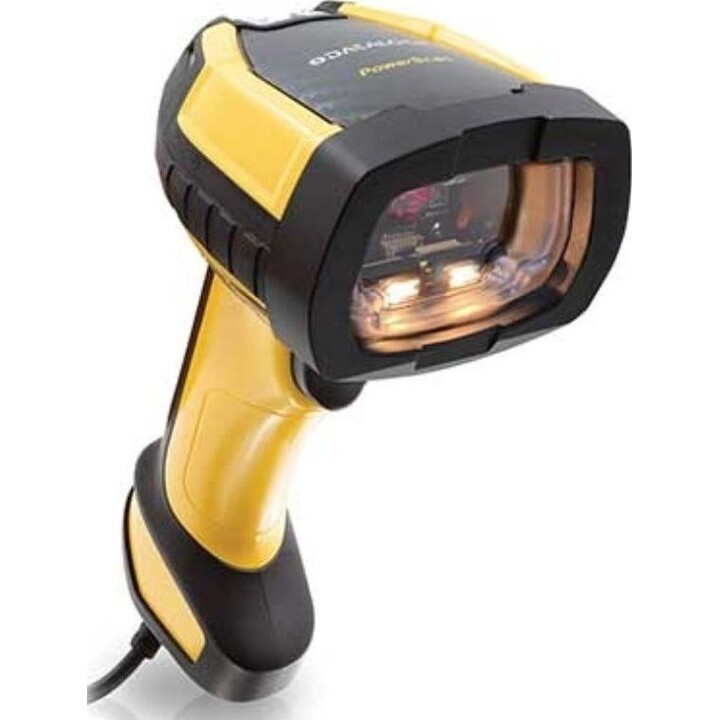

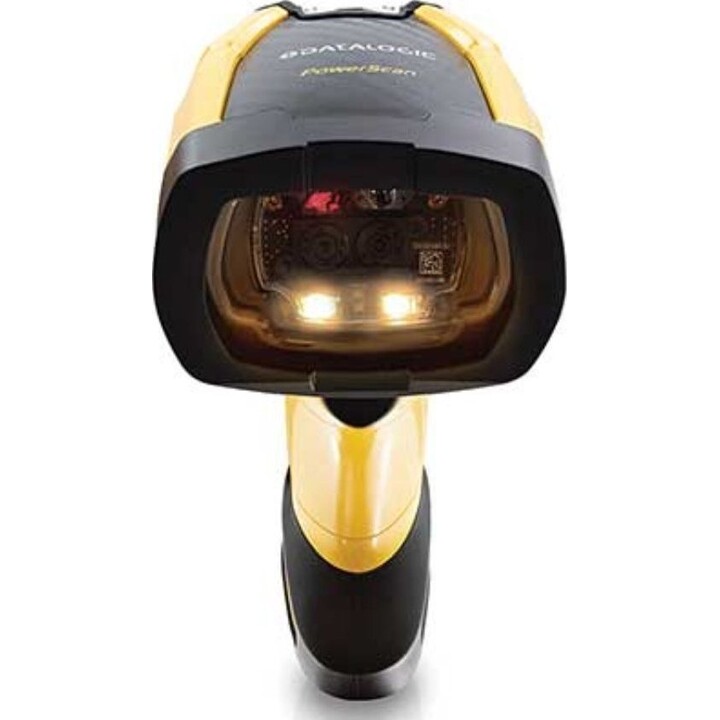

Datalogic PD9630-HP barcode reader Handheld bar code reader 1D/2D Black, Yellow

• Base model: PowerScan PD9630, wired version of the PowerScan 9600 series.

• Optical variant: HP (High Performance), with:

  • Greater depth of field than SR for standard 1D/2D.

  • Ability to read high density codes and support Digimarc.

• Sensor imager: 1280 x 800 pixels, white LED illumination and highly visible red frame target.

Interfaces and connectivity

• Connectivity: corded, no radio; direct cable connection to host.

• Supported interfaces:

  • USB (HID, CDC, etc.).

  • RS-232 serial.

• Some kits (PD9630-HPKx) include a specific USB or RS-232 cable, but the "PD9630-HP" part alone is the scanner on its own.

Scanning features

• Fast omnidirectional reading from contact up to approx. 2 m, depending on symbology and size.

• Symbologies:

  • 1D and GS1 DataBar.

  • 2D (QR, DataMatrix, Aztec, etc.).

  • Postcodes and Digimarc.

• Typical maximum resolution: up to 2.5 thousand in 1D and 4 thousand in 2D.

Robustness and ergonomics

• Degree of protection: IP65 and IP67, withstands dust, water jets and temporary submersion.

• Drop resistance: up to 50 drops from 2.5 m at 20°C and 2 m at -20°C; 5,000 tumbles at 1 m.

• Operating temperature: -20 °C to 50 °C.

• Trigger life: up to 10 million activations.

• Weight approx. 318 g, colour black/yellow, balanced design for intensive use.
