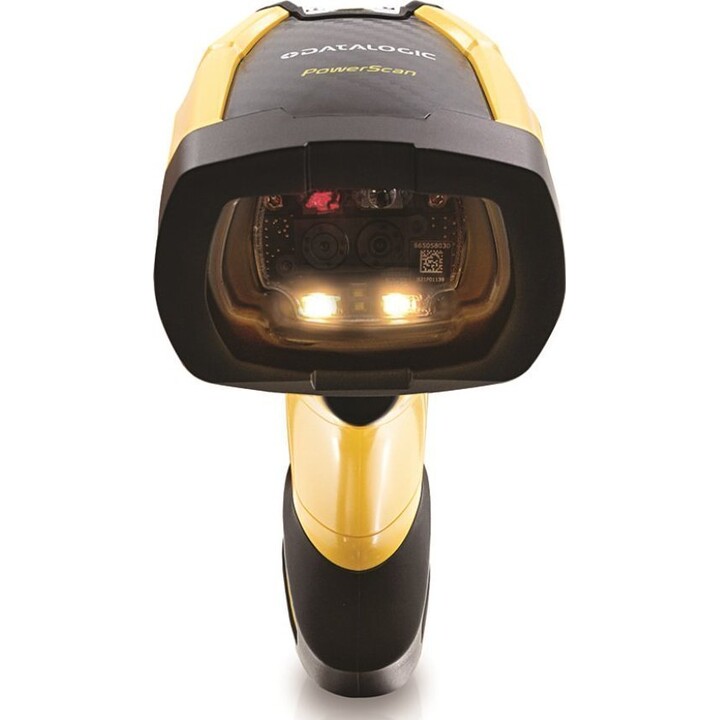

Datalogic PowerScan PBT960HPRBK20EU Barcode Reader

Reading capabilities and performance

• Reader type: 2D area imager, High Performance (HP) version with dual camera, which extends the range compared to the Standard Range model.

• Reads: 1D, stacked and 2D codes (including damaged, dirty or low contrast) with read rates up to 20% higher than competitors, according to Datalogic.

• HP field of view: approx. 38° (H) x 24° (V), with pitch/roll/yaw angles ±52°/360°/±52°.

• Indicators: 3GL (Three Green Lights), Green Spot, dual LEDs, adjustable beeper and vibration.

Connectivity and robustness

• Radio: Bluetooth 5.0 Class 1 (up to ~100 m in open field), pairable with the BC9630-BT base or other BT devices (PC, tablet, terminal).

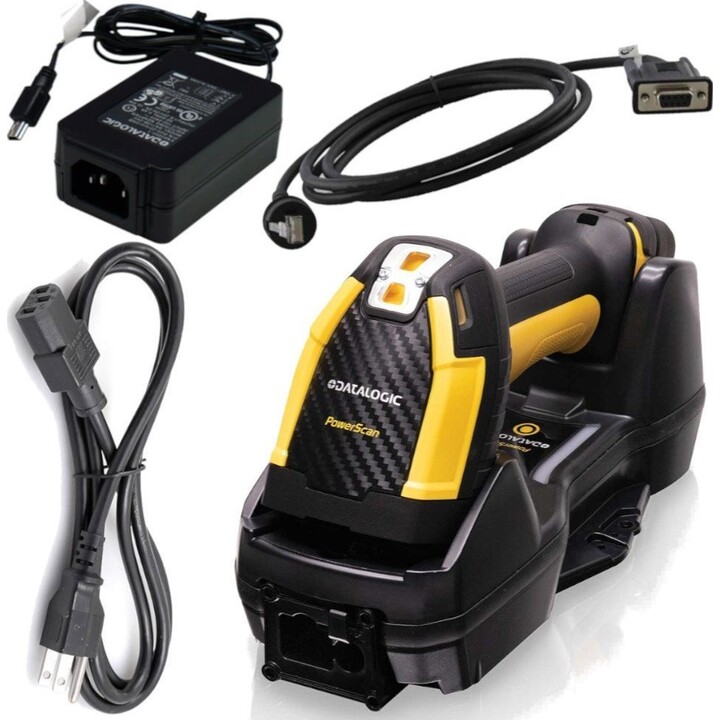

• Base interfaces: the BC9630-BT is multi-interface; RS-232 (CAB-548) is used in this kit, but the architecture allows switching to USB/Ethernet/EtherNet-IP/Profinet with appropriate modules/cables.

• Ruggedness: IP65 and IP67 scanner, IP65 base; drop resistance up to 2.5m, 10 million trigger actuations, 0-95% RH and up to 100,000 lux ambient light.
