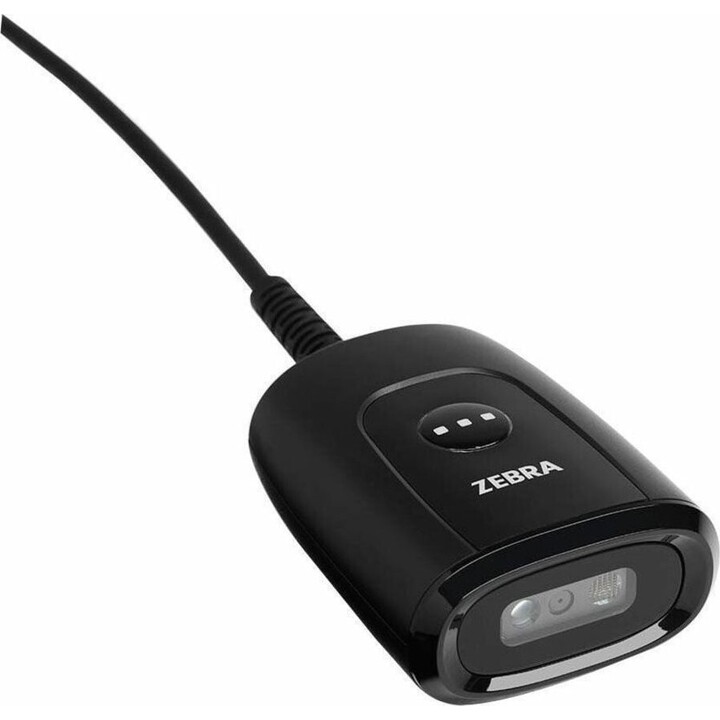

Zebra DS5502-SR40004ZZWW Fixed Barcode Scanner

Type of equipment and optics

• Model: DS5502-SR, configuration SR40004ZZWW (Standard Range, corded, white illumination, midnight black).

• Technology: 2D omnidirectional area imager with 1280 x 800 megapixel sensor (≈184% higher resolution than DS457).

• Codes: reads 1D, 2D (QR, Data Matrix, Aztec, etc.), PDF417 and codes on mobile screens, even damaged or poorly printed.

Physical format and mounting

• Form factor: fixed mount / hands-free presentation; can be used on countertop or recessed in furniture/kiosk.

• Size: approx. 1.2" x 2.2" x 2.8" (3.0 x 5.6 x 7.2 cm), intended for minimal or no footprint (under counter, in frames, etc.).

• Mounting:

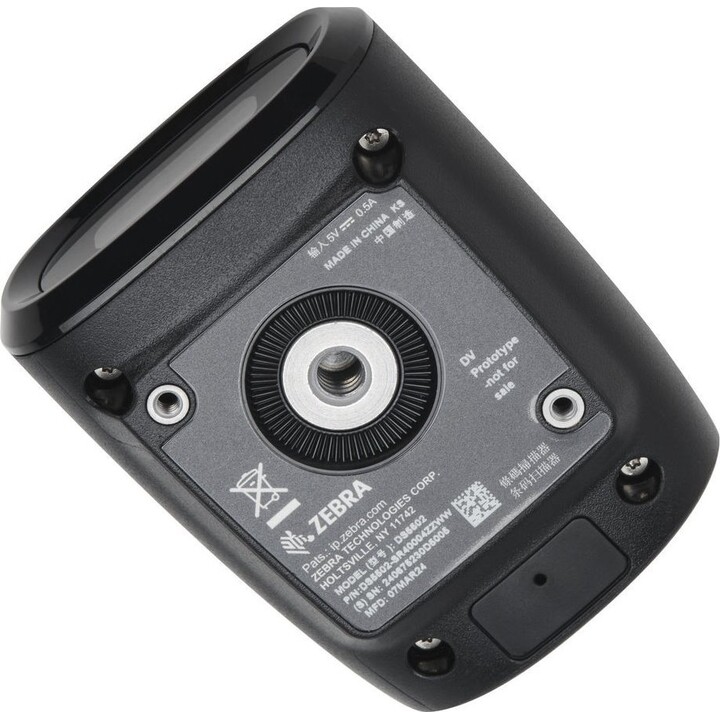

  • Standard 1/4-20 thread for camera type accessories (arms, VESA mounts, etc.).

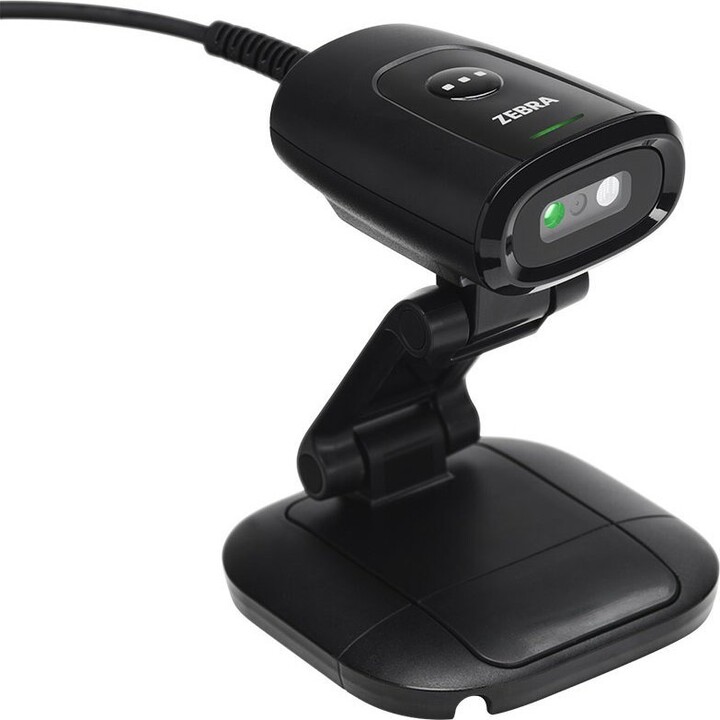

  • Optional 3-in-1 accessory (not included) serves as monitor stand, wall mount and presentation stand.

Connectivity and power

• Interfaces: USB and RS-232 (depending on cable used) in the DS5502 range.

• This particular part number DS5502-SR40004ZZWW is usually sold as "scanner only" or in RS-232 kit depending on distributor; cables/PSU to be chosen separately.

• Power supply: via USB (5 V) or external power supply when using RS-232/KBW.

Performance and robustness

• Performance: wide field of view and high scanning speeds, allowing fast readings without precise code positioning.

• Feedback: Good read LEDs and adjustable beeper up to twice the volume of the DS457, intended for noisy environments or internal kiosk/booth mounting.

• Ruggedness: IP54 sealing and 1.5m drop resistance for 24/7 use in retail and light industrial applications.
