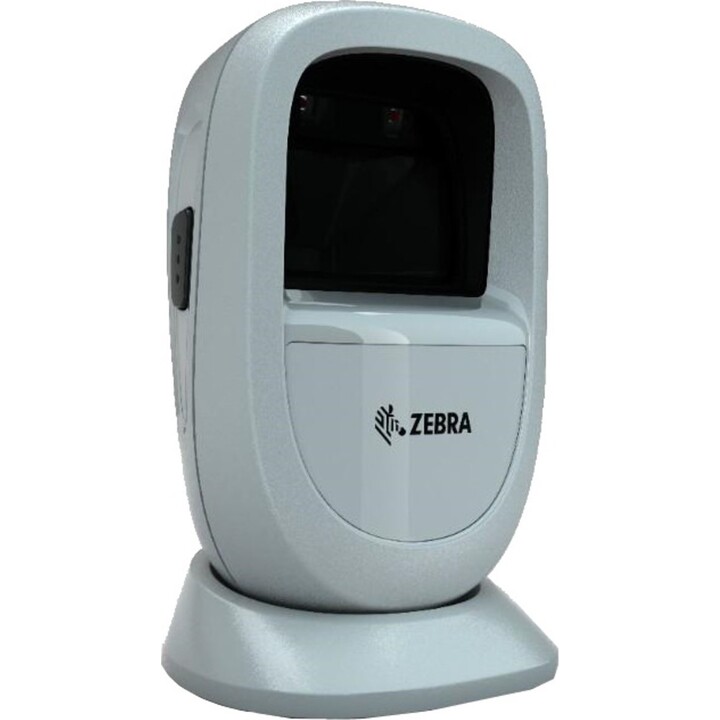

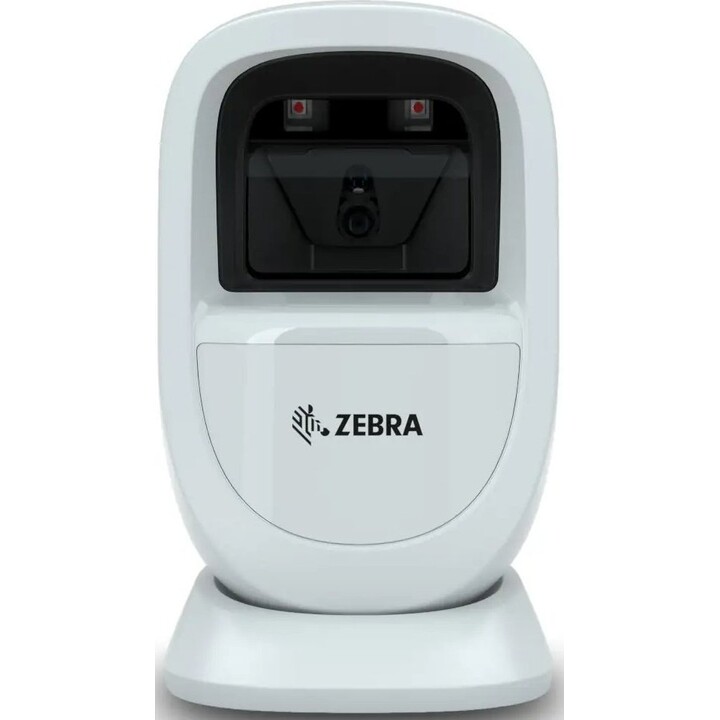

Zebra DS9308 Barcode Scanner (Scanner Only)

The Zebra DS9308-SR0000WZZWW is a hands-free presentation scanner DS9308, scanner only (no cables or source included), Standard Range version in Alpine White colour. It is intended for space constrained point-of-sale locations that need to read 1D/2D on products and displays with high speed and reliability.

Type and optics

• Family: DS9300 Series, model DS9308.

• Reader type: 2D standard range (SR) area imager.

• Read: Captures 1D, 2D and PDF417, including high density, damaged, low contrast, reflective and Digimarc codes.

• Typical range: from contact to ~28 cm (11") depending on symbology and module size.

Configuration DS9308-SR0000WZZWW (scanner only)

• Description: "DS9308 Presentation Area Imager, Standard Range, Corded, Alpine White, Scanner Only".

• Physical connectivity: Corded (requires separate interface cable: USB, RS-232, etc.).

• Power supply: normally via USB host (4.5-5.5 VDC), or external power supply if using RS-232/KBW.

Design and robustness

• Dimensions: approx. 14.5 x 8.6 x 8.3 cm (H x W x D).

• Weight: ~318 g.

• Protection: IP52, multiple drop resistance of 1.5 m and 1,000 drops of 0.5 m.

• Design: 45° cable connector base to reduce footprint; can be tilted and also used in handheld casual mode.

Advanced Features

• Intelligent Document Capture: Capture small documents (A6 or less), cheques, prescriptions and passports as readable images.

• Multi-Code Data Formatting (MDF): reads multiple codes in a single shot and only sends the required codes in the desired order.

• Preferred Symbol: allows you to "select" a particular code from among several nearby codes without having to cover the others.

• EAS: integration option with EAS Checkpoint systems for reading and deactivation in a single pass (depending on configuration).
