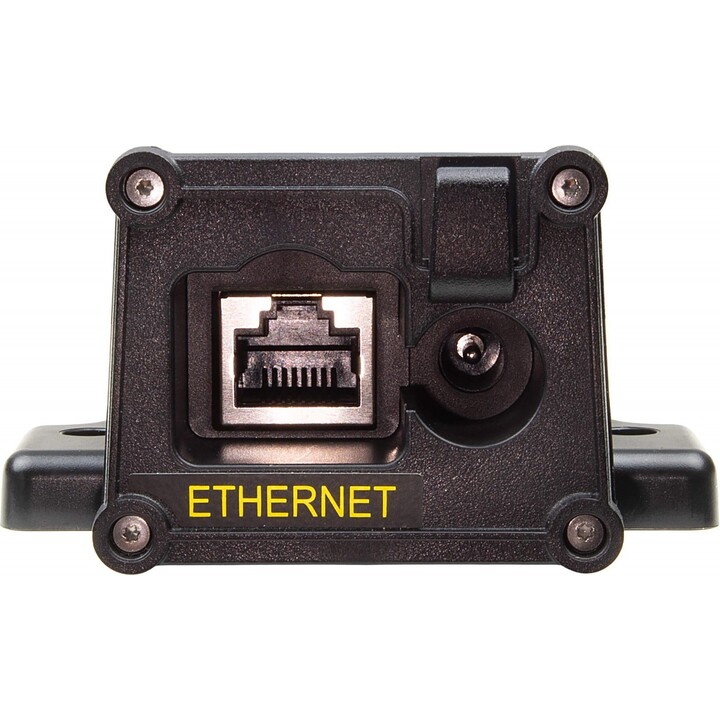

Datalogic CM9680 Ethernet ETH STD and Profinet Module
-
CM9680 "Connection Module, Ethernet / Profinet" for BC9600 bases of PowerScan 9600 scanners (PM9600/PD9600).
-
Supported interfaces: Standard Ethernet TCP/IP and Profinet, with configurable network parameters (static IP, DHCP, data ports, device name, I/O buffers, etc.).
-
It works as a modular part of the BC96xx providing power and communication between the Ethernet/Profinet host and the PowerScan base.
-
It can also be used as an external accessory to connect PD96xx readers directly to an Ethernet host, as per the CM96xx series manual.
-
Power supply: typical range 10-30 VDC ±5%, maximum consumption about 1.5 A according to CM968x module specifications.
-
Dedicated LED indicators for network status (BF), link (LINK), module status (SF) and power (PWR), facilitating quick diagnostics in the field.
-
M12 X-coded female Ethernet connector (IP protected) according to documentation, intended for industrial environments with vibration and dust.
-
Typical use: integration of PowerScan 9600 into industrial Ethernet/Profinet networks, connection to PLCs, conveyor systems, automated picking and real-time traceability applications.
-
Brand
-
ReferenceCM9680
-
In stock2 Items
-
ConditionNew
-
MPNCM9680
| Brand | DATALOGIC |
|---|---|
| Country | Italy |
| Address of origin | Via Candini, 2, 40012 Lippo di Calderara di Reno, BO, Italy |
| EU responsible person | Datalogic S.p.A. |
| Address | Via Candini, 2, Lippo di Calderara di Reno, Italy, 40012 |
| [email protected] | |
| Phone | +39 051 3147011 |
