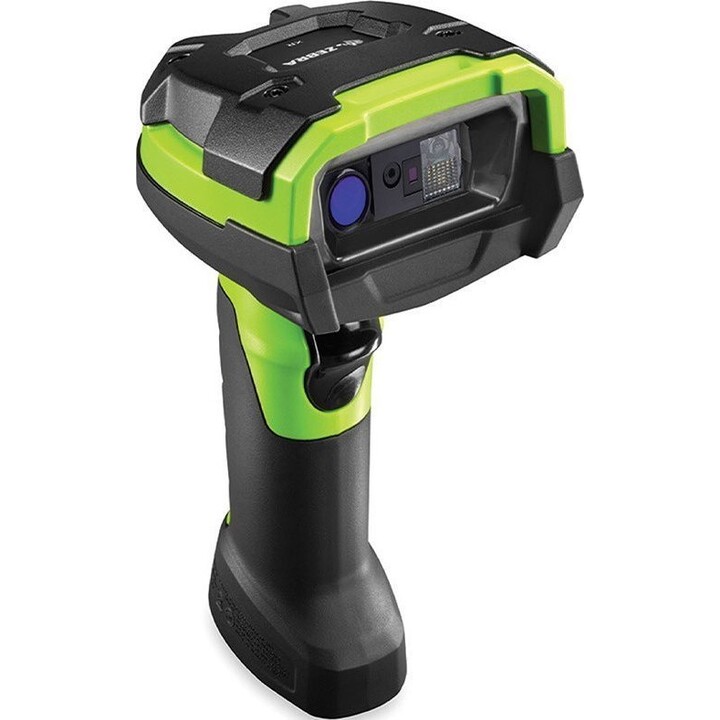

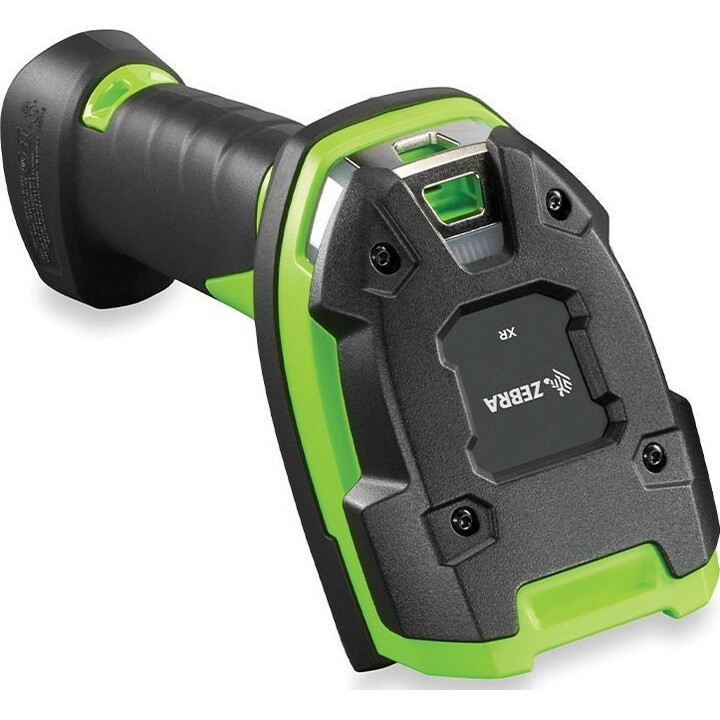

Zebra DS3608 Barcode Scanner (Scanner Only)

Type and optics

• DS3600-XR Series, handheld 2D area imager Extended Range (SE58), capable of reading from approx. 5 cm to over 32 m / 105 ft.

• Captures 1D and 2D codes on paper, under-film labels, damaged, soiled, high-density codes and even under frost or shrink wrap.

Scanner-only configuration

• Part number DS3608-XR60003VZWW: corded, scanner only, without cable; interface cable (USB, RS-232, KBW) ordered separately.

Performance and aiming

• Green laser aimer with cross pattern, up to 7× more visible than a red dot, visible over the full working distance and even up to 3 m in full sun.

• PRZM Intelligent Imaging + IntelliFocus technology, allows to read picklists in hand, labels on high racks or on the floor without changing device.

Industrial ruggedness

• Ultra-rugged: drops up to 3 m / 10 ft on concrete, IP65 and IP68 sealed (submersible and resistant to high pressure jets).

• Operational from approx. -30 °C to +50 °C, suitable for indoor, outdoor and cold room use.

Feedback and tools

• Multiple feedback: vibration, 360° wrap-around LEDs, powerful beeper and Direct Decode Indicator on the code.

• Compatible with Zebra 123Scan, Scanner Management Service, Label Parse+ and Multi-Code Data Formatting, for mass configuration and GS1 label parsing.
