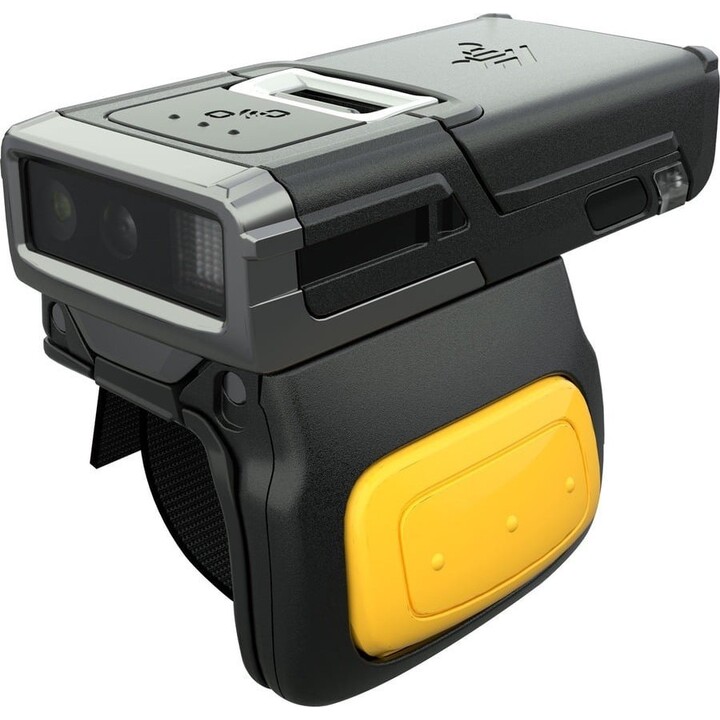

Zebra RS5100 Barcode Scanner (Trigger Non Included)

Type and configuration

• Model RS5100 ring scanner, platform only, scanner body only: no battery, no trigger/manual trigger, top trigger.

• Requires separate standard/extended battery and appropriate trigger/manual trigger module to be ordered separately.

Optics and performance

• SE4770 1D/2D area imager, Standard Range, with red illumination and high visibility crosshair laser pointer.

• Reads virtually all 1D and 2D codes, printed or on-screen, with high tolerance to movement and damaged codes.

Connectivity and use

• Bluetooth 5.2 LE Class 1, typical range up to ~90 m/300 ft depending on environment, ideal with TC, WT, vehicles or PCs.

• Supports NFC tap-to-pair with compatible Zebra devices, avoiding entering Bluetooth menus.

Ergonomics and mounting

• Very light weight, around 70 g with battery, single-finger ring format, configurable for right/left hand or back of hand mounting.

• Multiple indicators: rear LEDs, beeper and optional vibration to confirm readings and give directional feedback.

Battery and ruggedness (RS5100 family)

• Compatible with standard 480 mAh or extended 735 mAh PowerPrecision+ batteries, designed to cover one or more shifts (depending on model).

• Rugged construction, with 1.8 m drop resistance and dust and splash protection for 24/7 use in warehousing, logistics and retail.
