Ewent EW3440 2D Wireless Barcode Reader with Smart Base

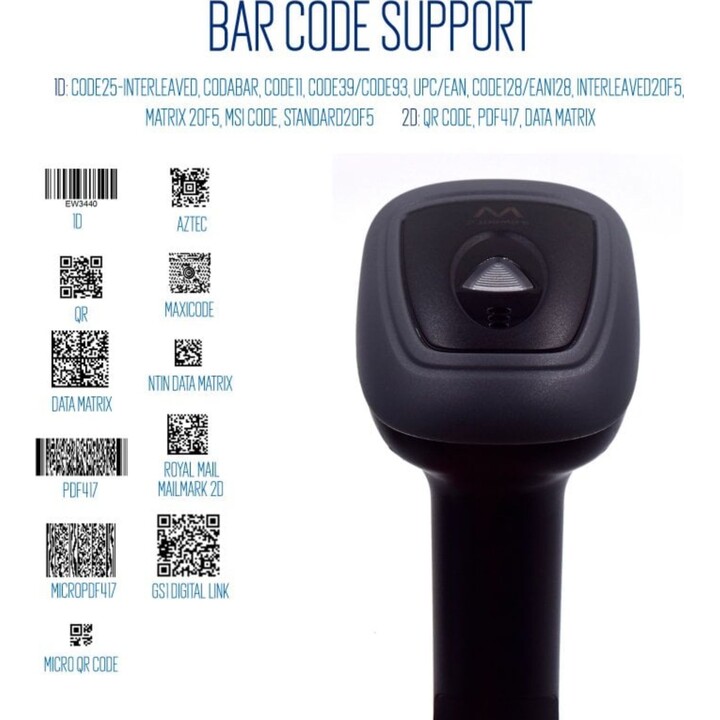

This Ewent EW3440 smart scanner can quickly read various types of 1D and 2D barcodes. It reads all the most common codes:

• 1D: Interleaved 2 of 5, ITF-6, ITF-14, ISB-128, Code 11, UCC/EAN-128, GS1 Databar, Industrial 2 of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, Code 93, GS1 composite code, Matrix 2 of 5, Code 32
• 2D: PDF417, Data Matrix, QR Code, HanXin, AZTEC, Maxicode, Micro QR, Micro PDF417

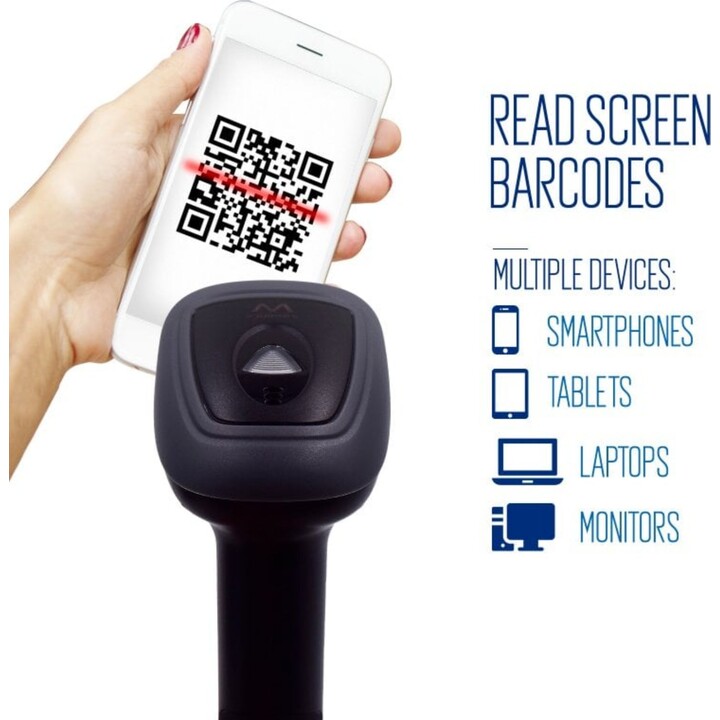

Its ability to read digital images displayed on screens allows it to read barcodes and QR codes shown on computer and mobile phone screens. This makes it indispensable for use in all types of businesses. Scanning is done with the reader on its smart base, allowing for quick and easy use without having to move it.

By connecting the smart base to a computer via USB cable, it will begin charging the scanner and, if the scanner is in use, will send the data to the computer. This smart base acts as both a charger and a wireless receiver, eliminating the need for any other device.

The Ewent EW3440 smart reader is incredibly versatile when it comes to device connectivity, making it compatible with almost any type of device. It can be connected to a computer via its included USB cable, used wirelessly with its smart base connected to a USB port, or connected via Bluetooth to a Bluetooth-enabled smartphone or tablet.

The intelligent decoding and reading quality of the Ewent EW3440 barcode reader allows it to read broken barcodes, very weak prints, or special codes with a high degree of density.

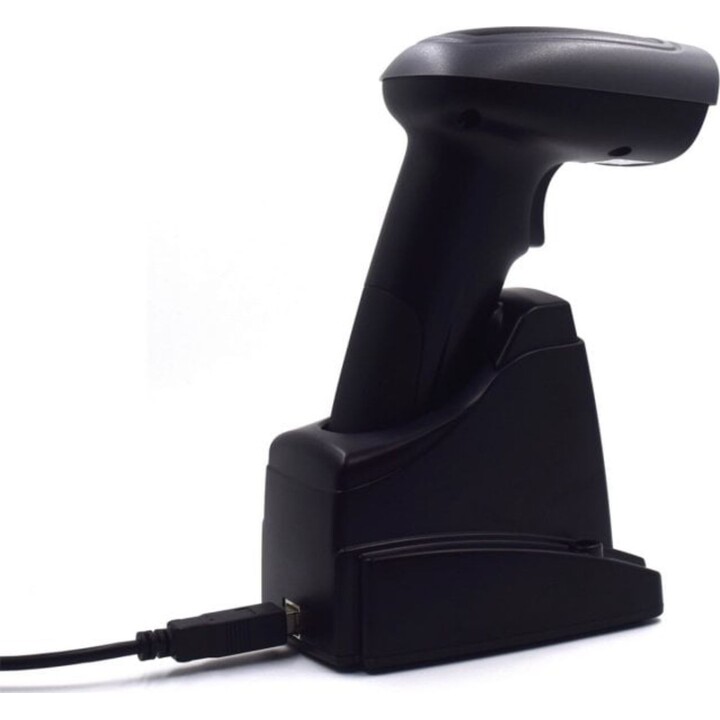

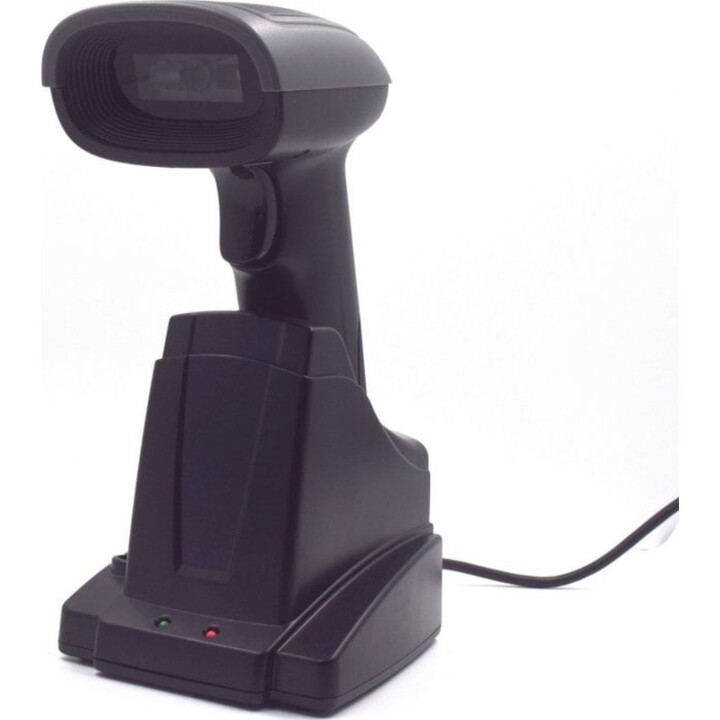

Smart base with charging function

Smart charging base. To charge the reader, simply place it on the base.

Inventory mode

Inventory mode makes counting scanned codes easier, ideal for warehouses and assembly lines.

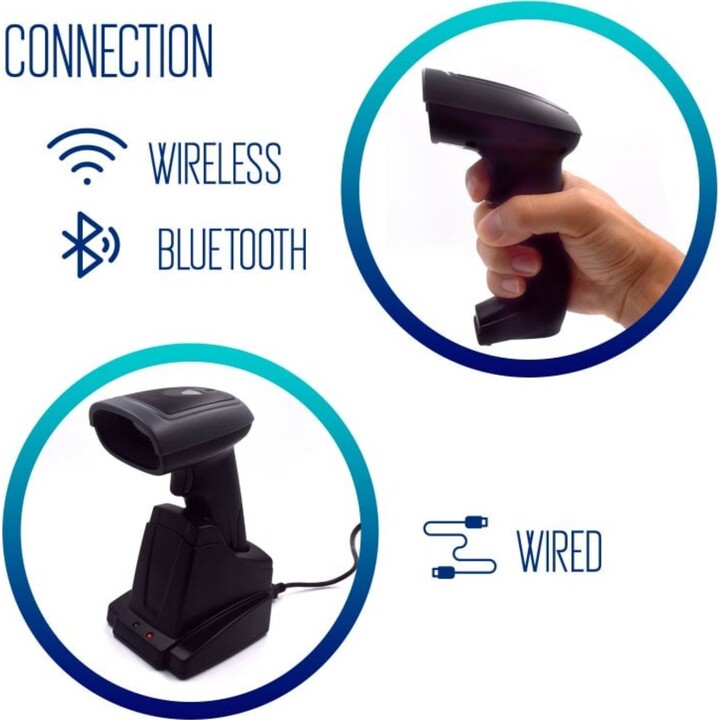

3 connection modes

• Smart base: Connect the base to your computer with the USB cable; it's plug and play. Thanks to the built-in 2.4GHz adapter, scans can be transferred to your computer wirelessly.
• Bluetooth mode: It is possible to connect the reader to a computer, tablet or smartphone via Bluetooth
• Via cable: it is possible to connect the reader to the computer with the supplied USB cable; it is completely plug and play.

Grades :

1. If you are having trouble reading barcodes on your computer screen, it is recommended to adjust the screen brightness and resolution.
2. If you connect the reader with the 2.4 GHz adapter after using a Bluetooth connection, you need to pair the adapter with the scanner as explained in the manual.

Characteristics

• Next-generation, high-speed 1D and 2D barcode scanner. Scans most barcodes. 1D: Interleaved 2 of 5, ITF-6, ITF-14, ISB-128, Code 11, UCC/EAN-128, GS1 Databar, Industrial 2 of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, Code 93, GS1 composite code, Matrix 2 of 5, Code 32. 2D: PDF417, Data Matrix, QR Code, HanXin, AZTEC, Maxicode, Micro QR, Micro PDF417.
• Smart base. In addition to its stand function, the base can charge the scanner and simultaneously send scan results to the computer. No extra chargers or receivers are needed. It uses a 2.4GHz receiver.
• It works in 3 different ways in terms of its connection: 2.4GHz wireless WIFI, Bluetooth or via USB cable.
• It reads high-density, broken, or lightly colored barcodes. It is fully compatible with Linux, Android, Windows XP, 7, 8, 10, 11, and Mac operating systems.
• It can read digital images, thus being able to read codes on a smartphone, tablet, or screens.

Ewent EW3440 Specifications

• Exploration
  • Type: Portable barcode scanner
  • Scanning type: 1D/2D
  • Supported linear (1D) barcodes: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E
  • 2D (matrices and stacked) barcodes supported: Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
  • Read speed (maximum): 500 reads/s

• Ports and Interfaces
  • Connectivity technology: Wireless and wired
  • Standard interface: Bluetooth, wireless RF, USB
  • Bluetooth version: 4.2

• Performance
  • Housing material: Acrylonitrile butadiene styrene (ABS), Plastic
  • Protective features: Shock resistant
  • Product color: Black

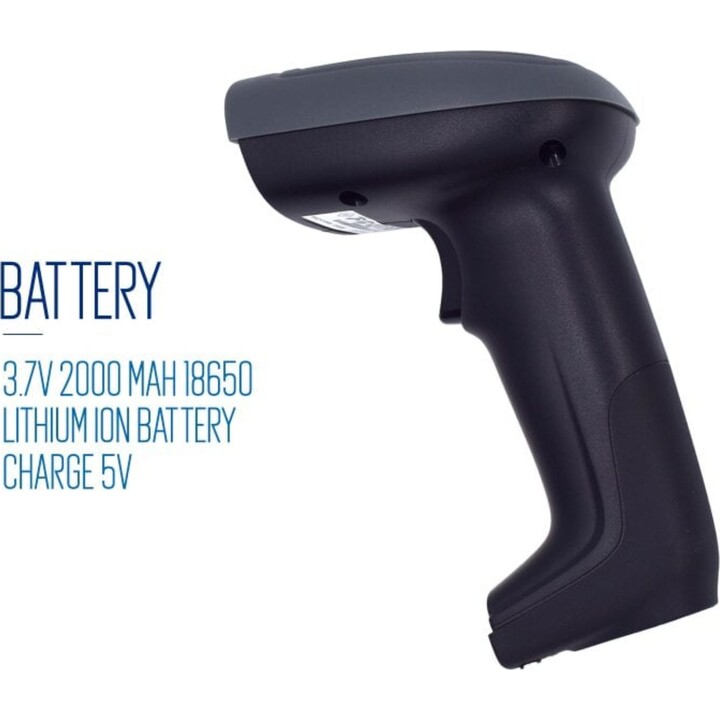

• Energy control
  • Power supply: Battery, USB
  • Battery technology: Lithium-ion
  • Battery type: Built-in battery
  • Battery capacity: 2000 mAh
  • Battery voltage: 3.7 V
  • Charging time: 7 h
  • Input voltage: 5V

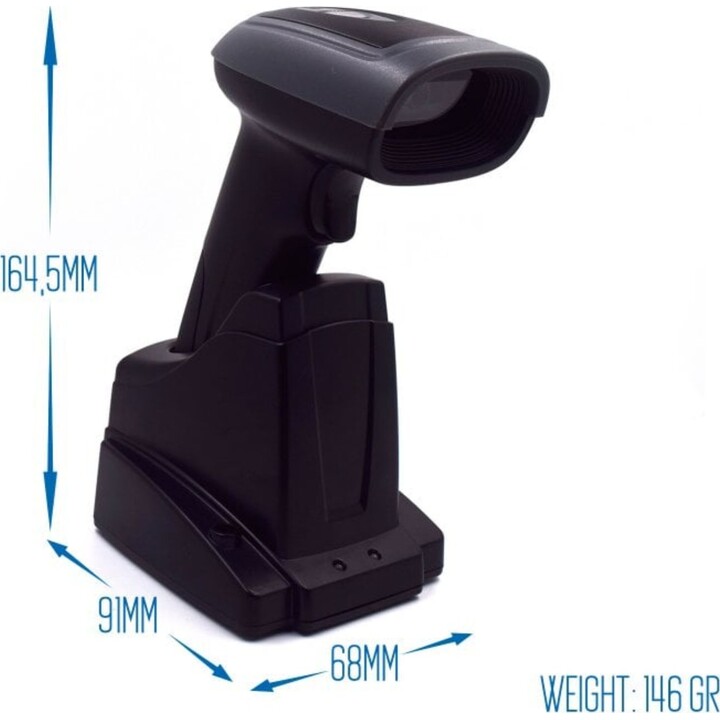

• Weight and dimensions
  • Width: 68.3 mm
  • Depth: 176.9 mm
  • Height: 90.5 mm
  • Weight: 195 g

• Packaging
  • Charging base: Yes
