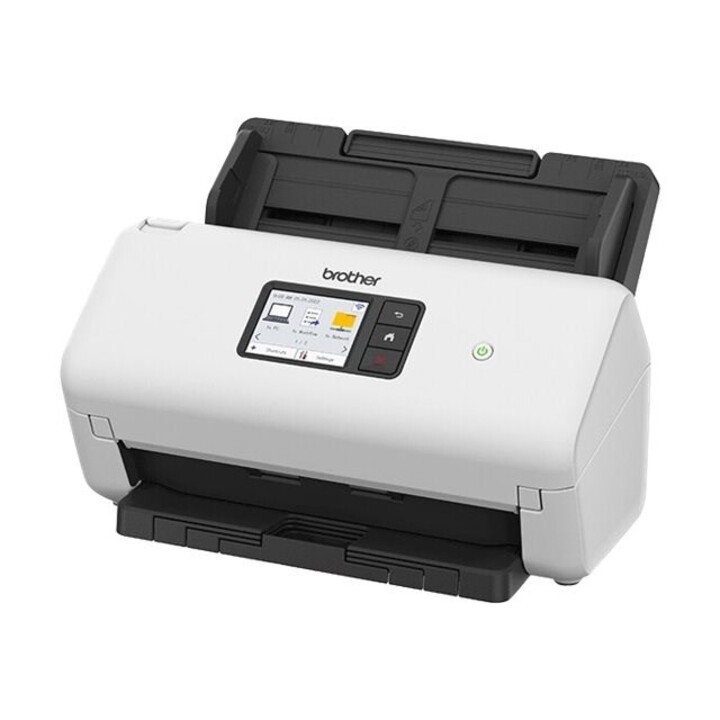

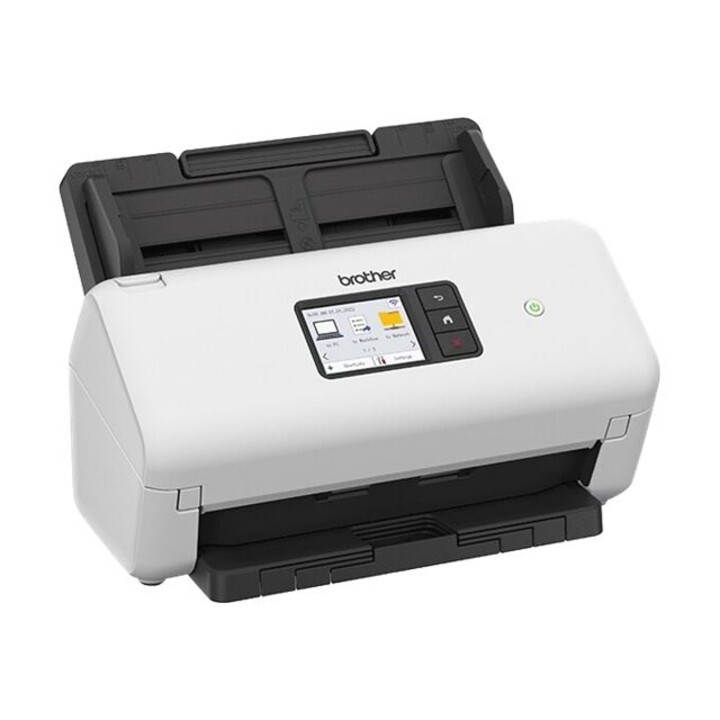

Brother Documentary Scanner Ads4500W

Brother ADS-4500W
document scanner
dual CIS
two-sided
A4
600dpi x 600dpi
up to 35 ppm (mono) / up to 35 ppm (color)
Automatic Document Feeder (ADF) (60 sheets)
up to 5250 scans per day
USB 3.0, Gigabit LAN, Wi-Fi(n), USB 2.0 (Host)

General
TypeDocument scanner – desktop
Interface TypeUSB 3.0,Gigabit LAN,Wi-Fi(n),USB 2.0 (Host)
Additional Features Email, Scan to Cloud, Scan to USB, Scan to FTP, Scan to Network Directory, Scan to PC
max size of documents supported 215.9 × 355.6 mm
Scanner
Input type Color
Grayscale depth 8 bit (256 colors)
Color depth 48-bit color
Color depth (external) 24-bit (16.7 million colors)
Optical Resolution600 dpi x 600 dpi
Interpolated resolution 1200 dpi x 1200 dpi
Auto DuplexYes
Dual CIS Scan Sensor Type
Type of lamp / light source LED
Maximum B/W document scanning speed35 ppm
Maximum color document scanning speed35 ppm
Duty cycle5250 scans per day
Scanner Speed Data35ppm – Black and White – A4
35ppm – color – A4
70 ipm – duplex – Black and white
70 ipm – duplex – color
Scanner FeaturesScan to portable USB drive,Automatic Separation,auto page size detection,skip blank pages,Auto Deskew,Remove Background,Long Document Scanning,One-Touch button,auto image rotation,7.1 LCD touch screen cm
Standards complianceTWAIN,WIA,SANE
Media handling
Maximum document size 215.9 mm x 355.6 mm
Document type supported Plain paper, business card, plastic card
Document size details supported by ADF – up to 215.9 × 355.6 mm
Document feeder type Automatic
Document storage capacity 60 sheets
Expansion / Connectivity
InterfacesUSB 2.0 (Host) – Type A
USB3.0
Gigabit-LAN
Diverse
Cables included1 x SuperSpeed USB cable
Standards ComplianceGS,WHQL,RoHS,WPA3
Feeding
Power device Internal power supply
Required voltageAC 100-240 V (50/60 Hz)
Power Consumption Operating (Standby) 25 Watts
Standby power consumption7.3 watts
Power consumption stop 1.7 watts
Software / System Requirements
Software includedPresto! BizCard 6,Presto! BizCard 7, Kofax Power PDF Standard v3
Required operating systemMicrosoft Windows 7 (32/64 bit) SP1,Microsoft Windows Server 2012,Windows 8.1 (32/64 bit),Microsoft Windows Server 2012 R2,Windows 10 (32/64 bit),Microsoft Windows Server 2016,Microsoft Windows Server 2019,Apple MacOS 10.14.x or later
Dimensions and weight
Width29.9cm
depth 19cm
Height 21.6cm
Weight2.68kg
Dimensions and weight (packaging)
Packaging width 39.1 cm
Packing depth 32 cm
Packing height 24.3 cm
Packing weight3.41kg
Manufacturers guarantee
Service and maintenance Limited warranty – 3 years – on-site
Environment Parameters
Minimum operating temperature5 °C
Maximum operating temperature35°C
Operating humidity range 20 – 80%
Sound emission59dB
