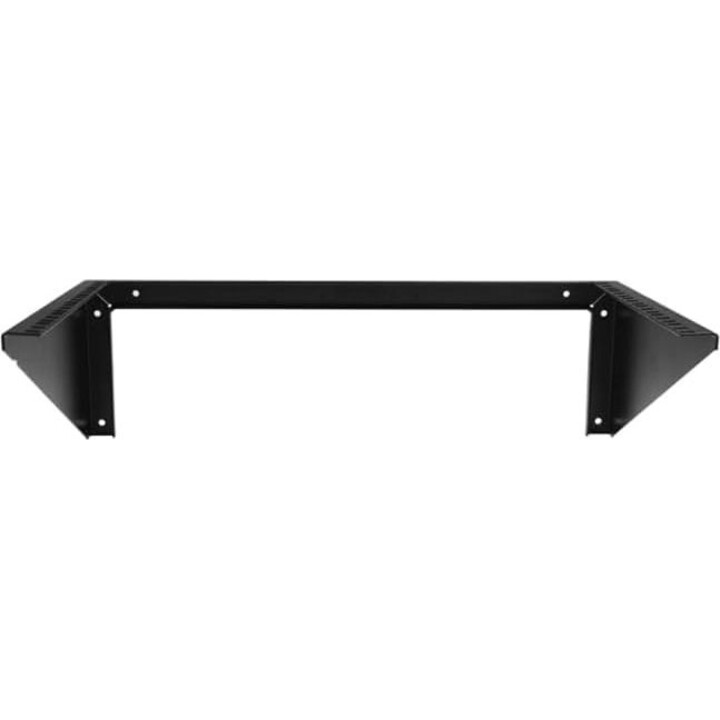

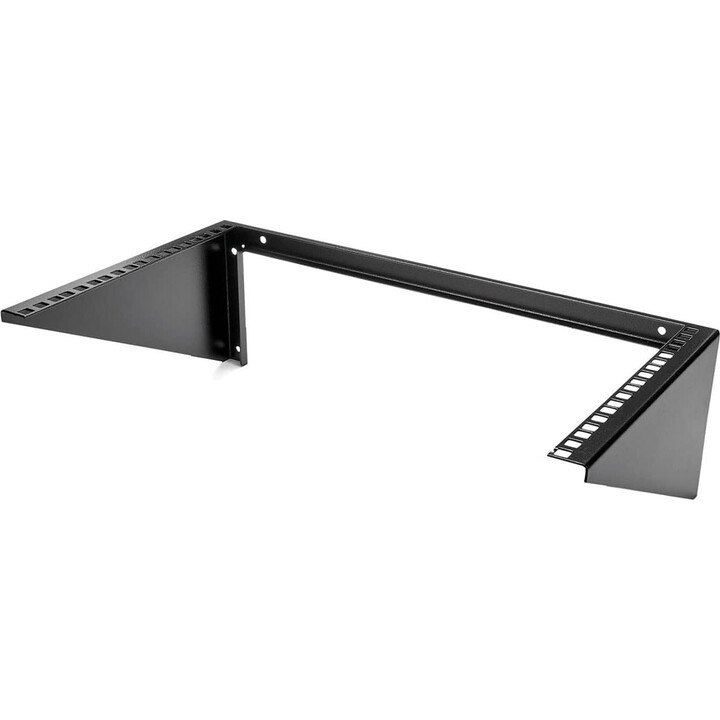

STARTECH.com RK619WALLV 6U vertical wall rack steel black

Physical Specifications

• Capacity: 6U (internal height to mount 6 rackmount units of 1U each).

• Standard width: 19 inches (483 mm), compatible with all conventional rackmount equipment.

• External dimensions: approx. 150 mm (H) x 503 mm (W) x 193 mm (D), with a low-profile design that protrudes only 19 cm (7.5 in.) from the wall.

• Maximum weight supported: up to 57 kg (125 lbs) evenly distributed.

• Material: solid steel of adequate thickness, black finish with anti-corrosion coating for prolonged indoor use.

• Rack weight empty: about 2 kg (2 kg).

Mounting and fixing

• Wall fixing holes spaced exactly 40 cm (16 inches) apart, matching standard stud spacing in drywall or similar structures.

• Includes wood screws (1½ inches) and cage nuts/cage nuts plus M6 screws to secure equipment inside the rack.

• Flexible orientation: vertical on wall (minimum depth) or horizontal under desk/ceiling for direct front access.

Technical features

• Open frame with no sides or doors, maximising passive ventilation and cable/equipment access.

• EIA-310 standard mounting slots with square holes for cage nuts on front and rear posts.

• TAA (Trade Agreements Act) compliant for government procurement in US and similar markets.

• RoHS compliant for non-toxic materials.
