Digitus Unique Series Wall Enclosure - 600 x 450 mm (W x D)

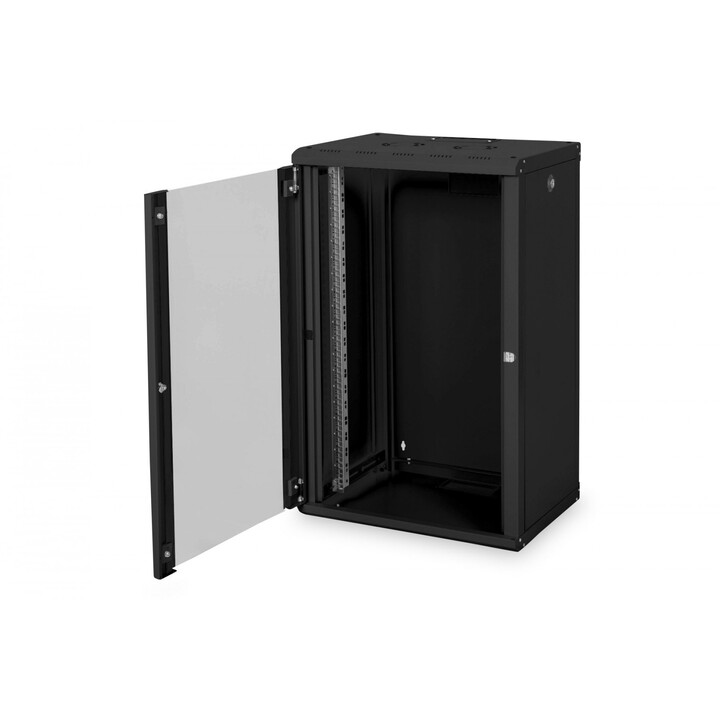

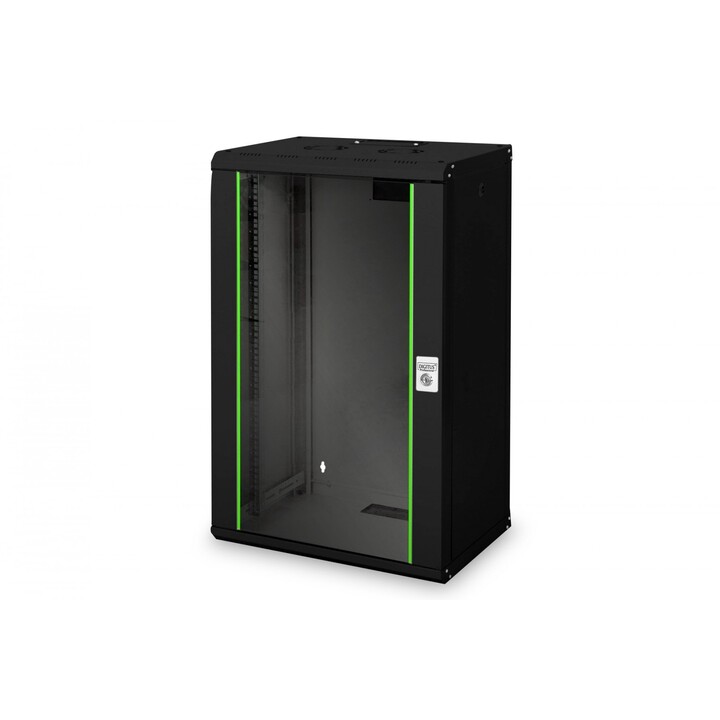

The DIGITUS 20U wall mounting cabinet (model DN-19 20-U-SW) offers a robust and secure solution for housing network and server equipment. Designed with a lockable safety-glass door framed in steel, it ensures both visibility and protection. The cabinet features 483 mm (19") galvanized profile rails mounted on the front and rear sides, adjustable in depth with height unit markings for flexible equipment installation.

With a maximum weight capacity of 100 kg and an IP20 protection rating, this cabinet is suitable for indoor environments requiring dust protection. The cabinet dimensions are 998 mm height, 600 mm width, and 450 mm depth, with a maximum installation depth of 370 mm and equipment mounting depth ranging from 305 to 370 mm.

Additional features include lockable and removable side panels, a 210° door opening angle with a 1-point locking mechanism, and multiple cable entry points onhe rear, base, and top with plastic and sliding covers. The roof is prepared for fan units with punched-out entries, and ventilation slots support active and passive airflow. Several earthing points are provided for rack components, and the cabinet comes fully assembled with an installation set including screws, cage nuts, and washers.

Manufactured in China, this black (RAL 9005) wall mounted rack is ideal for professional IT environments requiring secure, organized, and ventilated equipment housing.
