Startech 12U 19" 4 Column Server Rack Cabinet

Description

StarTech RK1236BKF Rackmount Cabinet, Freestanding Rack or Frame, Black

Securely store servers and networking/telecom equipment in this 12U server rack.

This server rack provides 12U of storage space in a secure and stylish cabinet to house EIA-310 compliant 19" rackmount devices, such as Dell, HP, and IBM servers, along with telecom and A/V equipment. The rack creates a robust storage solution that supports a total load capacity of 800 kg (1763.7 lbs).

Hassle-free equipment installation:

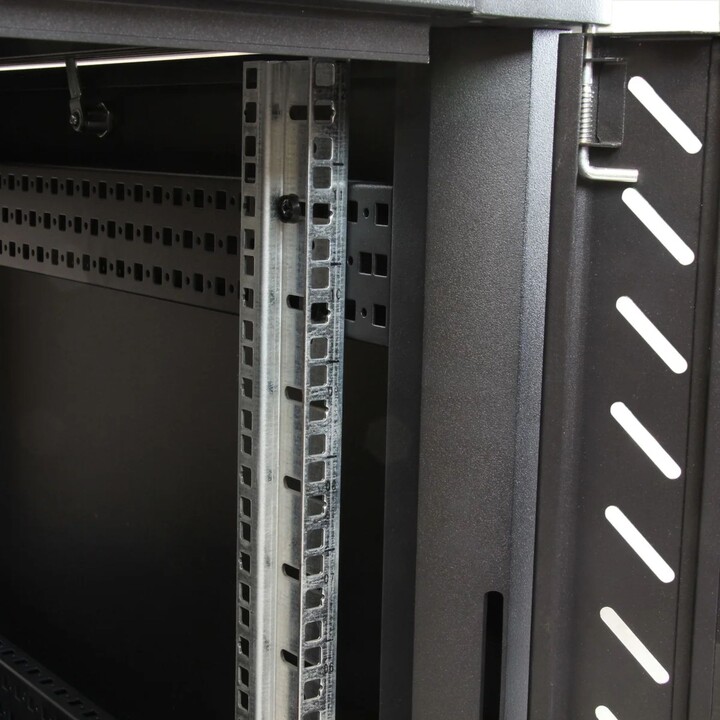

With adjustable mounting rails, you can easily change the rail depth up to 740 mm. These rails ensure the cabinet is widely compatible with your standard rackmount equipment. The added depth also provides support for additional cable and power management behind your equipment.

The rack features brushed ports in the top and bottom panels, allowing you to easily route cabling into and out of the cabinet for discreet cable management. The top and bottom panels are also removable, allowing you to customize your configuration, and the rack features... Grounding lugs allow you to ground your equipment for added protection.

Securely protect your equipment while still keeping it in view.

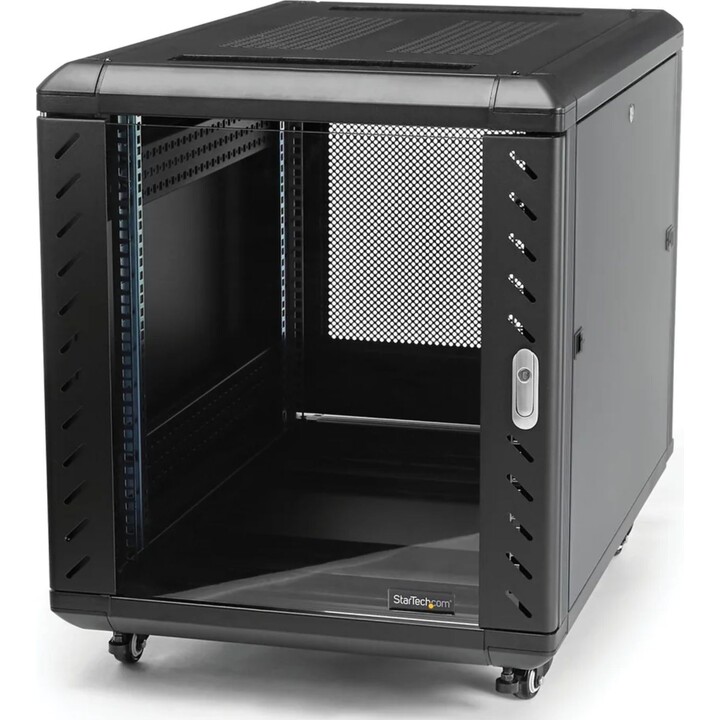

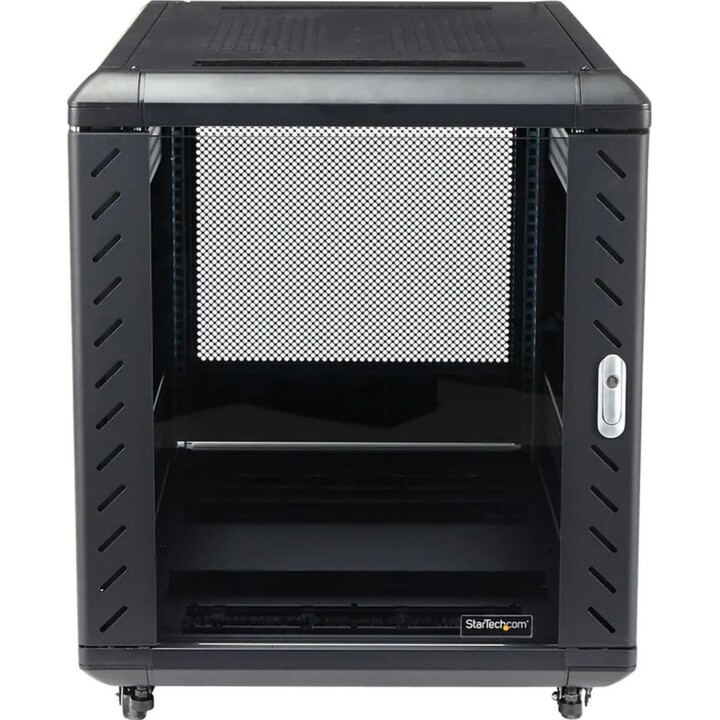

To ensure you have complete visibility of your equipment while storing it securely, this rack features a stylish glass window in the front door. The glass door looks great in any server room and gives you the freedom to clearly monitor your equipment without the hassle of opening the rack.

The rack also features removable side panels with quick-release mechanisms and independent locks, allowing you to easily access your equipment while keeping it secure.

Save money with a cost-effective and compact shipping container.

The cabinet comes flat-packed to reduce shipping volume, significantly lowering your shipping costs. Furthermore, because the rack is efficiently packaged, you can easily store the cabinet for later deployment.

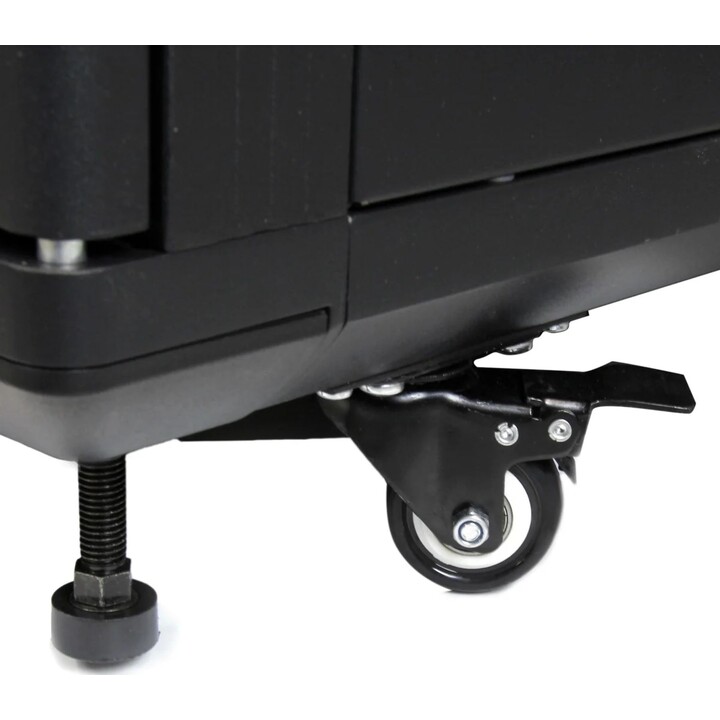

Maximum maneuverability with included casters.

The cabinet features casters that ensure easy access to rear-mounted equipment while facilitating mobility around your office, studio, or server room. The rack's width and height fit standard doorways, giving you the freedom to move your server rack to other rooms.

Ensure your equipment operates at an optimal temperature.

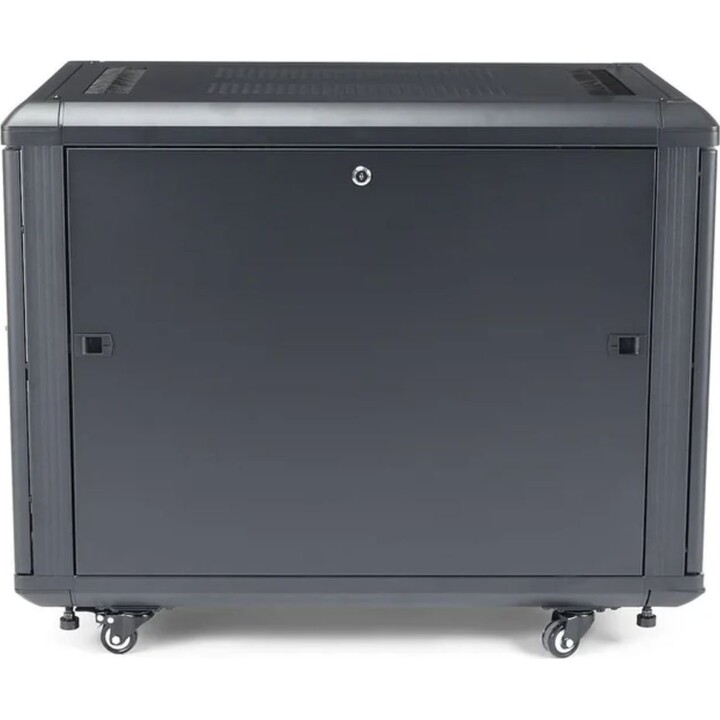

The rack's rear door is mesh, and the front glass door is vented, working together to increase airflow and provide cost-effective passive cooling that ensures your equipment operates at optimal temperatures.

The top roof panel features square vent holes compatible with cage nuts, providing mounting points that allow you to add additional equipment on top of your rack.

Features

Rack Capacity: 12U

Type: Rack or Freestanding Frame

Maximum Weight Capacity: 800 kg

Product Color: Black

Material: Aluminum, Steel

Frame Type: Closed

Product Design: 4-Post

Rear Door Structure: Aluminum

Front Door Structure: Glass

Side Panel Structure: Aluminum

Removable Rear Door: Yes

Removable Front Door: Yes

Removable Side Panels: Yes

Keyboard lock: Yes

Lockable rear door: Yes

Lockable front door: Yes

Lockable side panel: Yes

Adjustable mounting rails: No

Number of fans: 0

Cable management: No

Mounting hole shape: Square

Swivel caster: Yes

Certification: REACH

Weight and dimensions

Width: 603 mm

Depth: 900 mm

Height: 663 mm

Internal width: 60 cm

Internal depth: 74 cm

Weight: 43.5 kg

Mounting depth (min.): 14 cm

Mounting depth (max.): 74 cm

Packaging

Nuts included: Yes

Number of nuts: 20

Screws included: Yes

Number of screws: 20

Mounting kit: Yes

Package width: 734 mm

Package depth: 974 mm

Package height: 322 mm

Package weight: 52.6 kg

Technical details

Certificates of conformity: RoHS

Other features

Industry standard compliance: EIA/ECA-310-E
