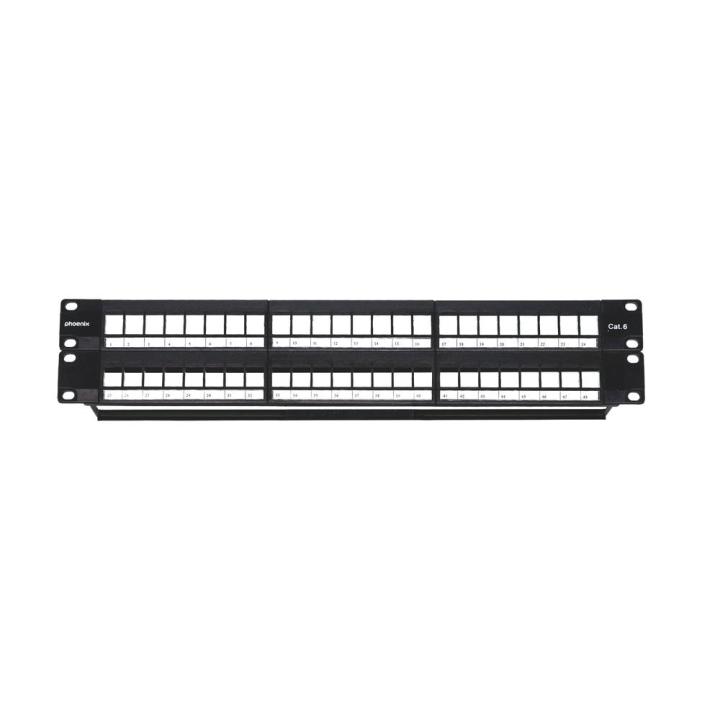

Phoenix Empty Patch Panel for 48-Port Category 6 1U Rack

Features of the Phoenix PHTN30148 48-Port CAT.6 UTP Patch Panel
The Phoenix PHTN30148 Patch Panel is a high-density patch panel designed for terminating and organizing cabling in structured networks. It integrates 48 Category 6 UTP RJ45 ports into a single rack unit, allowing for a high concentration of connections and better utilization of available space in 19" communication cabinets.
High density with 48 ports in 1U
Its high-density design allows for twice as many connections as a conventional 24-port panel while using only 1U. This configuration is particularly well-suited for main and intermediate distribution points with a large number of network connections.

Number of ports: 48
Connector type: RJ45
Rack units: 1U
Format: Standard 19"
High-density design to optimize rack space

CAT.6 for high-speed networks
The 48 RJ45 ports are compatible with Category 6 UTP cabling, a solution suitable for network installations that require stable transmission and professional cable management. As this is an unshielded panel, it is designed for UTP-based infrastructures.

Category: CAT.6
Shielding: UTP
Unshielded configuration
Suitable for structured cabling networks
Compatible with high-speed CAT.6

Termination via IDC and LSA connectors
The panel features IDC and LSA connectors for terminating twisted-pair cables. This system facilitates a secure and organized connection of the conductors at the back of the panel, simplifying installation and subsequent maintenance tasks.

Connection type: IDC / LSA
Direct termination of twisted-pair cables
Secure wiring connection
Suitable for professional installations

Compatible with T568A and T568B standards
The Phoenix PHTN30148 features color-coding for the T568A and T568B connection standards. This visual identification facilitates the correct placement of each conductor and helps maintain a consistent wiring standard throughout the infrastructure.

Compatible with the T568A wiring scheme
Compatible with the T568B wiring scheme
Color-coded identification
Facilitates the correct termination of conductors
Helps maintain a uniform and documented installation

Reinforced backplate for organizing cabling
The reinforced backplate allows cables to be secured and organized before they are connected to the panel. In addition to improving cable routing, it provides mechanical stability to the assembly and helps reduce stress on the termination points.

Rear bar for cable organization
Reinforced structure
Improves cable retention
Reduces stress on IDC connections / LSA connections
Facilitates a neat installation inside the rack

Metal construction for communications cabinets
The panel is made of sheet steel with a black finish, providing a suitable structure for integration into professional cabinets and racks. Its standard 19" format allows it to be combined with other cable distribution and management components.

Material: sheet steel
Color: black
Format compatible with 19" racks
Suitable for main and intermediate distribution points
Designed for cable termination and organization

Technical specifications

Phoenix Part Number: PHTN30148
EAN Code: 8436626133471
Type: CAT.6 UTP patch panel
Number of ports: 48 × RJ45
Category: CAT.6
Shielding: UTP, unshielded
Connection type: IDC / LSA
Wiring schemes: T568A and T568B
Wiring identification: color-coded
Cable management: reinforced rear plate
Rack units: 1U
Format: standard 19"
Material: sheet steel
Color: black
Certifications: CE and RoHS
