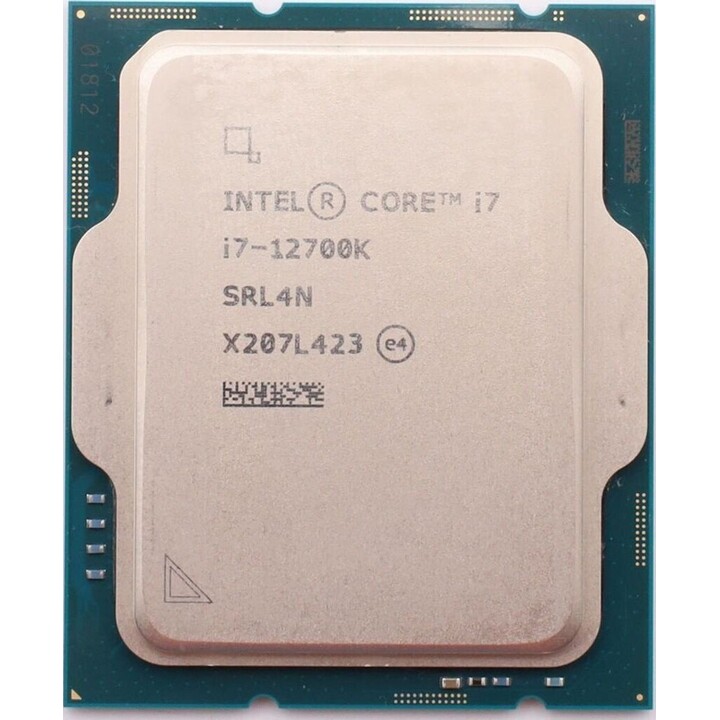

CM8071504553828 Intel Core i7-12700K 5.0GHz Socket 1700 Tray

Cores, frequencies and architecture

• 12 hybrid cores and 20 threads: 8 Performance-cores (P-cores) + 4 Efficient-cores (E-cores), combining high performance in demanding tasks with efficiency in light loads.

• Maximum turbo frequency of 5.0 GHz with Intel Turbo Boost Max 3.0 on the P-cores, ideal for gaming and demanding single-core tasks.

• Base frequency of 3.6 GHz on P-cores and 2.7 GHz on E-cores, with turbo up to 4.9 GHz (P) and 3.8 GHz (E), offering ample headroom for dynamic performance.

Cache, power consumption and temperature

• 25 MB of Intel Smart Cache (L3) and 12 MB of total L2 cache, improving response times in heavy applications and multitasking.

• Base power of 125 W and maximum turbo power of around 190 W, designed for systems with good cooling and quality power supplies.

• Manufactured on Intel 7 (10 nm) process with maximum junction temperature around 100 °C, typical for modern high-end systems.

Platform and memory

• Socket LGA1700, compatible with 600 and 700 series chipsets (depending on board), offering support for the latest desktop platforms.

• Dual-channel memory controller supporting DDR5-4800 and DDR4-3200, up to 128GB of RAM, allowing flexible configurations for gaming and professional work.

• Supports up to PCI Express 5.0 (via platform) for graphics cards and next-generation SSDs, improving overall available bandwidth.

Integrated graphics and recommended usage

• Includes Intel UHD Graphics 770, sufficient for office use, multimedia, multi-monitor support and use of the platform without dedicated GPU for light tasks.

• In tray form factor, aimed at integrators and assemblers looking for an unlocked processor for overclocking high-performance equipment.
