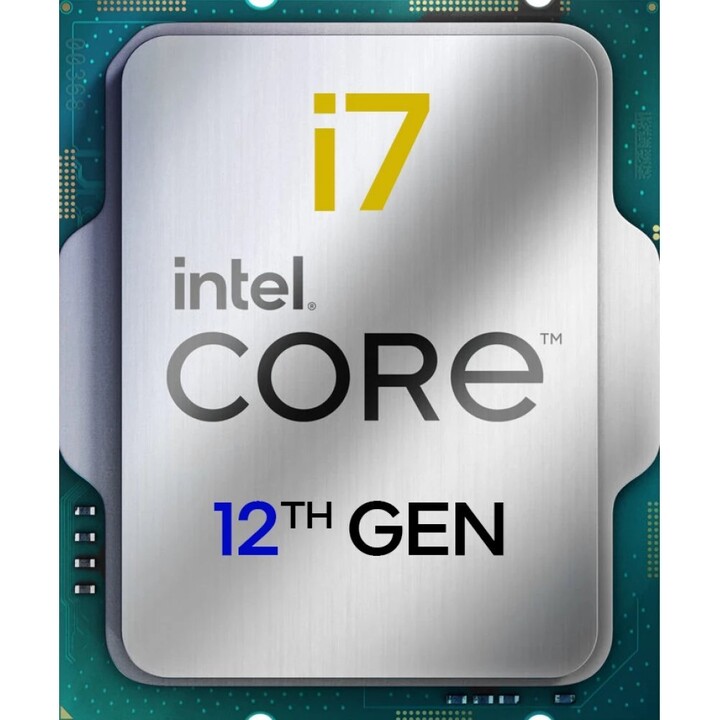

Intel Core i7-12700T 4.9GHz Socket 1700 Tray

Cores, frequencies and architecture

• 12 cores / 20 threads: 8 Performance-cores (P) and 4 Efficient-cores (E) with Intel Thread Director to assign tasks according to load and efficiency.

• Maximum turbo frequency of up to 4.7 GHz on P-cores (and up to 3.4 GHz on E-cores), with very low base frequencies of 1.4 GHz (P) and 1.0 GHz (E) to prioritise energy efficiency.

Cache, power consumption and temperature

• 25 MB of Intel Smart Cache (L3) and 12 MB of total L2 cache, optimised for multitasking and mixed loads.

• Base power of only 35W and maximum turbo power of around 99W, ideal for SFF, All-in-One or quiet PCs with moderate cooling.

Memory and platform

• Supports up to 128GB of dual-channel RAM, with DDR5 up to 4800 MT/s or DDR4 up to 3200 MT/s, including ECC memory support depending on motherboard.

• Socket FCLGA1700, compatible with Alder Lake desktop platforms (600/700 series, depending on manufacturer and BIOS).

Integrated graphics and outputs

• Includes Intel UHD Graphics 770 with base frequency of 300 MHz and turbo up to 1.5 GHz, sufficient for desktop, multimedia and up to 4 simultaneous displays.

• Supports eDP 1.4b, DisplayPort 1.4a and HDMI 2.1 outputs through the motherboard, with technologies such as Intel Quick Sync Video and Clear Video HD.
