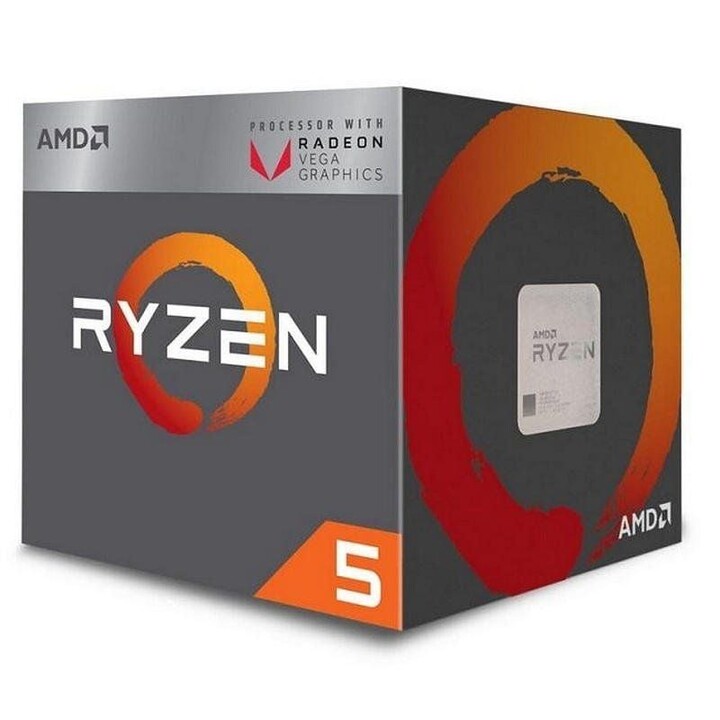

AMD Ryzen 5-3400G 3.70GHz Socket AM4 Processor

AMD Ryzen 5-3400G

Built to perform. Engineered to win. More speed. More memory. Greater bandwidth. Push them to the limit, squeeze every last drop of performance out of them, take them to the edge. 3rd Gen AMD Ryzen processors were designed to exceed all expectations and set a new standard for high-performance processors.

3rd generation AMD Ryzen processors are born from the world´s most advanced manufacturing technology to ensure winning performance and an amazingly cool and quiet system.

Specs

• Name: AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
• Family: Ryzen
• Series: Ryzen 3000 Series
• Format: Desktop computers, Boxed processor
• Market Segment: Mainstream Desktop
• AMD PRO Technologies: No
• Regional availability: Global, China, ND, EMEA, APJ, LATAM
• Code name: Picasso
• Processor architecture: Zen+
• Number of CPU cores: 4
• Multiple threads (SMT): Yes
• Number of subprocesses: 8
• Maximum turbo clock: Up to 4.2 GHz
• Base clock: 3.7 GHz
• L1 cache: 384 KB
• L2 Cache: 2 MB
• L3 cache: 4 MB
• Default TDP: 65 W
• Configurable TDP (cTDP): 45-65W
• Processor technology: 12 nm FinFET
• Chip size (CCD): 210 mm²
• Number of chips in the package: 1
• Total transistor count: 4.94 billion
• Unlocked for overclocking: Yes
• CPU socket: AM4
• Compatible Chipsets: X570, X470, X370, B450, B350, A320
• Boost Technology: Precision Boost 2
• Instruction set: x86-64
• Supported extensions: AES, AMD-V, AVX, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal solution (boxed product): AMD Wraith Spire
• Thermal solution (MPK): AMD Wraith Spire
• Maximum temperature (Tjmax): 95°C
• OS Support: Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit
• USB 3.2 Gen 2 (10 Gbps) native: 0
• USB 3.2 Gen 1 (5 Gbps) native: 4
• Native USB 2.0 (480 Mbps): 0
• Native SATA ports: 0
• PCI Express® version: PCIe® 3.0
• Native PCIe® lanes (total/usable): 20 / 16
• Additional PCIe lanes from the motherboard: X470: 2x Gen 3, 8x Gen 2
• NVMe compatibility: Boot, RAID0, RAID1, RAID10
• Memory type: DDR4
• Memory channels: 2
• Maximum memory: 64GB
• Module type: UDIMM
• Maximum memory speed: 2x1R DDR4-2933; 2x2R DDR4-2667; 4x1R DDR4-2133; 4x2R DDR4-1866
• ECC compatibility: Yes (requires board support)
• Integrated graphics card model: Radeon™ RX Vega 11 Graphics
• No. of graphics cores: 11
• Total Graphics Shaders: 704
• Graphics frequency: 1400 MHz
• Maximum GPU memory: 2 GB
• WDDM version: 2.7
• DirectX®: 12
• OpenGL®: 4.6
• OpenCL™: 2.2
• DisplayPort™: 1.4a
• DisplayPort Extensions: Adaptive-Sync, HBR3, HDR Metadata
• Maximum SDR frequencies per DisplayPort: 3840x2160 @ 60Hz; 3440x1440 @ 144Hz; 2560x1440 @ 180Hz; 1920x1080 @ 240Hz
• Maximum HDR frequencies via DisplayPort: 3840x2160 @ 60Hz; 3440x1440 @ 60Hz; 2560x1440 @ 60Hz; 1920x1080 @ 120Hz
• HDMI®: 2.0
• HDCP: 2.2
• USB Type-C® Alt Mode DisplayPort™: Yes
• Multi-monitor compatibility: Yes
• Maximum number of screens: 3
• AMD FreeSync™: Yes
• AMD Eyefinity SLS: No
• Wireless Display: Miracast
• Maximum video encoding bandwidth (SDR): 1080p205 H.264 8bpc; 1440p115 H.264 8bpc; 2160p51 H.264 8bpc; 1080p205 H.265 8bpc; 1440p115 H.265 8bpc; 2160p51 H.265 8bpc
• Maximum video decoding bandwidth: 1080p60 MPEG2; 1080p60 VC1; 1080p240 VP9 8bpc/10bpc; 1080p240 H.264; 1080p240 H.265 8bpc/10bpc; 1080p240 JPEG 8bpc
• Security: AMD Enhanced Virus Protection (NX bit) — Yes
