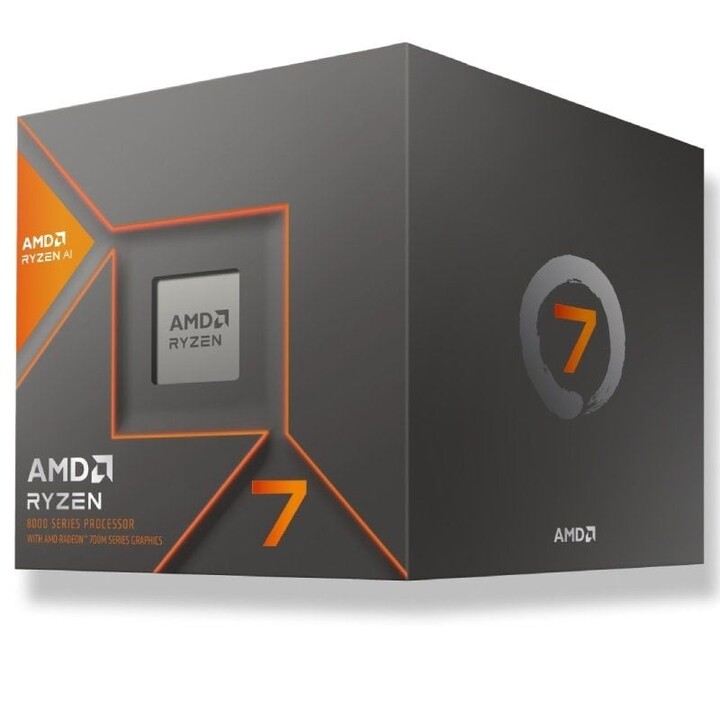

AMD Ryzen 7-8700G 4.2GHz Socket AM5 Processor

AMD Ryzen 7 8700G

The AMD Ryzen 7 8700G with AMD Ryzen AI is the best all-in-one desktop processor with AMD Radeon 780M graphics.

Specs

• Name
• AMD Ryzen 7 8700G
• Family
• Ryzen
• Series
• Ryzen 8000 Series
• Format
• Desktop computers
• Previous code name
• Phoenix
• Architecture
• Zen 4
• Number of CPU cores
• 8
• Multithreading (SMT)
• Yeah
• Number of threads
• 16
• Maximum turbo clock
• Up to 5.1 GHz
• Base clock
• 4.2 GHz
• L2 cache
• 8 MB
• L3 cache
• 16 MB
• Default TDP
• 65W
• AMD Configurable TDP (cTDP)
• 45-65W
• Processor technology for CPU cores
• TSMC 4nm FinFET
• CPU Processing Chip (CCD) Size
• 178mm?
• Package chip count
• 1
• Unlocked for overclocking
• Yeah
• AMD EXPO? Memory Overclocking Technology
• Yeah
• Precision Boost Overdrive
• Yeah
• Curve Optimizer Voltage Offsets
• Yeah
• AMD Ryzen Master Support
• Yeah
• CPU socket
• AM5
• Supporting Chipsets
• A620, X670E, X670, B650E, B650, X870E,
• CPU Boost Technology
• Precision Boost 2
• Instruction set
• x86-64
• Supported extensions
• AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Maximum operating temperature (Tjmax)
• 95°C
• * OS Compatibility
• Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Connectivity
• Native USB 4 (40Gbps)
• 2
• Native USB 3.2 Gen 2 (10Gbps)
• 2
• Native USB 2.0 (480Mbps)
• 1
• PCI Express? Version
• PCIe? 4.0
• Native PCIe? Lanes (Total/Usable)
• 20 , 16
• NVMe support
• Boot , RAID0 , RAID1
• System memory type
• DDR5
• Maximum memory
• 256 GB
• System Memory Subtype
• UDIMM
• Maximum memory speed
• 2x1RDDR5-5200
• 2x2RDDR5-5200
• 4x1RDDR5-3600
• 4x2RDDR5-3600
• Graphics card compatibility
• Graphics card model
• AMD Radeon 780M
• Graphics card core count
• 12
• Graphics card frequency
• 2900 MHz
• DirectX? Version
• 12
• DisplayPort? Version
• 2.1
• DisplayPort Extensions
• Adaptive-Sync, HDR Metadata, UHBR10
• DisplayPort Max Refresh Rates (SDR)
• 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz
• DisplayPort Max Refresh Rates (HDR)
• 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz
• HDMI? Version
• 2.1
• HDCP Version Supported
• 23
• USB Type-C? DisplayPort? Alternate Mode
• Yeah
• Multiple monitor support
• Yeah
• Max Displays
• 4
• AMD FreeSync?
• Yeah
• Wireless Display
• Miracast
• Max Video Encode Bandwidth (SDR)
• 1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
• Max Video Decode Bandwidth
• 1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
• AMD SmartAccess Memory
• Available
• AI Engine Capabilities
• Brand Name
• AMD Ryzen AI
• AMD Ryzen AI
• Available
• Performance
• Up to 16 TOPS
• Security, Virtualization, and Manageability
• AMD Enhanced Virus Protection (NX bit)
• Yeah
