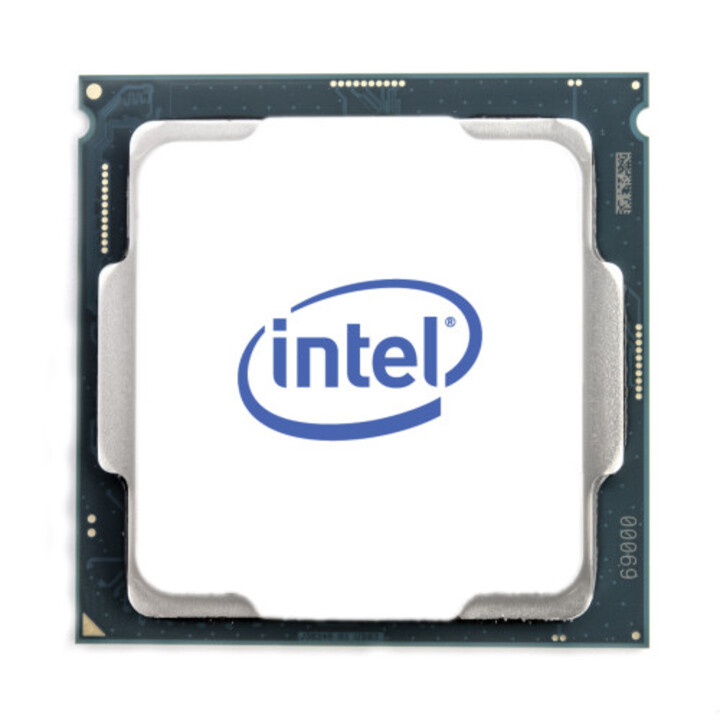

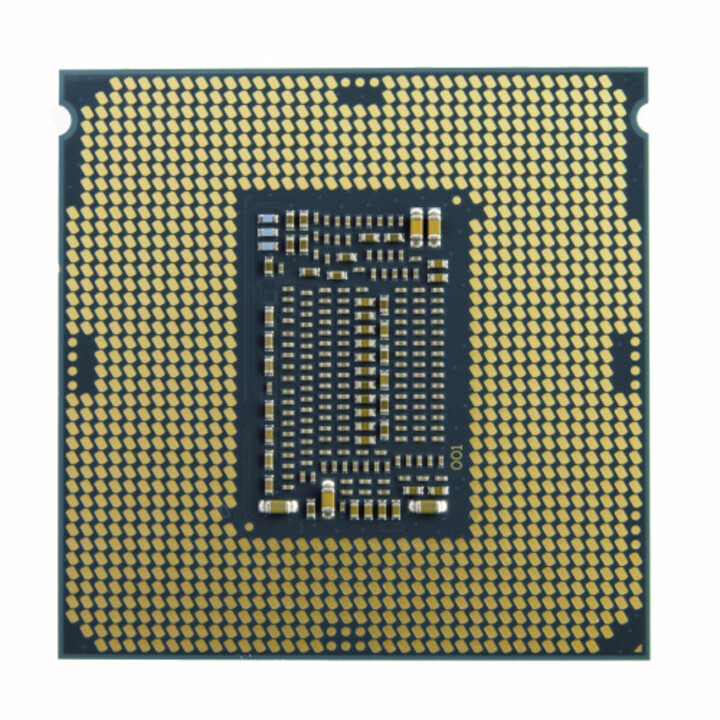

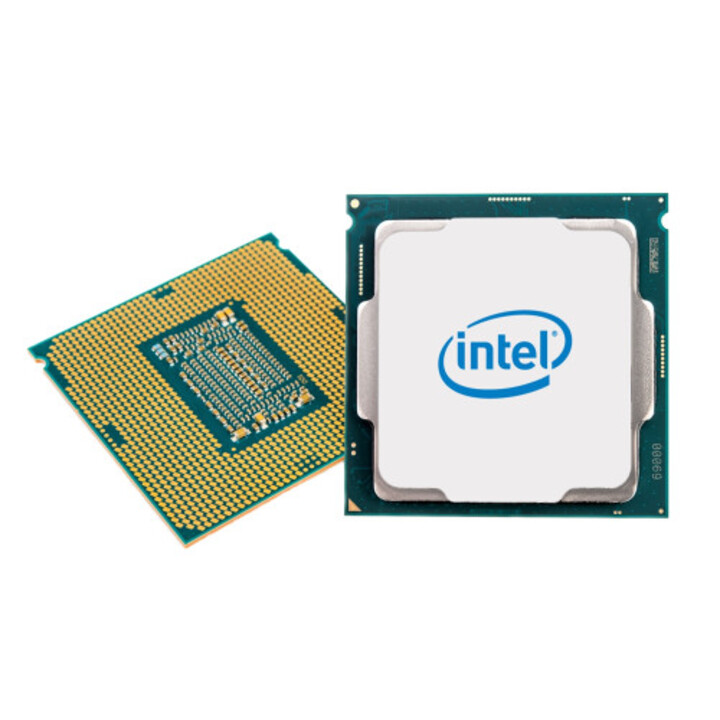

Intel Xeon E-2356g Processor 3.2 Ghz 12 Mb Smart Cache

INTEL

Specs:

- Processor base frequency: 3.2 GHz
- Processor manufacturer: Intel
- Processor family: Intel Xeon E
- Number of processor cores: 6
- Processor socket: LGA 1200
- Component for: Server/Workstation
- Processor lithography: 14 nm
- Box: No
- Refrigerator included: No
- Processor model: E-2356G
- Number of processor filaments: 12
- Operating processor mode: 64-bit
- Processor cache: 12 MB
- Processor turbo frequency: 5 GHz
- Processor cache type: Smart Cache
- System bus data transfer rate: 8 GT/s
- Memory channels: Dual-channel
- Maximum internal memory supported by the processor: 128GB
- Memory types supported by the processor: DDR4-SDRAM
- ECC: Yes
- CPU size: 37.5 x 37.5 mm
- Thermal design power (TDP): 80 W
- Intersection T: 100 °C
- Supported memory types: DDR4-SDRAM
- Release date: Q3 21
- Status: Launched
- Maximum internal memory: 128GB
- Built-in graphics adapter: Yes
- Discrete graphics adapter: No
- Graphics Card: Intel® Graphics
- Discrete Graphics Adapter Model: Not Available
- 4K built-in graphics adapter support: Yes
- Maximum built-in graphics adapter memory: 64GB
- Built-in graphics base frequency: 350 MHz
- Built-in graphics adapter dynamic frequency (max): 1300 MHz
- Built-in graphics adapter OpenGL version: 4.5
- Built-in graphics adapter refresh rate at maximum resolution (DisplayPort): 60 Hz
- Built-in graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
- Built-in graphics adapter refresh rate at maximum resolution (HDMI): 60 Hz
- Number of execution units: 32
- Maximum Enclave Size Support for Intel® SGX: 0.5 GB
- Intel® Turbo Boost Technology 2.0 frequency: 5 GHz
- Intel® Transactional Synchronization Extensions: No
- Intel Hyper-Threading: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel Enhanced SpeedStep Technology: Yes
- Intel® Trusted Execution Technology: Yes
- Intel® Memory Protection Extensions (Intel® MPX): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® OS Guard: Yes
- Intel® Software Guard Extensions (Intel® SGX): Yes
- Intel® 64: Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® Boot Guard: Yes
- Suitability for Intel® vPro™ platform: Yes
- Intel® Optane™ DC persistent memory supported: No
- Intel® Quick Sync Video Technology: Yes
- Intel® InTru™ 3D Technology: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® Clear Video Technology: Yes
- Export Control Classification Number (ECCN): 5A992CN3
- Commodity Classification Automated Tracking System (CCATS): G167599
- Execute Disable Bit: Yes
- Idle states: Yes
- Intel Thermal Monitoring Technology: Yes
- Maximum number of PCI Express buses: 20
- PCI Express Entry Version: 4.0
- PCI Express configurations: 1x16+1x4, 2x8+1x4, 1x8+3x4
- Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0, AVX-512
- Scalability: 1S
- CPU Configuration (Maximum): 1
- Harmonization System (HS) Code: 8542310001
- Market segment: Server
