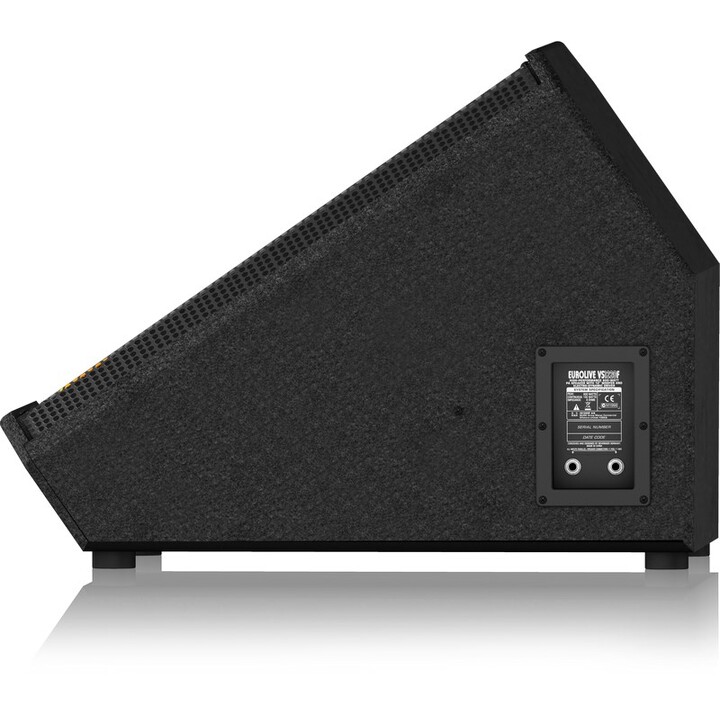

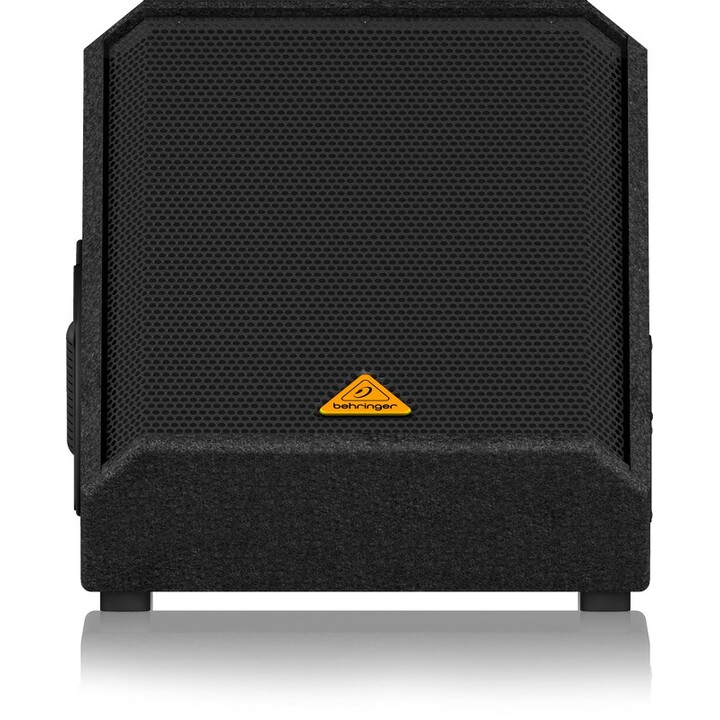

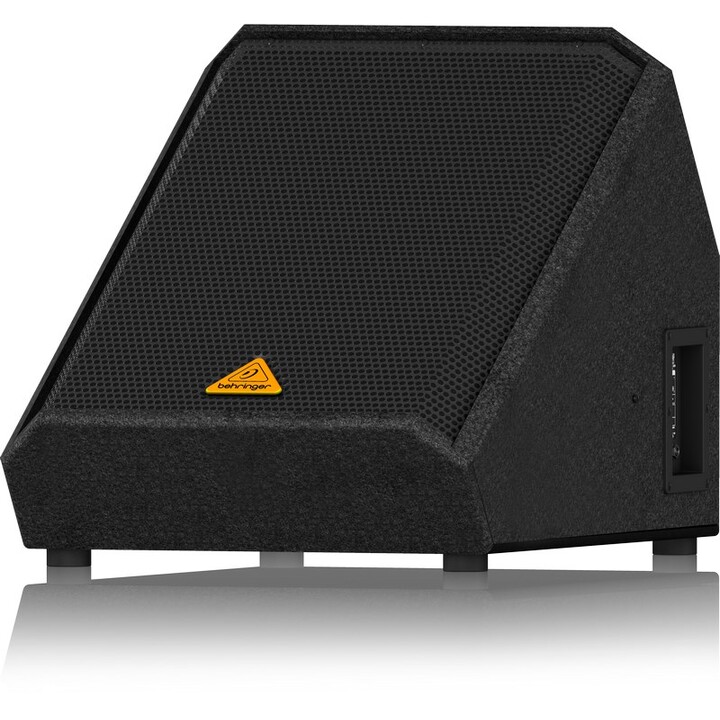

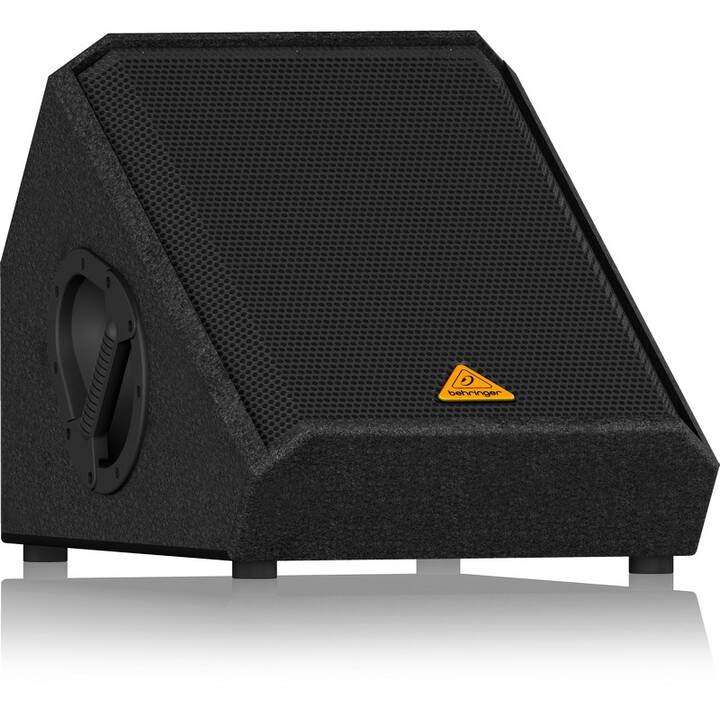

Behringer VS1220F 2-Way PA Speaker
- 400W peak power handling (200W continuous)
- 12" high-power woofer with 2" voice coil
- 1.35" titanium diaphragm compression driver
- 90° x 50° elliptical waveguide horn
- Frequency response: 55Hz - 20kHz (-10dB)
Behringer VS1220F 2-Way PA Speaker
The Behringer VS1220F is a high-performance 2-way passive PA speaker designed for professional live sound reinforcement. Featuring a 12" high-power woofer with a 2" voice coil and a 1.35" titanium diaphragm compression driver, it delivers clear, powerful audio with a frequency response of 55Hz to 20kHz. The 90° x 50° elliptical waveguide horn ensures even coverage across the listening area.
With a peak power handling of 400W (200W continuous) and an impedance of 8 ohms, the VS1220F is suitable for use with a wide range of amplifiers. The rugged plywood enclosure with a durable black carpet finish provides reliable performance on the road. Built-in pole mount socket and ergonomic handles make setup and transport easy.
| Type | 2-way passive PA speaker |
| Woofer | 12" high-power woofer with 2" voice coil |
| HF Driver | 1.35" titanium diaphragm compression driver |
| Horn Coverage | 90° x 50° elliptical waveguide |
| Power Handling | 400W peak / 200W continuous |
| Impedance | 8 ohms |
| Frequency Response | 55Hz - 20kHz (-10dB) |
| Sensitivity | 97 dB SPL (1W/1m) |
| Max SPL | 123 dB peak |
| Connectors | 2 x Speakon NL4 |
| Enclosure | Plywood with black carpet finish |
| Dimensions (HxWxD) | 24.4" x 15.7" x 13.8" (620 x 400 x 350 mm) |
| Weight | 41.9 lbs (19 kg) |
