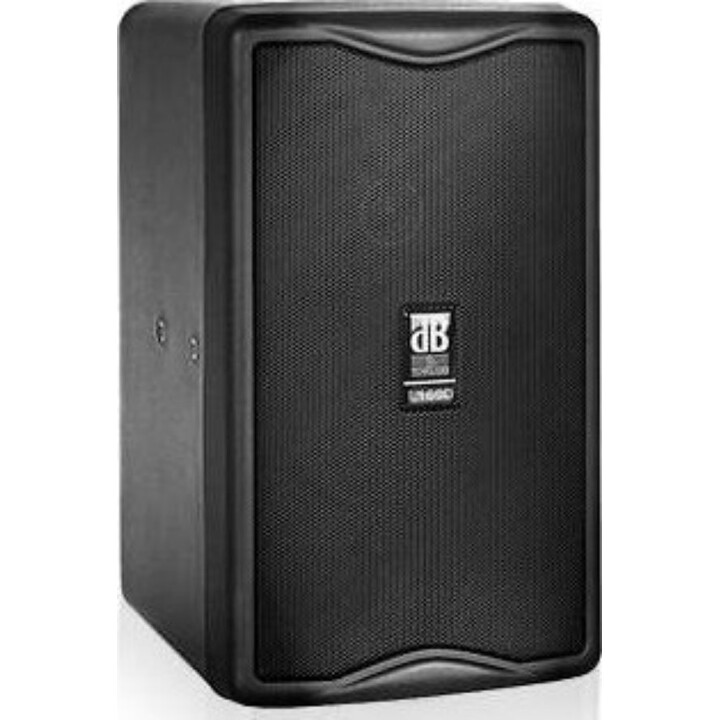

The dBTechnologies L 160 D is a compact active column loudspeaker designed for portable PA and installation applications. It features two 5" neodymium woofers and a 1" compression driver, delivering clear and powerful sound with a frequency response of 70 Hz to 20 kHz. The built-in Class-D amplifier provides 160W RMS (320W peak) and includes a DSP with four selectable presets for different use cases, such as music, speech, or monitor mode.

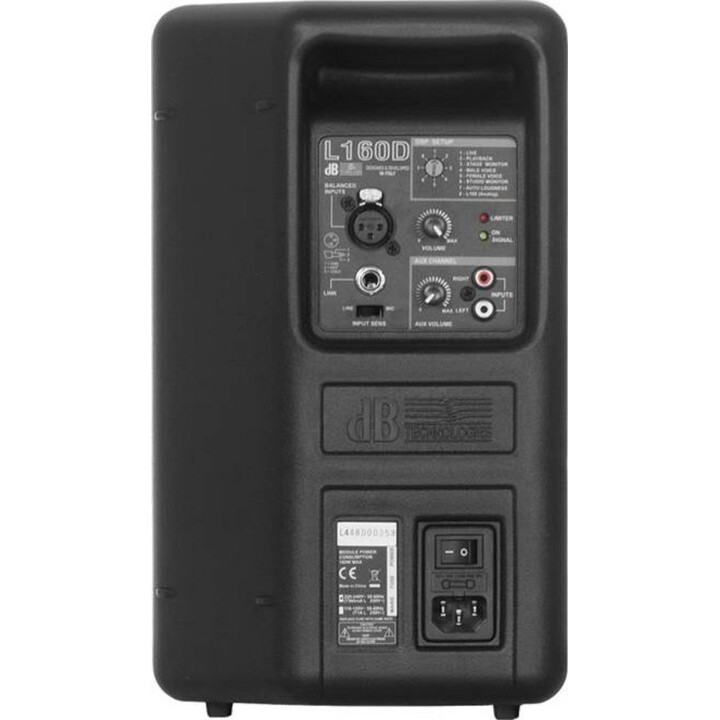

With a 120° horizontal dispersion pattern, the L 160 D ensures wide coverage for audiences. The enclosure is made of lightweight polypropylene and includes a 35 mm pole mount socket for easy setup on speaker stands. The total weight is only 8.5 kg, making it highly portable. The speaker also features a rugged metal grille and a rear panel with XLR/Jack combo input and link output for daisy-chaining.
| Type | Active column loudspeaker |
| Woofer | 2x 5" neodymium |
| Tweeter | 1" compression driver |
| Amplifier | Class-D, 160W RMS / 320W peak |
| Frequency Response | 70 Hz - 20 kHz |
| Dispersion | 120° horizontal x 60° vertical |
| DSP | 4 presets (Music, Speech, Monitor, Off) |
| Input | XLR/Jack combo |
| Output | XLR link |
| Enclosure | Polypropylene |
| Mounting | 35 mm pole mount socket |
| Dimensions (HxWxD) | 540 x 160 x 220 mm |
| Weight | 8.5 kg |
| Brand | dBTechnologies |
|---|---|
| Country | Italy |
| Address of origin | Via Brodolini, 8, Loc. Crespellano, 40053 Valsamoggia (BO), Italy |
| EU responsible person | AEB INDUSTRIALE s.r.l. |
| Address | Via Brodolini, 8, Loc.Crespellano, 40053 Valsamoggia (BO) |
| [email protected] | |
| Phone | +39 051 96 98 70 |
