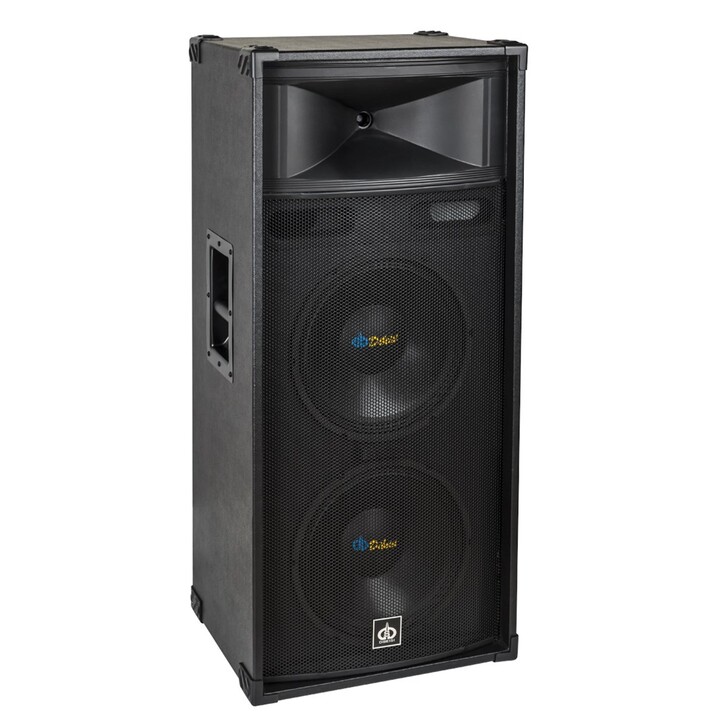

Stage loudspeaker Q1224
Stage loudspeaker Q1224
The Dibeisi Q1224 is a high-performance passive stage loudspeaker designed for professional sound reinforcement. Featuring a 12-inch woofer with a 2.5-inch voice coil and a 1-inch compression driver coupled to a 90°x60° constant directivity horn, this speaker delivers clear, powerful audio across a wide frequency range. With a peak power handling of 1200W and a sensitivity of 98dB, the Q1224 is ideal for live music, DJ setups, and public address systems.
Constructed with a durable plywood enclosure and a rugged textured finish, the Q1224 is built to withstand the rigors of touring and installation. The speaker includes dual Neutrik speakON connectors for easy daisy-chaining, a built-in pole mount socket, and multiple M10 rigging points for flexible deployment. Whether used as a main PA or a stage monitor, the Dibeisi Q1224 offers reliable performance and excellent sound quality.
| Type | Passive 2-way stage loudspeaker |
| Woofer | 12" (300mm) with 2.5" (64mm) voice coil |
| HF Driver | 1" (25mm) compression driver |
| Horn Coverage | 90° horizontal x 60° vertical |
| Power Handling (RMS) | 600W |
| Power Handling (Peak) | 1200W |
| Impedance | 8Ω |
| Sensitivity (1W/1m) | 98dB |
| Frequency Response | 55Hz - 20kHz (-10dB) |
| Crossover Frequency | 2.5kHz |
| Enclosure Material | 15mm plywood |
| Finish | Black textured paint |
| Connectors | 2 x Neutrik speakON NL4 |
| Rigging Points | 10 x M10 threaded inserts |
| Pole Mount | 35mm socket |
| Dimensions (HxWxD) | 600 x 380 x 360 mm |
| Weight | 18.5 kg |
| Brand | Dibeisi |
|---|---|
| Country | China |
| Address of origin | No.1515 Zhou'an Road, Economic Development Zone, Jiaxing, Zhejiang, China |
| EU responsible person | DIBEISI Electroacoustics Co.,Ltd. |
| Address | Calle Pedro Duque,1 Módulo 6B 28814 Daganzo de Arriba - Madrid |
| [email protected] | |
| Phone | +34 912844705 |
