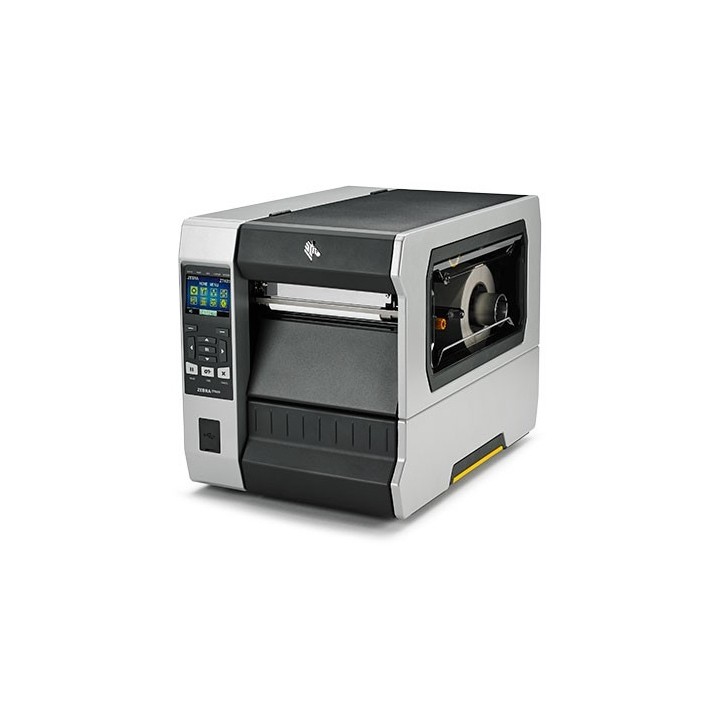

Zebra ZT620 TT Printer
The Zebra ZT620 TT is a next-generation industrial thermal transfer label printer built to handle demanding production environments. Part of the ZT600 Series, it combines reinforced durability with exceptional performance, making it a reliable choice for high-volume printing. Its sturdy steel structural components withstand extreme temperatures, dust, dirt, and other challenging industrial conditions, ensuring 24/7 reliability.
With a maximum resolution of 203 x 203 DPI and a maximum print width of 16.8 cm, the ZT620 TT delivers clear, consistent labels. It supports a wide range of barcode symbologies, including 1D, 2D, AZTECCODE, CODABAR, Code 128, QR Code, and many more. The printer features a 4.3-inch color LCD display for easy setup and monitoring, and its metal housing protects the internal components in tough environments.
Connectivity options include Ethernet, USB (3 USB 2.0 ports), RS-232, and Bluetooth 4.0, allowing flexible integration into existing systems. With 1024 MB of internal memory and 2048 MB of flash memory, plus an 800 MHz processor, the ZT620 TT handles complex print jobs efficiently. The Link-OS software platform provides cloud access and remote management capabilities for full visibility and control.
Características principales
- Thermal transfer printing technology with 203 x 203 DPI resolution
- Maximum print width: 16.8 cm; ribbon width: 17.4 cm; ribbon length: 450 m
- Maximum roll diameter: 20.3 cm; core diameter: 7.62 cm; media thickness: 0.058 - 0.25 mm
- Connectivity: Ethernet, USB (3x USB 2.0), RS-232, Bluetooth 4.0; Wi-Fi not included
- 4.3" (10.9 cm) color LCD display; 1024 MB internal memory; 2048 MB flash; 800 MHz processor
- Metal housing in black and gray; dimensions: 341.4 mm (W) x 505 mm (D) x 395.7 mm (H); weight: 26 kg
- Input voltage: 90 - 265 V AC, 47 - 63 Hz; operating temperature: 5 - 40 °C; storage temperature: -30 - 60 °C
Especificaciones técnicas
| Printing technology | Thermal transfer |
| Maximum resolution | 203 x 203 DPI |
| Maximum print width | 16.8 cm |
| Vertical printing | Yes |
| Rotated printing | Yes |
| Ribbon width | 17.4 cm |
| Ribbon length | 450 m |
| Maximum roll diameter | 20.3 cm |
| Media thickness | 0.058 - 0.25 mm |
| Core diameter | 7.62 cm |
| Connectivity technology | Wireless and wired |
| Ethernet | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| USB port | Yes |
| Number of USB 2.0 ports | 3 |
| RS-232 port | 1 |
| Page description languages | ZPL, ZPL II |
| Internal memory | 1024 MB |
| Flash memory | 2048 MB |
| Built-in processor | Yes |
| Number of characters | 16 |
| Processor frequency | 800 MHz |
| Product color | Black, Gray |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Color display | Yes |
| Housing material | Metal |
| AC input voltage | 90 - 265 V |
| AC input frequency | 47 - 63 Hz |
| Operating relative humidity | 20 - 85% |
| Storage relative humidity | 20 - 85% |
| Operating temperature range | 5 - 40 °C |
| Storage temperature range | -30 - 60 °C |
| Width | 341.4 mm |
| Depth | 505 mm |
| Height | 395.7 mm |
| Weight | 26 kg |
| Type | Stand |
| Barcode symbologies | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
Preguntas frecuentes
What printing technology does the Zebra ZT620 TT use?
It uses thermal transfer printing technology, which requires a ribbon. The maximum resolution is 203 x 203 DPI.
What connectivity options are available?
The printer includes Ethernet, USB (3 USB 2.0 ports), RS-232, and Bluetooth 4.0. Wi-Fi is not included.
What are the dimensions and weight of the printer?
The Zebra ZT620 TT measures 341.4 mm in width, 505 mm in depth, and 395.7 mm in height. It weighs 26 kg.
What is the maximum print width and media roll size?
The maximum print width is 16.8 cm. It supports a maximum roll diameter of 20.3 cm and a core diameter of 7.62 cm. Media thickness can range from 0.058 to 0.25 mm.
Es para ti si...
- You need a robust industrial label printer for high-volume, continuous operation.
- You require thermal transfer printing with 203 dpi resolution and a wide print width of 16.8 cm.
- You need multiple connectivity options including Ethernet, USB, RS-232, and Bluetooth 4.0.
- You value a durable metal housing and a color LCD display for easy monitoring.
- You work in environments with dust, dirt, or temperature variations (operating range 5 - 40 °C).
