Thermal transfer printer (74m) zd2
- Print method: Thermal Transfer / Direct Thermal
- Print resolution: 203 dpi (8 dots/mm)
- Max print width: 104 mm (4.09 in)
- Max print speed: 152 mm/s (6 in/s)
- Ribbon capacity: 74 m (243 ft)
Thermal transfer printer (74m) zd2

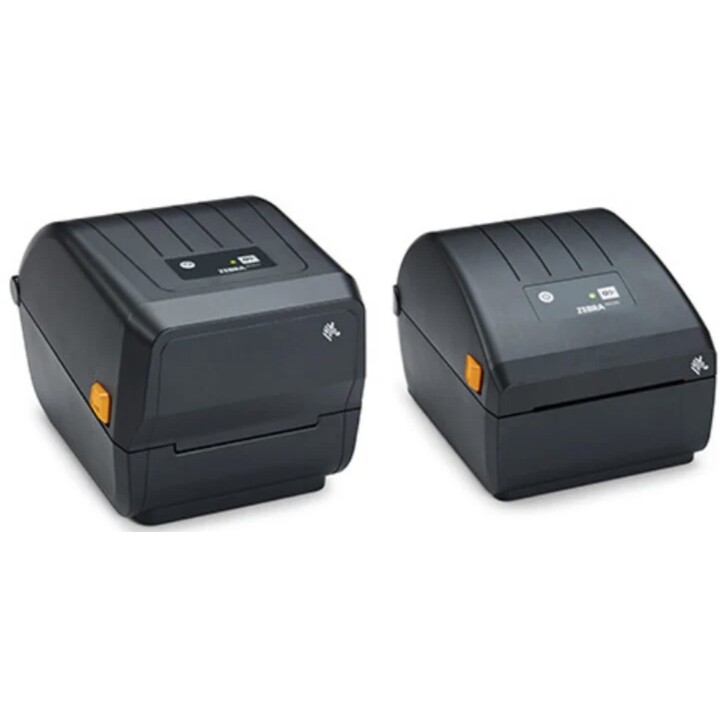

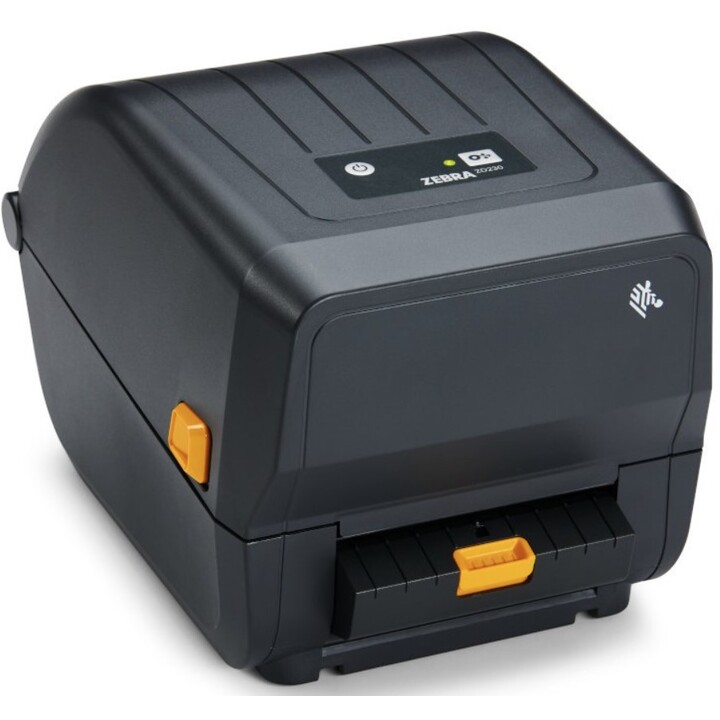

The Zebra ZD22042-T1EG00EZ is a compact and reliable thermal transfer printer designed for medium-duty label printing. With a print resolution of 203 dpi and a maximum print speed of 152 mm/s, it delivers crisp, durable labels for asset tracking, shipping, and retail applications. The printer supports both thermal transfer and direct thermal methods, offering flexibility for various media types.
Equipped with a 74m ribbon capacity, the ZD22042-T1EG00EZ reduces downtime for ribbon changes. Connectivity options include USB and serial interfaces, ensuring easy integration into existing systems. Its rugged construction and simple operation make it a cost-effective solution for businesses requiring consistent, high-quality label output.
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Max Print Width | 104 mm (4.09 in) |
| Max Print Speed | 152 mm/s (6 in/s) |
| Ribbon Capacity | 74 m (243 ft) |
| Connectivity | USB 2.0, RS-232 Serial |
| Media Width | 19.5 mm – 108 mm (0.77 in – 4.25 in) |
| Media Thickness | 0.08 mm – 0.19 mm (0.003 in – 0.0075 in) |
| Max Label Length | 991 mm (39 in) |
| Memory | 8 MB Flash, 8 MB SDRAM |
| Weight | 1.1 kg (2.4 lb) |
| Dimensions (W x D x H) | 202 mm x 173 mm x 158 mm (7.95 in x 6.81 in x 6.22 in) |
