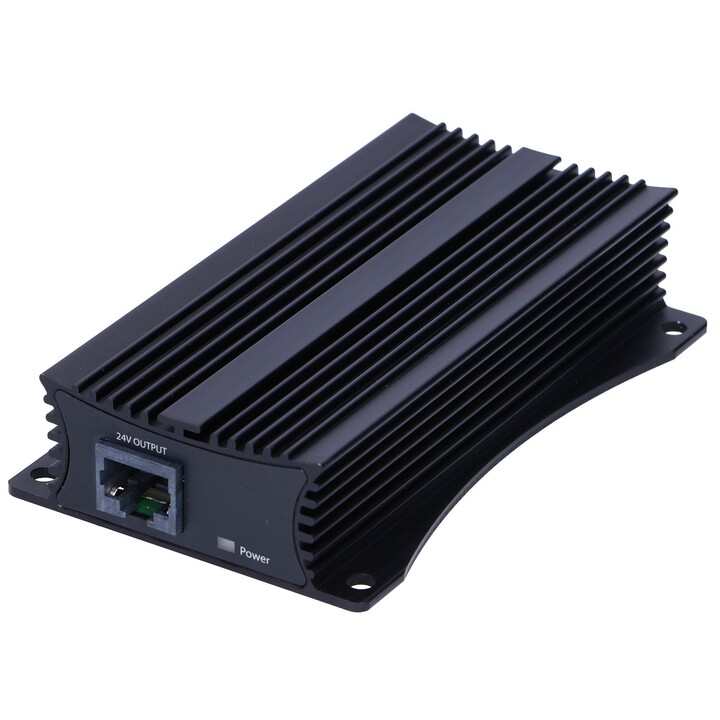

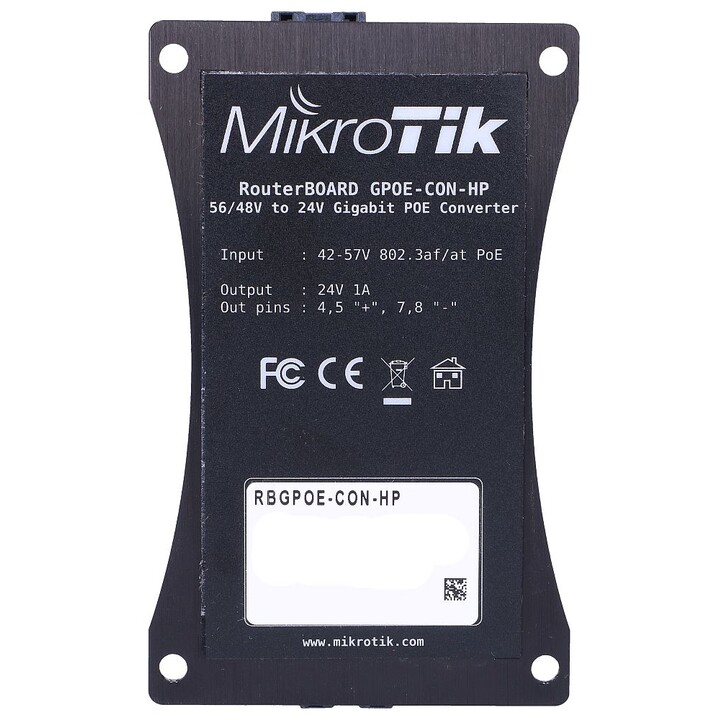

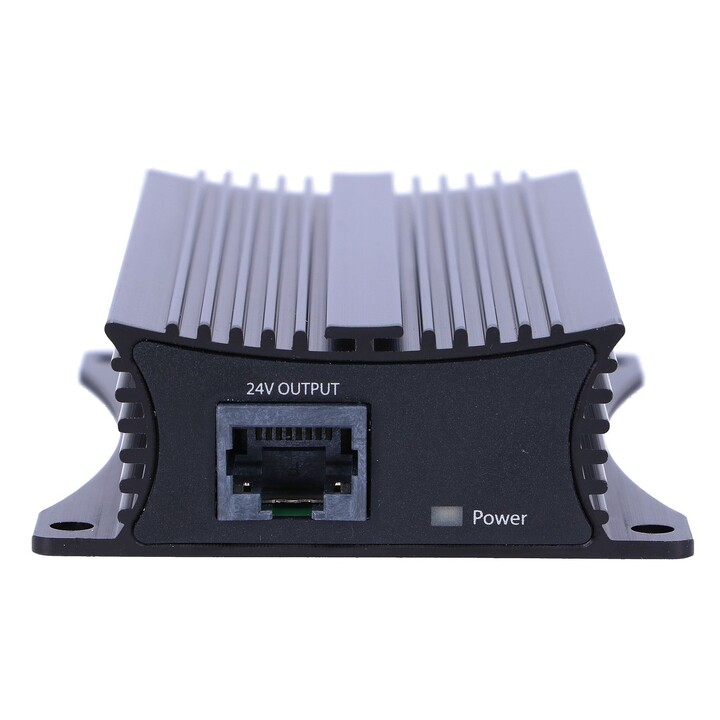

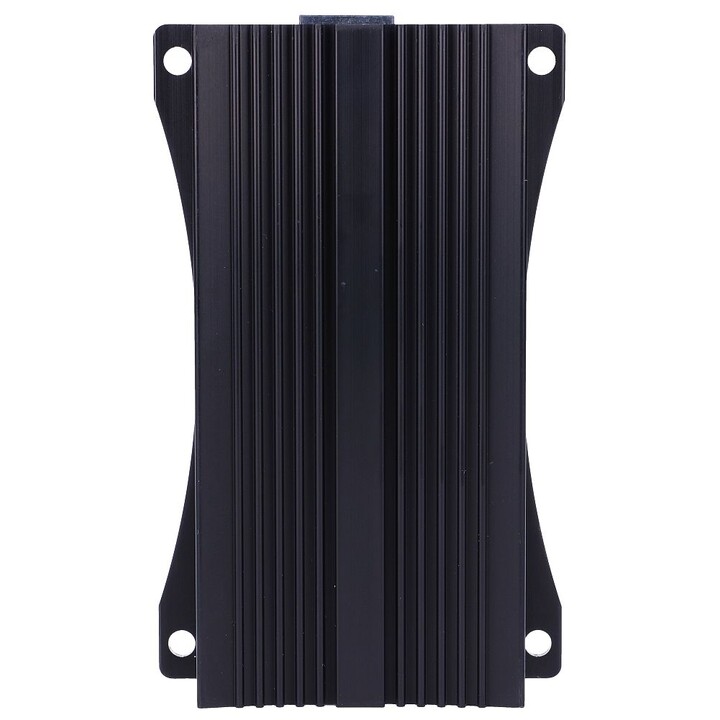

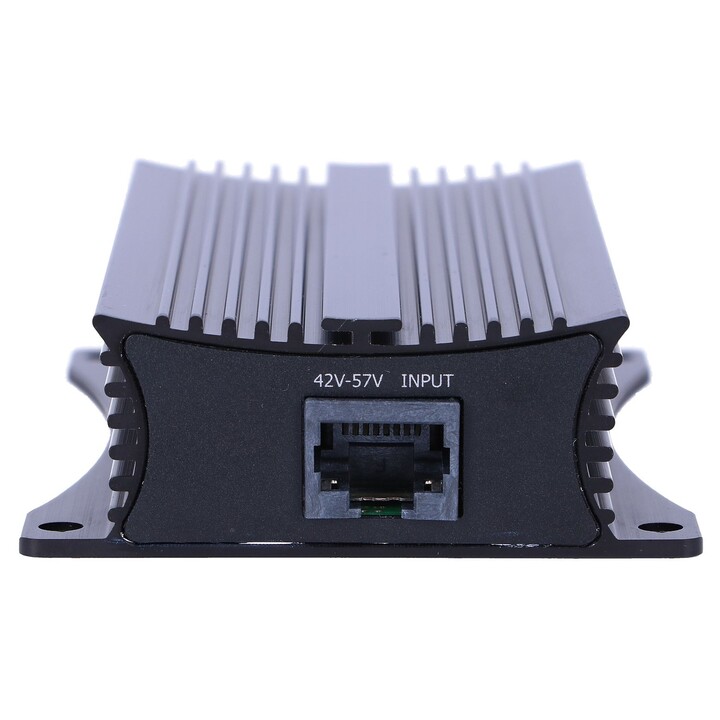

Mikrotik Rbgpoe-con-hp Voltage Converter, Poe, 48V to 24V
- Converts 48V input to 24V output at 1A
- Supports Passive PoE, 802.3af and 802.3at PoE+ standards
- Two 1 Gbps RJ45 ports
- Compact dimensions: 107 x 66 x 24 mm
- Operating temperature range from -35°C to 70°C
Mikrotik Rbgpoe-con-hp Voltage Converter, Poe, 48V to 24V
The MikroTik RBGPOE-CON-HP is a compact voltage converter designed to step down 48V Power over Ethernet (PoE) input to 24V output. This allows devices that require 24V passive PoE to be powered from a standard 48V PoE switch or injector. The converter supports up to 0.5A output current, providing up to 12W of power, suitable for many MikroTik routers and access points.
This unit is ideal for installations where a 48V PoE source is available but the endpoint device requires 24V. It features a rugged design with an IP20 rating for indoor use. The RBGPOE-CON-HP is a passive PoE converter, meaning it does not negotiate power with the source; it simply passes the voltage conversion. Ensure your device is compatible with passive PoE on the specified wire pairs.
| Input Voltage | 48V DC (from PoE switch or injector) |
| Output Voltage | 24V DC, 0.5A (12W max) |
| Input Current | 1.5A max |
| Power over Ethernet | Passive PoE (pairs 4,5+ and 7,8-) |
| Compatibility | MikroTik devices requiring 24V passive PoE |
| Dimensions | Approx. 60 x 30 x 20 mm |
| Weight | ~30 g |
| Operating Temperature | -20°C to 70°C |
| Ingress Protection | IP20 (indoor use only) |
-
