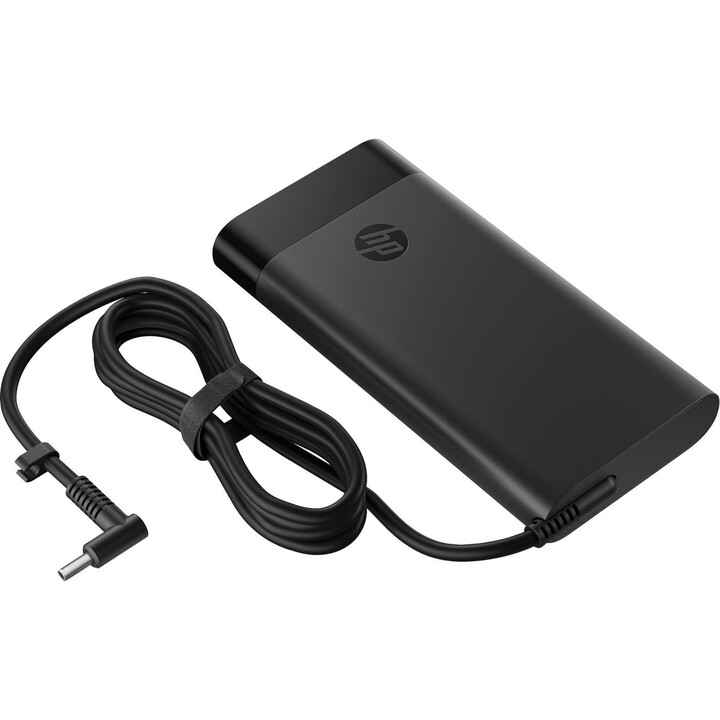

HP 230W Smart AC Adapter

It is an HP 230W Smart AC Adapter (AQ9X8AA#ABB), a high-performance charger with 4.5mm barrel connector for HP notebooks and mobile workstations requiring up to 230W of continuous power.

Power and electrical specifications

• Delivers up to 230W output at 19.5V, designed to support very demanding applications in high-end HP notebooks and Mobile Workstations with 4.5mm connector.

• Supports 100-240V AC input and 47-63Hz frequency, so it can be used worldwide with the appropriate mains cable.

Physical design and connection

• Uses a 4.5mm barrel connector as an output to the notebook, compatible with a wide range of recent HP models.

• Black body, with approximate dimensions of 180 × 88 × 25.4 mm and weight around 635 g, suitable for desktop or office use and also transportable in a backpack.

Smart" functions and protection

• Incorporates an embedded resistor that identifies the type of adapter and helps to intelligently manage power delivery to the equipment.

• Includes built-in protections against overvoltage, overcurrent, overtemperature and mains spikes, contributing to safer and more stable charging under heavy use.
