COOLER MASTER ZASILACZ MWE Bronze 550 V3 230V MPE-5501-ACABW-3BEU

Description

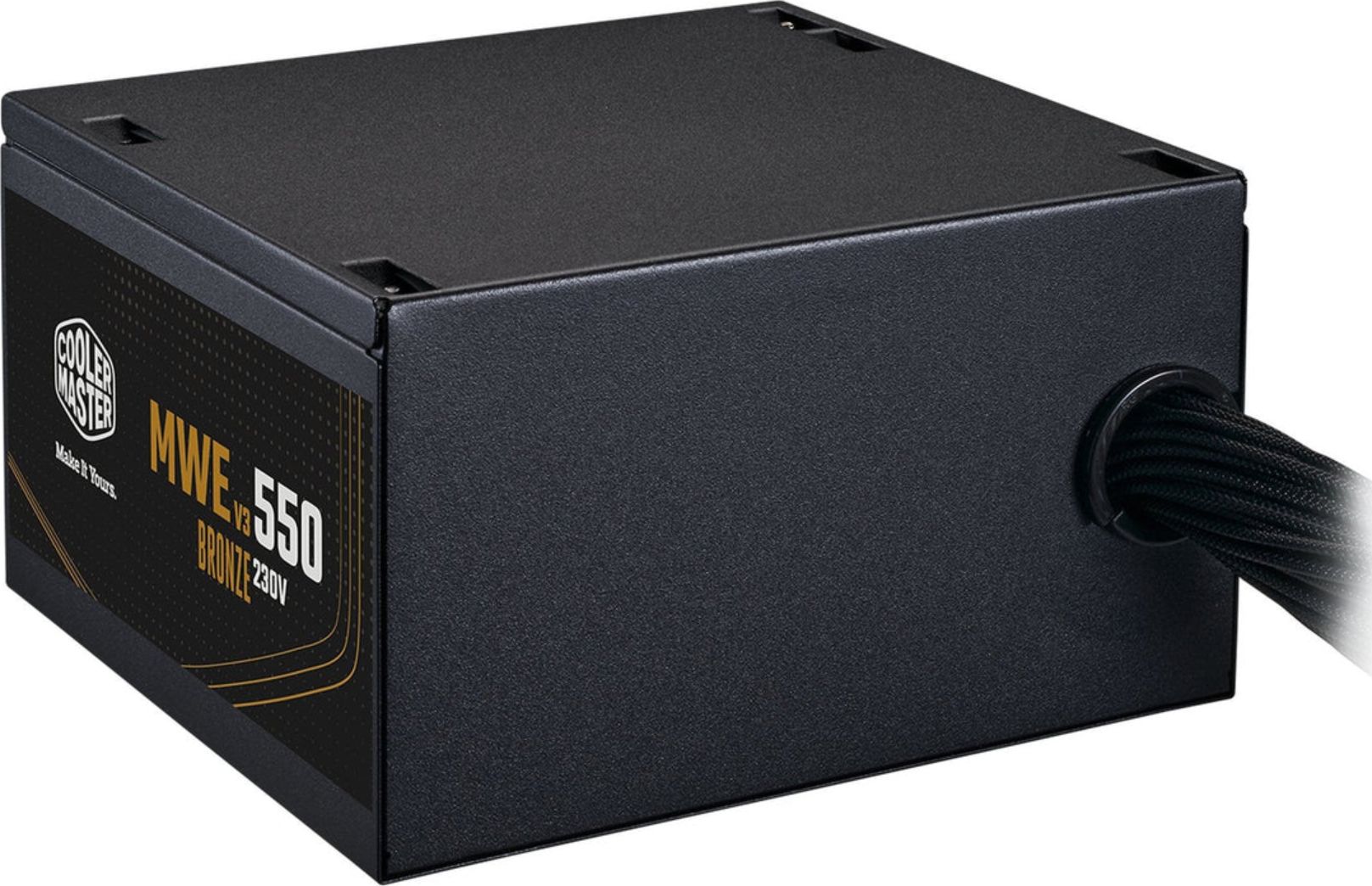

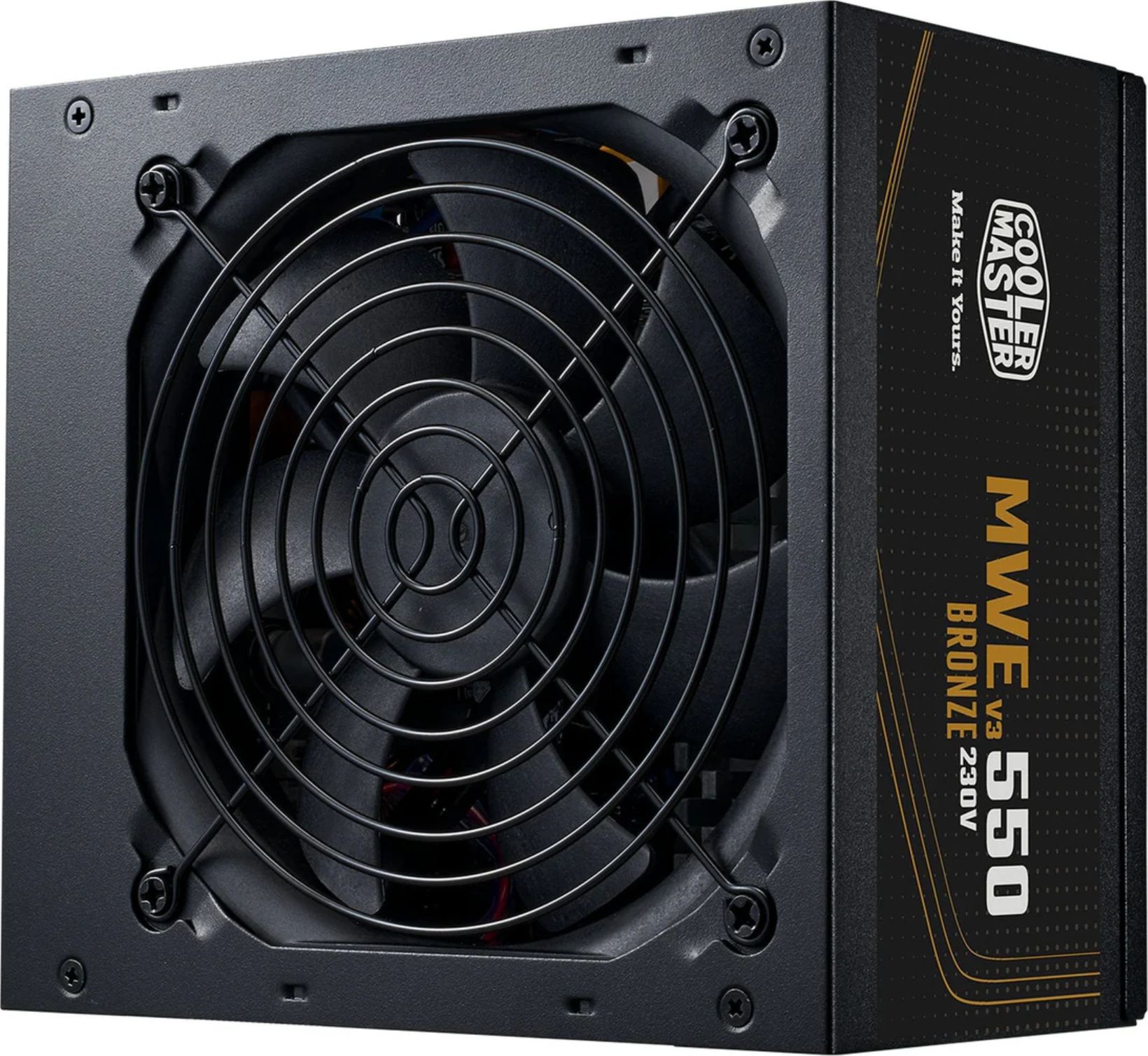

Cooler Master MWE Bronze 550 V3 230V Power Supply Unit 550 W 24-Pin ATX Black

Cooler Master MWE Bronze 550 V3 230V, 550 W, 200 - 240 V, 50/60 Hz, 5 A, Active, 110 W

Key product points

550 W 200 - 240 V 50/60 Hz

Motherboard power supply: 24-pin ATX

PC ATX 80 PLUS Bronze

Active 12 cm

Black

Power control

Total power: 550 W

AC input voltage: 200 - 240 V

AC input frequency: 50/60 Hz

Input current: 5 A

Power Factor Correction (PFC) Type: Active

Combined power (3.3V): 110W

Combined power (+12 V): 540 W

Combined power (+5 V): 110 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 15 W

Maximum output current (+3.3V): 17 A

Maximum output current (+12V): 45 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 3 A

Waiting time: 16 ms

Efficiency: 88%

Power Good signal delay range: 100 - 500 ms

Power protection functions: Overvoltage, Overvoltage, Short circuit, Undervoltage

Ports and Interfaces

Motherboard power supply: 24-pin ATX

Motherboard power cable length: 50 cm

Number of SATA power connectors: 6

SATA power cable length: 400,550,700 mm

Peripheral power connectors (4 pin) (Molex): 3

Peripheral power cable length (Molex): 550,700,400 mm

EPS power connector (4+4 pins): Yes

PCI Express Power Connectors (6+2 pin): 2

ATX power connector (24 pin): Yes

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS Bronze

Use with: PC

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

Bearing technology: HDB

Mean time between failures: 100,000 h

Design

Product color: Black

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Environmental conditions

Operating temperature range: 0 - 40°C

Regulatory approvals

Certificates of conformity: BIS, CE, China Compulsory Certification (CCC), EAC, US Federal Communications Commission (FCC), KC, RCM, RoHS, TÜV mark, UKCA

Weight and dimensions

Width: 150 mm

Depth: 140 mm

Height: 86 mm

Weight: 1.45 kg

Packaging

Package width: 245 mm

Package depth: 190 mm

Package height: 110 mm

Package weight: 1.85 kg

Packaging Type: Box
