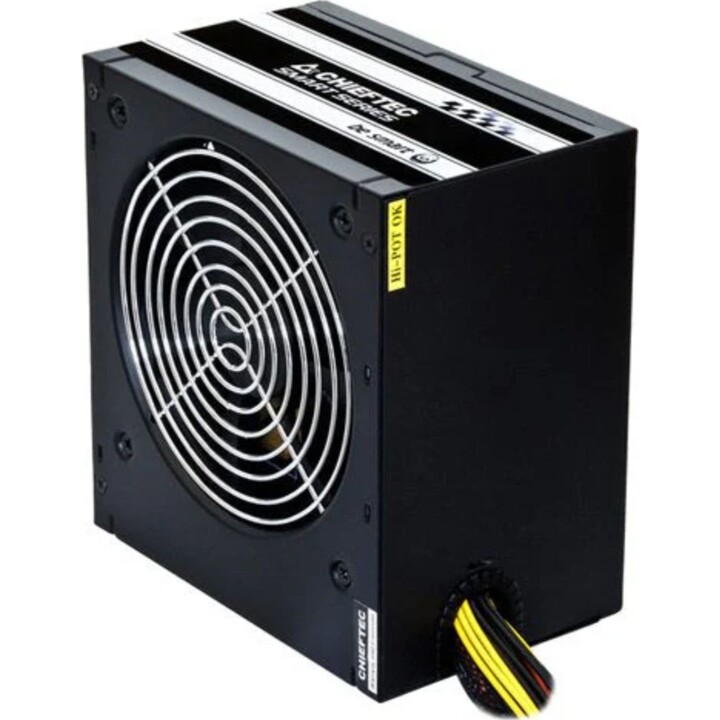

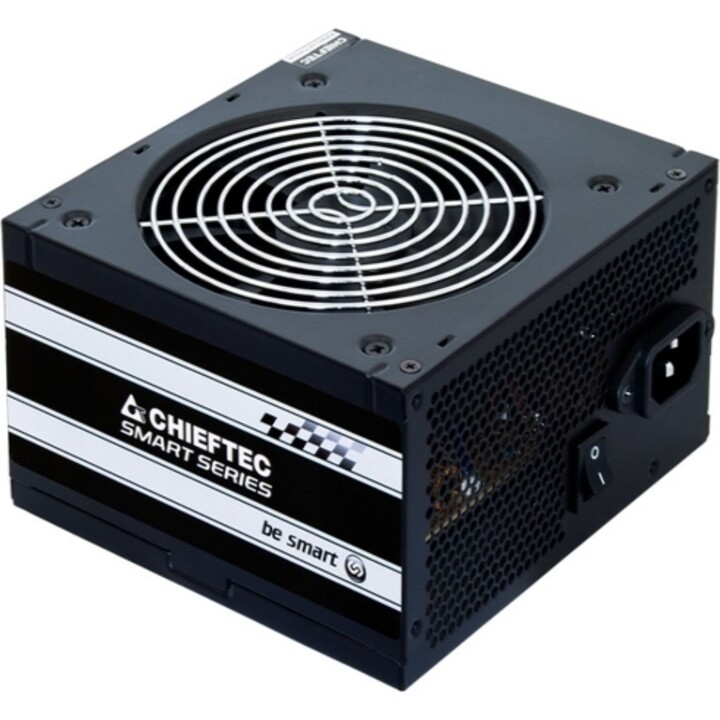

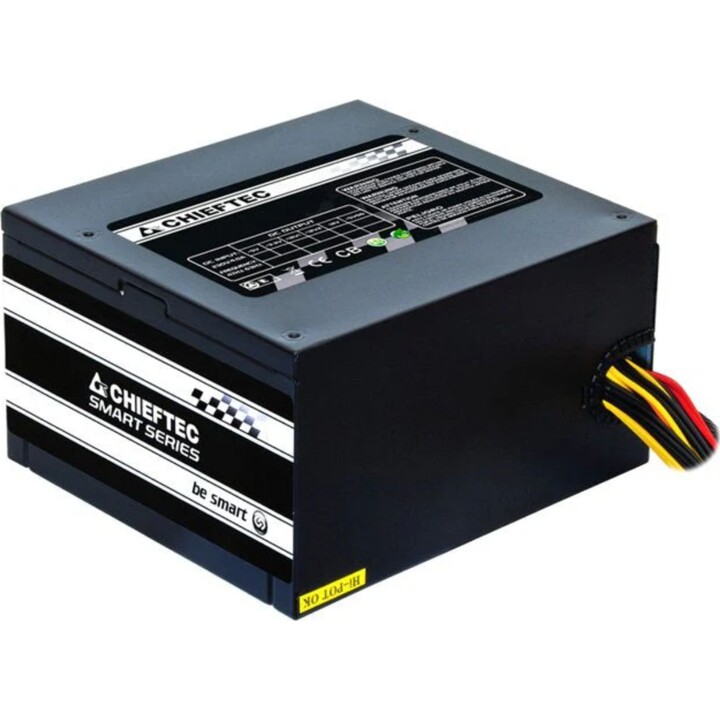

Case PSU ATX 650W/GPS-650A8 CHIEFTEC

Description

Chieftec GPS-650A8 Power Supply Unit 650 W 20+4 Pin ATX PS/2 Black

Chieftec GPS-650A8, 650 W, 220 - 240 V, 47 - 63 Hz, 5 A, Active, 120 W

Key product points

650 W 220 - 240 V 47 - 63 Hz

Motherboard power supply: 20+4 pin ATX

PC PS/2 80 PLUS Bronze

Active 12 cm

Negro

Power control

Total power: 650 W

AC input voltage: 220 - 240 V

AC input frequency: 47 - 63 Hz

Input current: 5 A

Power factor: 0.9

Power Factor Correction (PFC) Type: Active

Combined power (3.3V): 120W

Combined power (+12 V): 600 W

Combined power (+5 V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 20 A

Maximum output current (+12 V1): 50 A

Maximum output current (+5V): 20 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 2.5 A

Efficiency: 85%

Power protection functions: Overvoltage, Overvoltage, Short circuit, Undervoltage

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Number of SATA power connectors: 6

SATA power cable length: 150,500 mm

Peripheral power connectors (4 pin) (Molex): 2

EPS power connector (8-pin): Yes

PCI Express Power Connectors (6+2 pin): 2

PCI Express power cable length: 50 cm

Floppy power connector: 1

Floppy disk drive connector: Yes

PCI Express connector: Yes

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS Bronze

Supported motherboard form factors: ATX

Use with: PC

Power Supply (PSU) Form Factor: PS/2

ATX version: 2.3

Design

Product color: Black

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Integrated on/off switch: Yes

Package contents

Cables included: AC, PCIe, Peripheral (Molex), SATA

Regulatory approvals

Certification: CE, CB, EAC, ErP, RoHS, interseroh, TÜV

Weight and dimensions

Ancho: 140 mm

Depth: 150 mm

Height: 87 mm

Packaging

Packaging Type: Box
