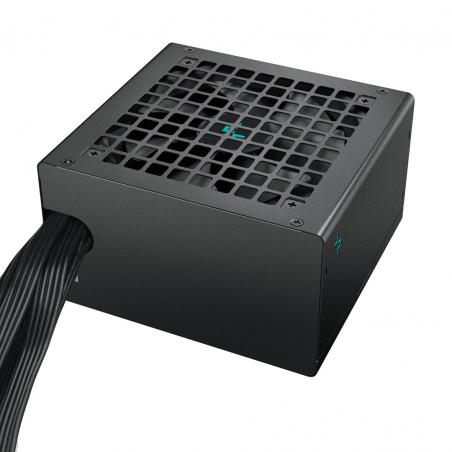

DeepCool PL650D 650W 20+4 pin ATX Power Supply Black

€53.78
without tax €53.78
R-PL650D-FC0W-JDEU-V2
6933412721246
New product
Power supplies for computers and laptops > Cases power supply - ZDLDECOBU0059 - DeepCool PL650D 650W 20+4 pin ATX Power Supply Black Read more...

  •   Up to 3 years warranty
  •   100% secure payment
  •   14 days return
Whatsapp Share with your friends

Buy it now and receive it between Wed 3 and Tue 9 with GLS o Correos Express España €16.45

Regulatory approvals
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Certificates of conformity
RoHS, WEEE
Power control
Maximum output current (+3.3V)
20 A
Maximum output current (+5V)
20 A
Power protection functions
Undervoltage, Overvoltage, Overcurrent, Surge & inrush protection (SIP), Overheating, Overvoltage, No load operation, Surge suppressor
Efficiency
85%
Maximum output current (-12V)
0.3 A
Combined power (+5 VSB)
15 W
Combined power (3.3 V)
100 W
Input current
9 - 4.5 A
AC input voltage
100 - 240 V
Power Good signal delay margin
100 - 150 ms
Maximum output current (+12V)
54 A
Waiting time
16 ms
Total power
650 W
Maximum output current (+5Vsb)
3 A
Combined power (+12 V)
648 W
Power factor correction (PFC)
Asset
Combined power (+5 V)
100 W
Combined power (-12V)
3.6 W
AC input frequency
50/60 Hz
Performance
Power supply unit (PSU) form factor
ATX
Use with
PC
Mean time between failures
100,000 h
80 PLUS Certification
80 PLUS Bronze
ATX version
3.0
Bearing technology
HYB
Ports and Interfaces
Motherboard power cable length
55 cm
CPU power connector (4+4 pins)
Yeah
PCI Express power connectors (6 + 2 pin)
3
SATA power cable length
450 mm, 550, 650
PCI Express power connectors (16 pin)
1
Motherboard power supply
20+4 pin ATX
Number of SATA power connectors
6
Peripheral power connectors (4 pin) (Molex)
2
Wiring type
Non-modular
ATX power connector (20 + 4 pin)
Yeah
Technical details
Sustainability certificates
ErP, Triman
Sustainability compliance
Yeah
Design
Cooling type
Asset
Integrated on/off switch
Yeah
Fan location
Superior
Number of fans
1 Fan(s)
Fan diameter
12 cm
Product color
Black
Environmental conditions
Operating temperature range
0 - 40 °C
Weight and dimensions
Depth
140 mm
Height
86 mm
Broad
150 mm
Packaging
Type of packaging
Box
Brand
DEEPCOOL
Country
China
Origin Address
#9 Dijin Road, Zhongguancun Environmental Protection Park, Haidian Dist.
Entity UE
DeepCool Industries Co., Ltd.
Address
Calle Pedro Duque,1 Módulo 6B 28814 Daganzo de Arriba - Madrid
Email
support05@deepcool.com
Phone
+86 10 56401872
