ASUS Prime AP-750G Power Supply Unit 750W 20+4 Pin ATX ATX Black, White

Description

ASUS Prime AP-750G Power Supply Unit 750W 20+4 Pin ATX Black, White

ASUS Prime AP-750G, 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W

Key product points

750 W 100 - 240 V

Motherboard power supply: 20+4 pin ATX

PC ATX 80 PLUS Gold

Asset

Black, White

Power control

Total power: 750 W

AC input voltage: 100 - 240 V

Power Factor Correction (PFC) Type: Active

Combined power (3.3V): 110W

Combined power (+12 V): 744 W

Combined power (+5 V): 110 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 20 A

Maximum output current (+12V): 62 A

Maximum output current (+5V): 20 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 2.5 A

Efficiency: 92%

Power protection functions: Overvoltage, Overvoltage, Overload, Overheating, Short circuit, Undervoltage

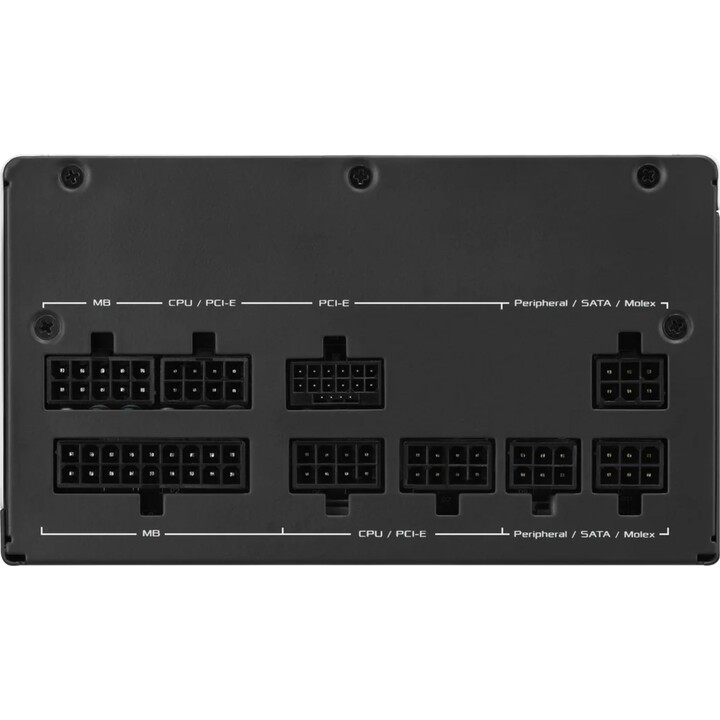

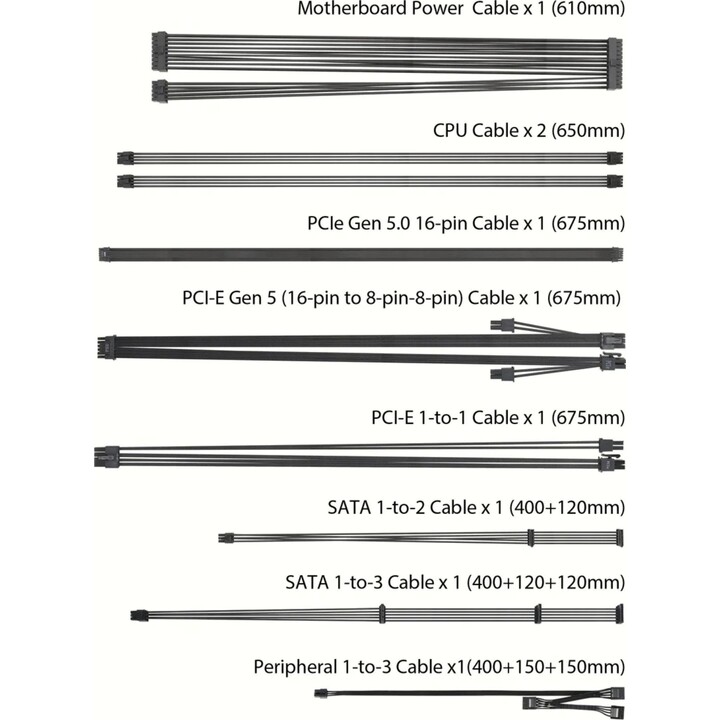

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Motherboard power cable length: 61 cm

Number of SATA power connectors: 5

SATA power cable length: 120,400 mm

Peripheral power connectors (4 pin) (Molex): 3

Peripheral power cable length (Molex): 150,400 mm

PCI Express power connectors (8 pin): 3

PCI Express Power Connectors (16-pin): 1

CPU P4 connector (4-pin): 2

CPU power connector (4+4 pins): Yes

CPU power cable length: 65 cm

ATX power connector (20 + 4 pin): Yes

Wiring Type: Fully Modular

Performance

80 PLUS Certification: 80 PLUS Gold

Use with: PC

Power supply unit (PSU) form factor: ATX

ATX version: 3.0

Bearing technology: Ball bearing

Mean time between failures: 120,000 h

Design

Product color: Black, White

Cooling Type: Active

Integrated on/off switch: Yes

Weight and dimensions

Width: 150 mm

Depth: 150 mm

Height: 86 mm

Weight: 1.47 kg
