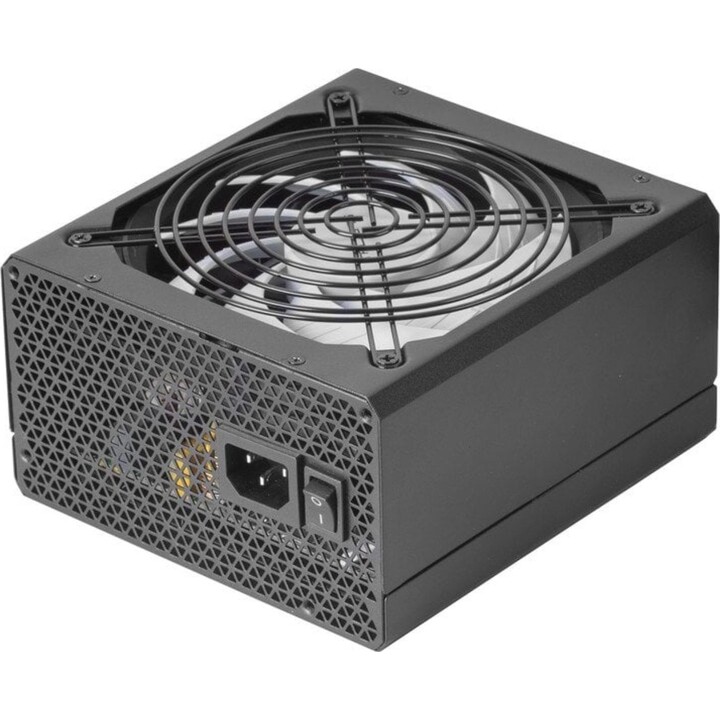

Tacens RADIX ECO X 550 ATX Power Supply 550W 87% SMD DC-DC AI-RPM FDB Black

Description

Tacens RADIX ECO X 550 24-pin ATX power supply unit

Energy control

• Total power: 550 W
• AC input voltage: 200 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 5 A
• Power factor correction type (PFC): Active
• Number of 12V rails: 1
• Combined power (3.3 V): 100 W
• Combined power (+12 V): 546 W
• Combined power (+5 V): 100 W
• Combined power (-12V): 3.6 W
• Combined power (+5 VSB): 12.5 W
• Maximum output current (+3.3V): 18 A
• Maximum output current (+12V): 45.5 A
• Maximum output current (+5V): 18 A
• Maximum output current (-12V): 0.3 A
• Maximum output current (+5Vsb): 2.5 A
• Efficiency: 87%
• Power protection functions: Overcurrent, Overvoltage, Overheating, Overload, Short circuit, Undervoltage

Ports and Interfaces

• Motherboard power supply: 24-pin ATX
• Number of SATA power connectors: 3
• Peripheral power connectors (4 pin) (Molex): 2
• PCI Express Power Connectors (6 + 2 pin): 1
• CPU power connector (4 + 4 pins): Yes
• Wiring type: Non-modular

Performance

• Use with: PC
• Power supply unit (PSU) form factor: ATX
• Noise level: 12 dB

Design

• Product color: Black
• Cooling type: Active
• Fan diameter: 14 cm
• Number of fans: 1 Fan(s)
• Integrated on/off switch: Yes

Regulatory approvals

• Certificates of conformity: CE, RoHS, TÜV mark
• Certification: ATX12V

Weight and dimensions

• Width: 150 mm
• Depth: 160 mm
• Height: 85 mm
• Weight: 1.36 kg

Packaging

• Package width: 137 mm
• Package depth: 206 mm
• Package height: 257 mm
• Package weight: 1.53 kg
