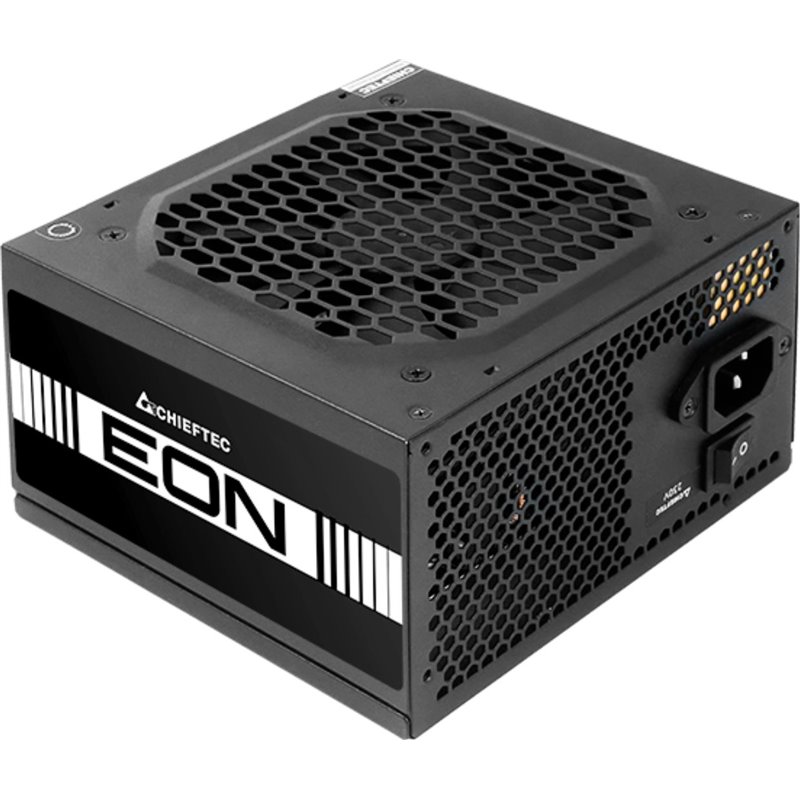

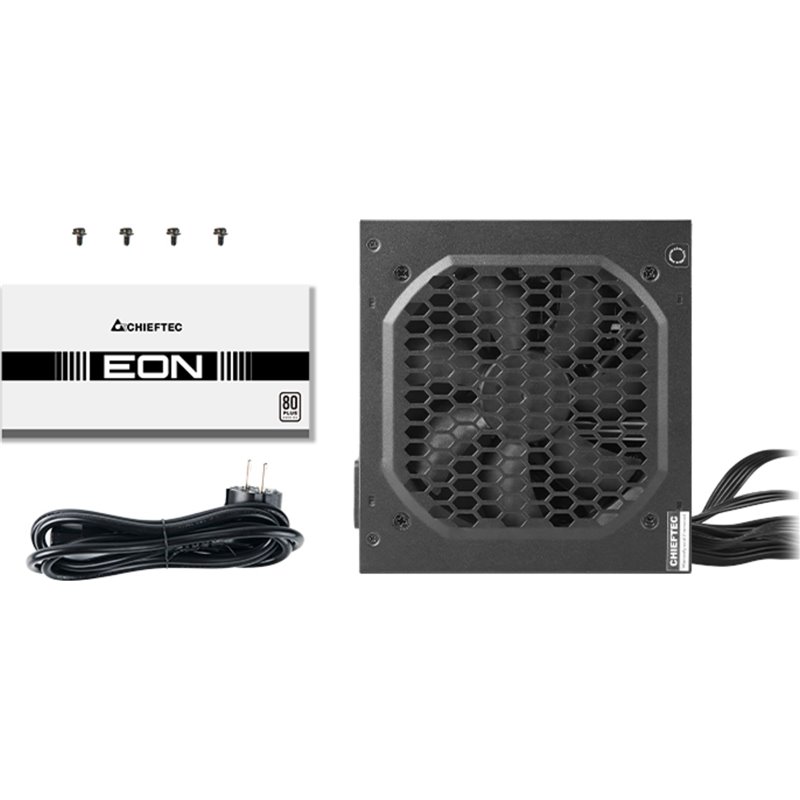

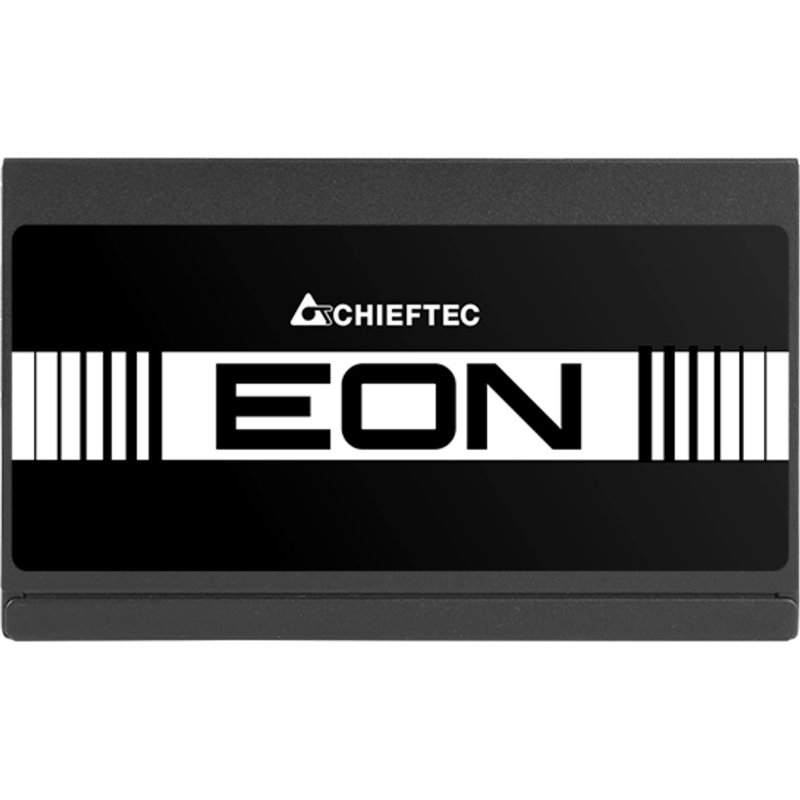

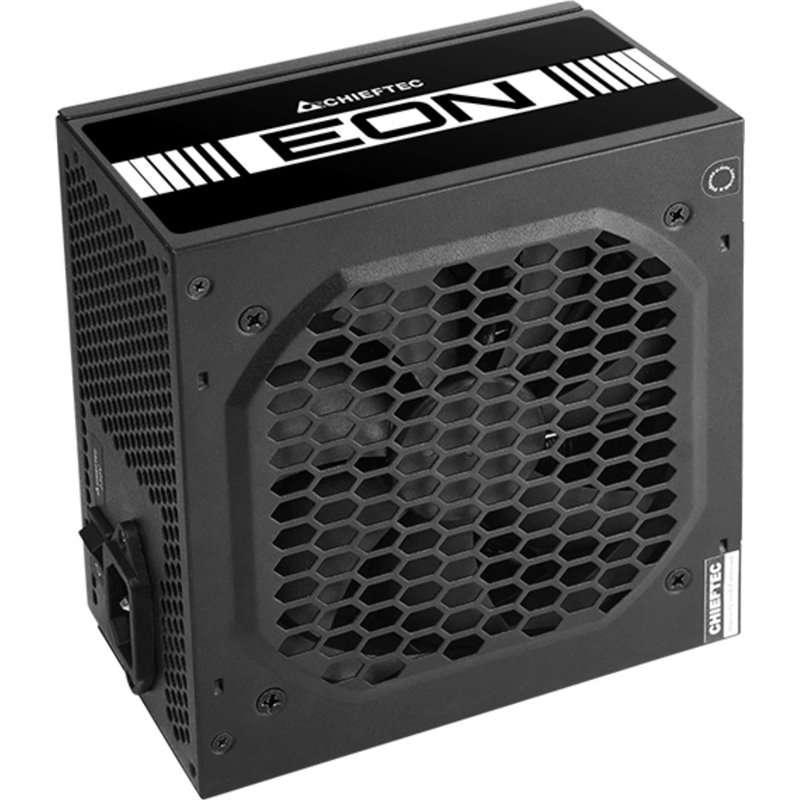

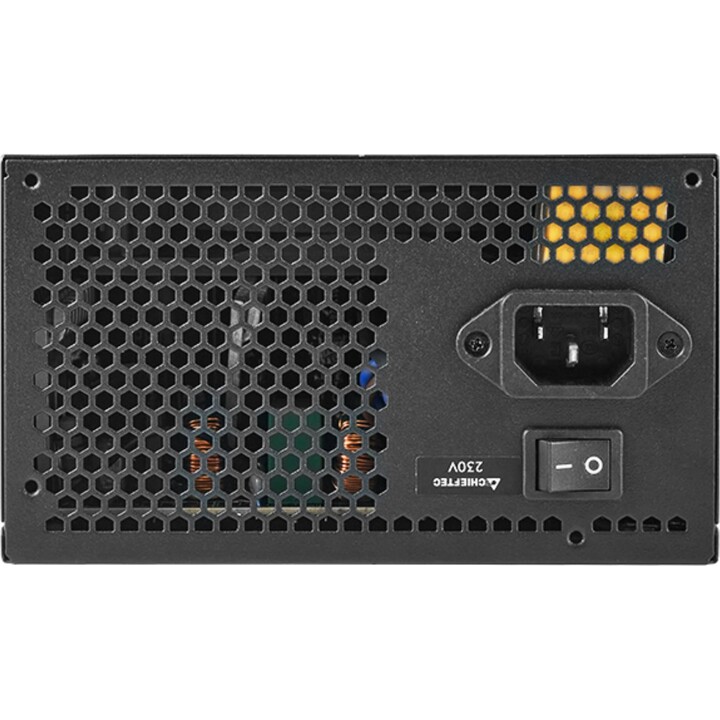

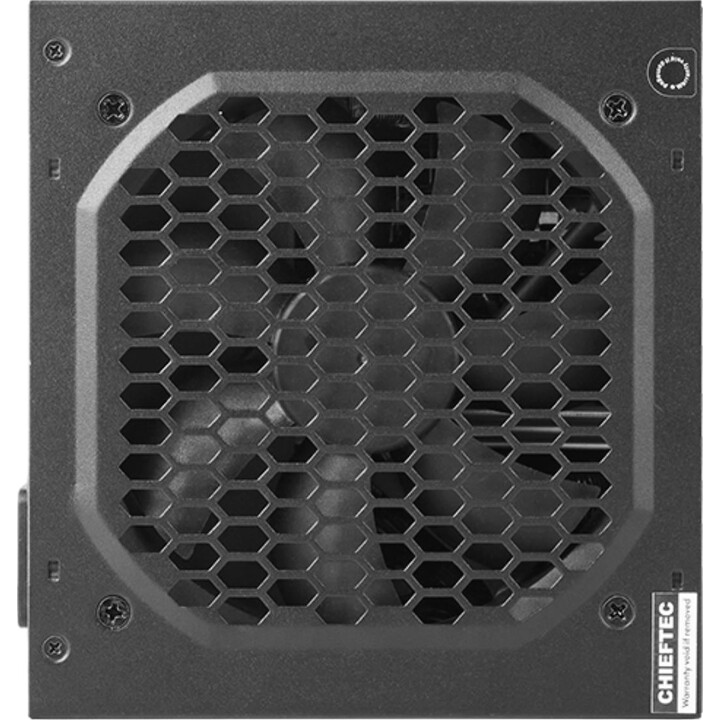

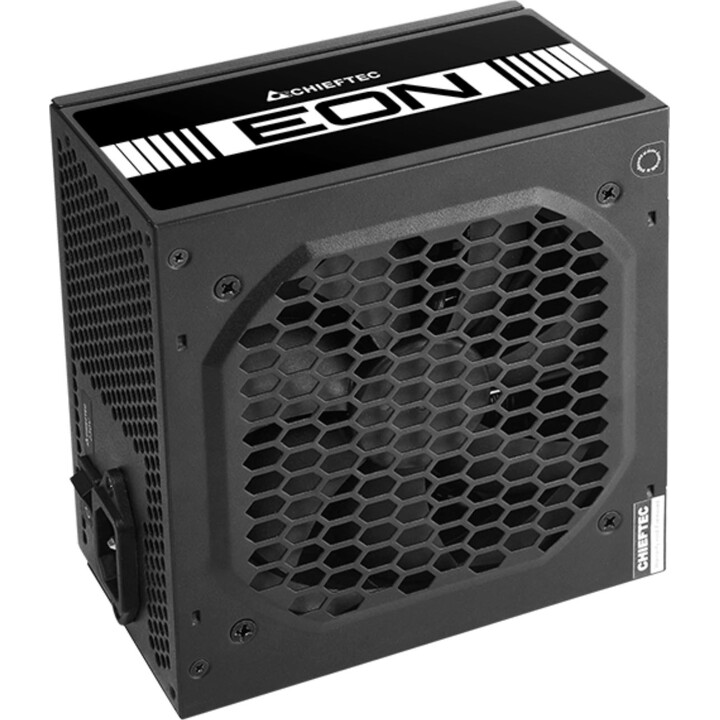

Chieftec EON ZPU-400S Power Supply Unit 400W 20+4 Pin ATX ATX Black

Description

Chieftec EON ZPU-400S power supply unit 400 W 20+4 pin ATX ATX Black

Chieftec EON ZPU-400S, 400 W, 200 - 240 V, 50 Hz, 3 A, 3 A, Active

Key product points

400 W 200 - 240 V 50 Hz

Motherboard power supply: 20+4 pin ATX

ATX 80 PLUS PC/Server

12 cm

Black

Power control

Total power: 400 W

AC input voltage: 200 - 240 V

AC input frequency: 50 Hz

Input current: 3 A

Maximum input current (@220V): 3 A

Power factor: 0.9

Power Factor Correction (PFC) Type: Active

Combined power (-12V): 4.8 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 20 A

Maximum output current (+12 V1): 30 A

Maximum output current (+5V): 20 A

Maximum output current (-12V): 0.4 A

Maximum output current (+5Vsb): 2.5 A

Power protection functions: Short circuit, Overvoltage and inrush current, Surge suppressor

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Motherboard power cable length: 55 cm

Number of SATA power connectors: 4

SATA power cable length: 550,600 mm

Peripheral power connectors (4 pin) (Molex): 2

Peripheral power cable length (Molex): 150.450 mm

EPS power connector (4+4 pins): Yes

PCI Express Power Connectors (6+2 pin): 1

CPU power connector (4+4 pins): Yes

ATX power connector (20 + 4 pin): Yes

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS

Supported motherboard form factors: ATX

Use with: PC/Server

Power supply unit (PSU) form factor: ATX

ATX version: 2.3

Design

Product color: Black

Fan diameter: 12 cm

Integrated on/off switch: Yes

Regulatory approvals

Certificates of conformity: CB, CE, EAC, RoHS

Weight and dimensions

Width: 150 mm

Depth: 140 mm

Height: 86 mm

Weight: 1.15 kg

Packaging

Package weight: 1.4 kg

Packaging Type: Box

Technical details

Sustainability certificates: ErP
