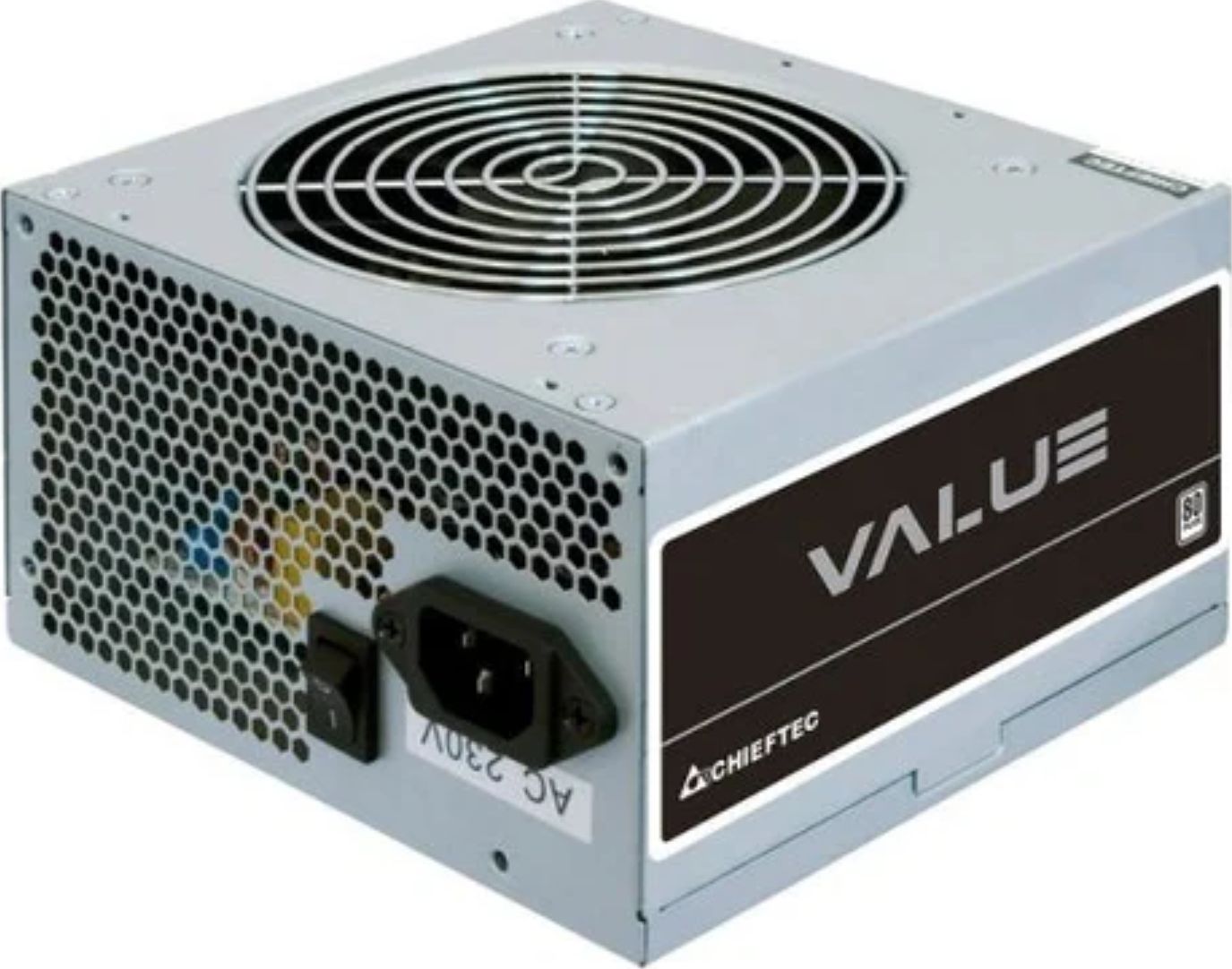

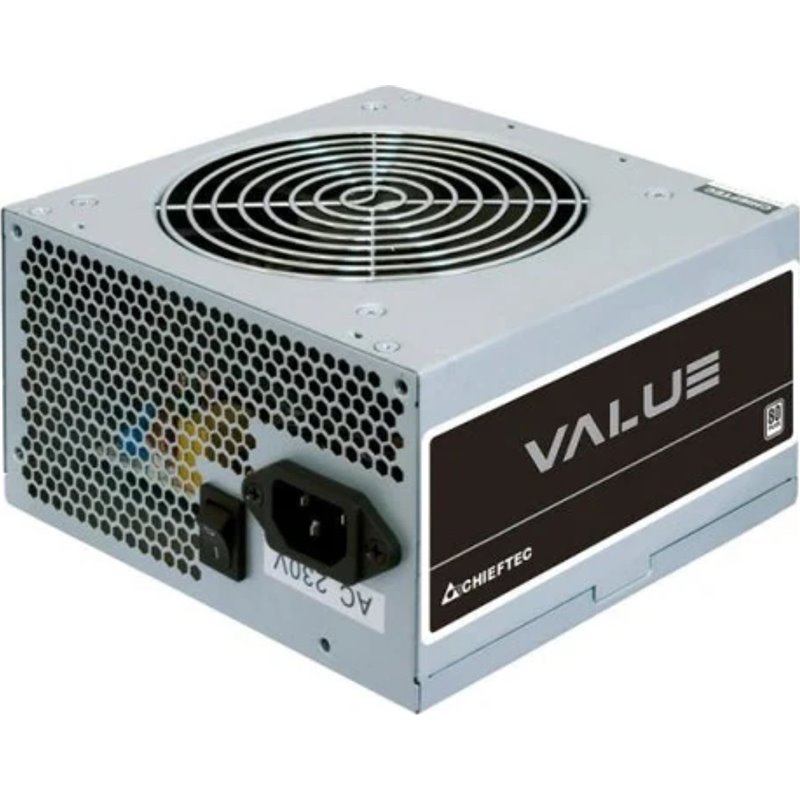

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel

Description

Chieftec Value APB-600B8 Power Supply Unit 600 W 20+4 Pin ATX Steel

Chieftec Value APB-600B8, 600 W, 200 - 240 V, 600 W, 47 - 63 Hz, 4.5 A, 120 W

Key product points

600 W 200 - 240 V 47 - 63 Hz

Motherboard power supply: 20+4 pin ATX

PC ATX 80 PLUS

Active 12 cm

Steel

Power control

Total power: 600 W

Maximum power: 600 W

AC input voltage: 200 - 240 V

AC input frequency: 47 - 63 Hz

Maximum input current (@220V): 4.5 A

Combined power (3.3V): 120W

Combined power (+12 V): 552 W

Combined power (+5 V): 120 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 20 A

Maximum output current (+12 V1): 46 A

Maximum output current (+5V): 20 A

Maximum output current (-12V): 0.3 A

Maximum output current (+5Vsb): 2.5 A

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Motherboard power cable length: 55 cm

Number of SATA power connectors: 4

SATA power cable length: 150,500 mm

Peripheral power connectors (4 pin) (Molex): 2

Peripheral power cable length (Molex): 150,500 mm

EPS Power Connector (8-pin): No

EPS power connector (4+4 pins): Yes

PCI Express Power Connectors (6+2 pin): 2

Floppy disk drive connector: Yes

Floppy drive cable length: 15 cm

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS

Use with: PC

Power supply unit (PSU) form factor: ATX

ATX version: 2.3

Design

Product color: Steel

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Fan Location: Top

Integrated on/off switch: Yes

Regulatory approvals

Certificates of conformity: CE, RoHS

Weight and dimensions

Width: 150 mm

Depth: 140 mm

Height: 87 mm

Weight: 1.42 kg

Packaging

Package weight: 1.56 kg
