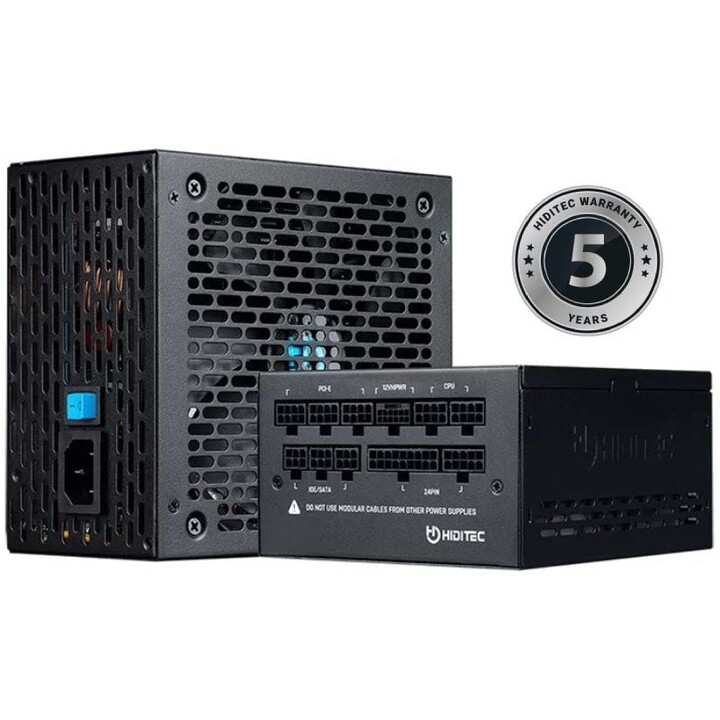

GDX750 v2 80PLUS GOLD ATX 3.0 PCIe 5.0

The GDX v2 series has been redesigned to adapt to high-performance configurations equipped with new generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection which makes it extremely versatile and ideal for high-end configurations. It includes the 12VHPWR cable as standard to power Nvidia® GeForce RTX® 40 series graphics cards, without the need to use any 6+2-pin adapter and have a completely safe power supply.

ATX 3.0 PCIe 5.0 80Plus Gold Full Modular

The GDX v2 series has been redesigned to adapt to high-performance configurations equipped with new generations of graphics cards. ATX 3.0 version with PCIe 5.0 connection which makes it extremely versatile and ideal for high-end configurations.

It includes the 12VHPWR cable as standard to power Nvidia® GeForce RTX® 40 series graphics cards, without the need to use any 6+2-pin adapter and have a completely safe power supply.

It has an 80PLUS GOLD certificate and top quality components prepared for high-performance equipment. The 140mm thermoregulated fan with FDB fluid dynamic bearings drastically reduces operating noise and significantly prolongs its durability.

12VHPWR connector with 650mm long modular cable

It includes the 12VHPWR cable as standard to power the Nvidia® GeForce RTX® 40 series graphics cards, without having to use any 6+2 pin adapter, having a completely safe power supply and reducing the risk of connection during installation on ton PC.

It offers up to 600W of power and has been manufactured with high quality materials to guarantee maximum performance and safety in use.

80Plus Gold Certified with Japanese electrolytic capacitors

The GDX v2 series incorporates high-end Japanese electrolytic capacitors, components that allow real power with stable voltage and reliability over time, being one of the best power supplies for computers with high-performance graphics.

The GDX v2 power supplies have 80PLUS GOLD certification, which guarantees an efficiency greater than 90% and achieves lower consumption and greater durability of all components.

Heat emissions will be reduced with more efficient operation, allowing the fan to work at a lower speed and consequently, the noise produced by the source will be practically imperceptible.

It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

DC to DC technology

The GDX v2 series features DC to DC technology to offer clean, stable, noise-free power and is manufactured with high-performance capacitors to offer maximum reliability and durability in extremely demanding conditions.

DC to DC (Direct Current/Continuous Current) technology is much more efficient and safer since the voltage is not converted unless it is necessary to do so. A DC/DC conversion is much more efficient than AC/DC, there are fewer losses and less heat is generated.

The GDX v2 series offers durability of more than 100,000 hours of operation.

Full Modular with extra long flat cables

The GDX v2 series is Full Modular so you can connect only the cables you need to the source and thus provide greater convenience when assembling your equipment.

100% high-quality, extra-long flat cables, which will allow you to better adapt to the installation of any equipment, make a more orderly installation and take up less space, in addition to offering excellent security and durability.

140mm fan with ultra-quiet thermo-regulated FDB fluid dynamic bearings

The ultra-quiet 140mm thermo-regulated fan with FDB fluid dynamic bearings drastically reduces operating noise and significantly prolongs its durability.

It adapts its operation to the different needs of the equipment, it will only work at maximum power if required.

The 140mm fan provides greater air flow while operating at lower revolutions, so in addition to making fan noise practically imperceptible, we will achieve greater efficiency and durability of all components.

Dual EPS12V & Six 6+2 PCIe

The GDX v2 series has two EPS12V lanes and six 6+2 PCIe lanes for high-performance graphics.

5 Years Warranty

The GDX v2 series offers reliability and durability backed by a 5-year warranty, backed by the HIDITEC technical support team.

• Specifications
• Dimensions: 150 x 86 x 160mm
• Weight: 2200 grams
• Voltage: 100 - 240Vac
• Form factor: ATX
• MTBF: 100,000 hours
• Power: 750W
• 80Plus Certificate: Gold
• CircuitShield: OVP, SCP, OPP, SIP, UVP
• 20+4 pin connector: 1
• EPS connector +12V 4+4 pin: 2
• FDD connector: 1
• SATA connector: 9
• Molex connector: 3
• 6+2Pin PCIe connector: 6
• 12VHPWR Connector: 1
• Cable type: Flat
• Power supply technical data: +12V : 62A / +3.3V : 20A / +5V : 20A / -12V : 0.5A / +5VSB : 3A
• Fan dimensions: 140 x 140 x 25 mm
• Fan Bearings: Fluid Dynamic Bearings (FDB)
• Certificates: CE, FCC, RoHs
• Full modular: Yes
• ATX12V Version: 3.0
