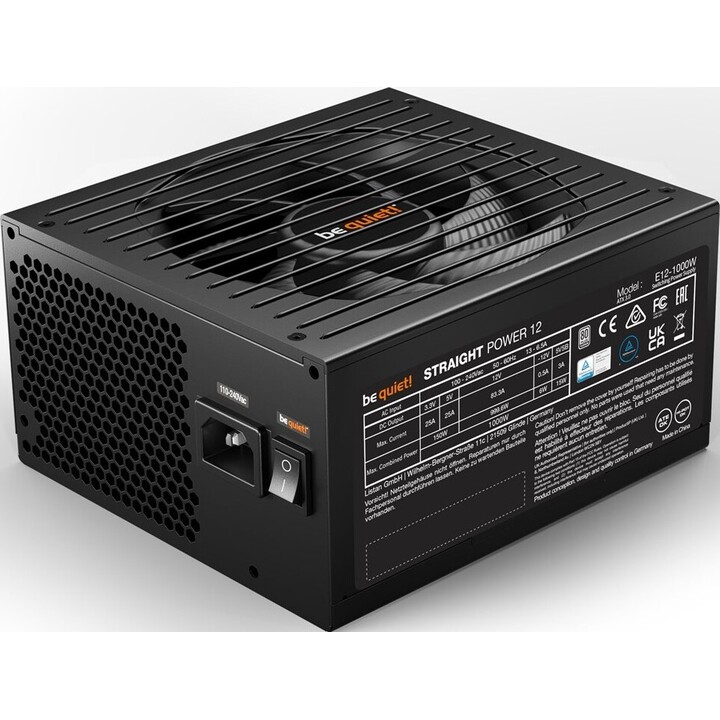

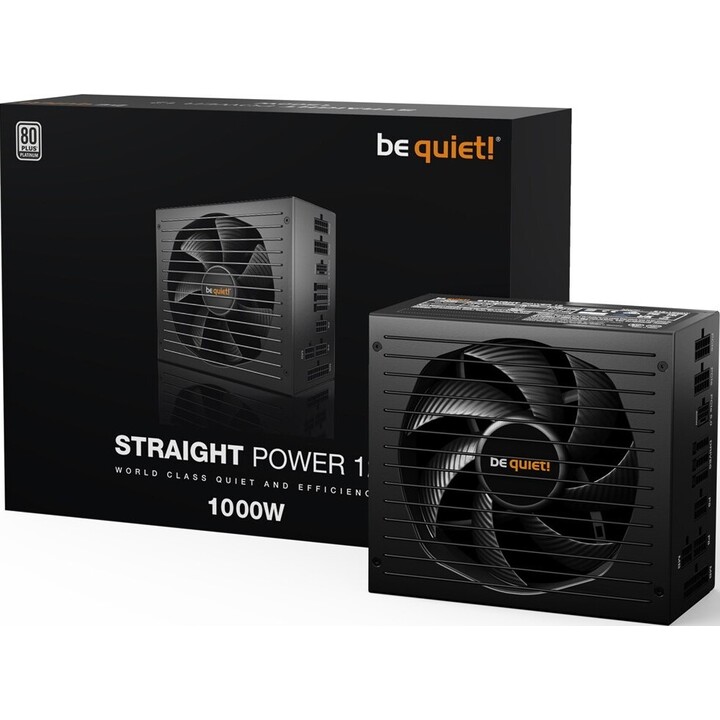

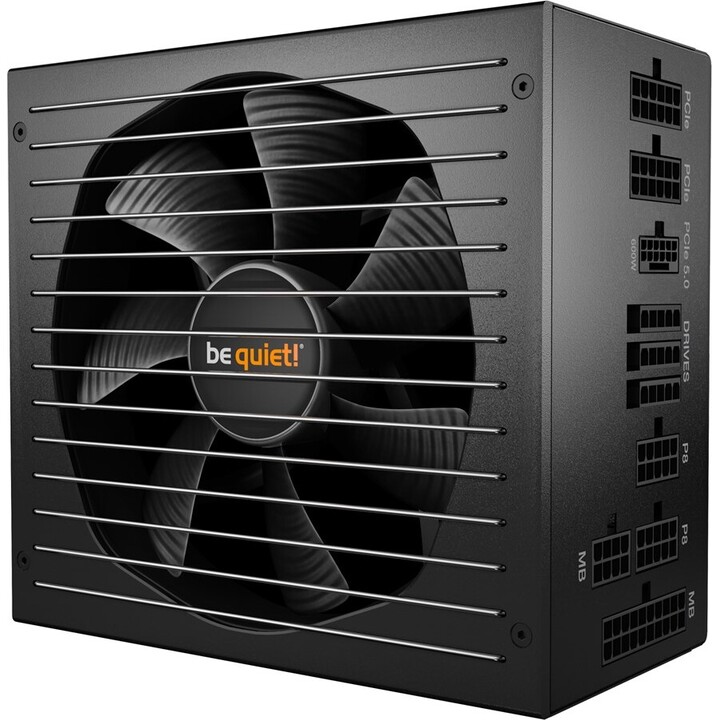

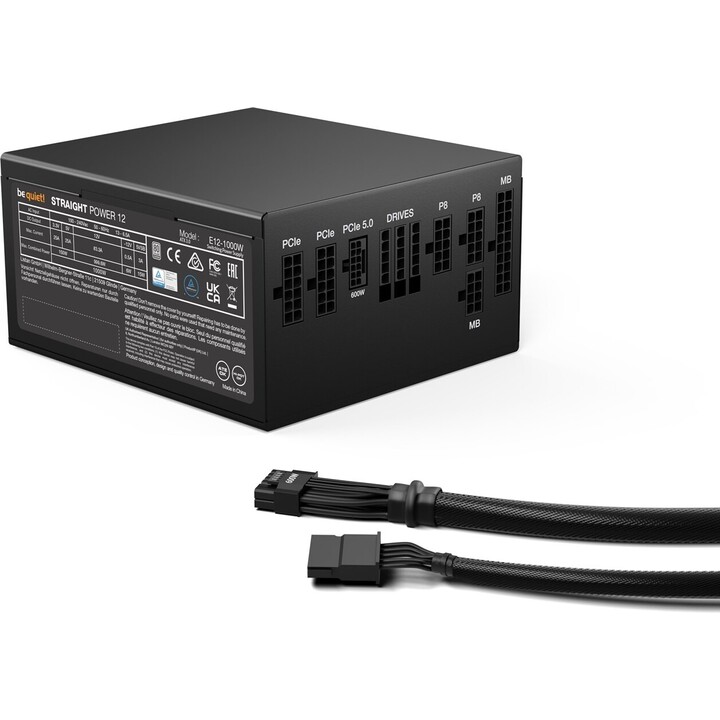

be quiet! Straight Power 12 1000W power supply black
Reference:
BN338
EAN:
4260052189436
Condition:
New
Price:
€225.10
VAT included
Without tax:
€186.03
This power controller is used to power and protect the components of a computer. It regulates the amount of energy supplied to each component and provides protection functions to prevent damage in case of overvoltage, overcurrent, overvoltage, undervoltage or overheat.
energy control
Power protection functions
Overvoltage, Overcurrent, Overvoltage, Undervoltage, Overheat
output current (+5V)
25A
Combined power (+12 V)
999.6W
Combined power (+5 V)
150W
Maximum output current (+5Vsb)
3A
Combined Power (3.3V)
150W
power factor
0.99
Maximum output current (+3.3V)
25A
output current (+12V)
83.3A
Input current
13/6.5A
maximum energy
1070W
Maximum output current (-12V)
0.5A
Total power
1000W
Wait time
25.3ms
Efficiency
91.8%
AC input frequency
50/60hz
AC input voltage
100 - 240V
Ports and Interfaces
SATA power cable length
700mm, 1000mm, 550, 850mm
Peripheral Power Cable Length (Molex)
850mm
Motherboard power cable length
60cm
EPS power connector (4+4 pin)
Yeah
PCI Express Power Cable Length
60cm
wiring type
Modular
CPU power cable length
70cm
PCI Express power connectors (16-pin)
1
PATA number of power connectors
2
PCI Express power connectors (6 + 2 pin)
4
Power supply for motherboard
20+4pin ATX
EPS power connector (8-pin)
Yeah
Number of SATA power connectors
9
Technical details
Sustainability certificates
RoHS, ErP, WEEE, US Federal Communications Commission (FCC), CE, UKCA, ENERGY STAR, Triman
Sustainability Compliance
Yeah
Warranty period
10 years)
Performance
Mean time between failure
100000hrs
Power Supply Form Factor (PSU)
ATX
80 PLUS Certification
80PLUS Platinum
EPS version
2.92
bearing technology
FDB
Noise level
28.9dB
Supported Motherboard Factor Shapes
ATX, micro ATX, mini-ATX
ATX version
3.0
use with
pc
Logistics data
Shipping Container Net Weight
22.9kg
Shipping Box Width
11"
Shipping box height
34.6cm
Quantity per shipping box
6 piece(s)
Shipping Container Length
65.1cm
Design
number of fans
1 Fan(s)
fan speed
0 - 2100RPM
fan diameter
13.5cm
cooling type
Asset
product color
Black
Integrated on/off switch
Yeah
Packaging content

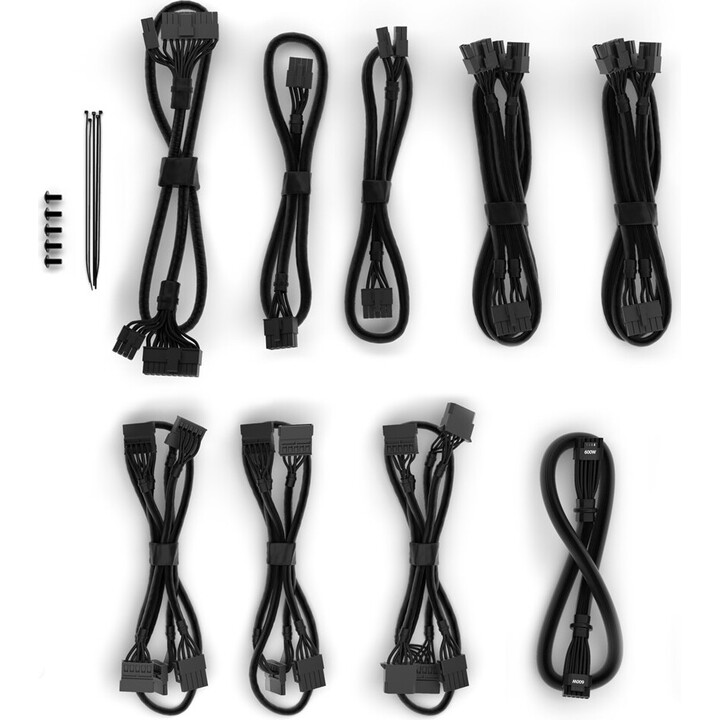

cables included
CPU, SATA
Flange(s) included
Yeah
Weight and measurements
Weight
1.85kg
Broad
150mm
Height
86mm
Depth
160mm
Packaging
package height
102mm
package weight
3.56kg
package width
248mm
packaging type
Box
Package depth
328mm
Environmental conditions
Operating temperature range
0 - 40°C
-
